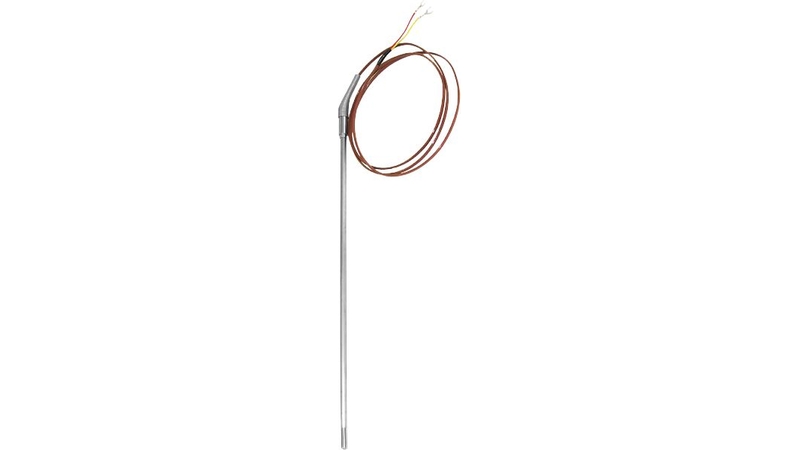

Endress+Hauser iTHERM CableLine TH52Cable probe
Endress+Hauser TH52 - Temperature - Accuracy: Standard acc. to ASTM E-230 Special acc. to ASTM E-230; Response time: 63% rt = 0.3 s; Measuring principle: Thermocouple.
This listing covers the Endress+Hauser TH52, a part number in the Temperature category. The manufacturer's published data for this part number specifies Accuracy: Standard acc. to ASTM E-230 Special acc. to ASTM E-230 and Response time: 63% rt = 0.3 s.
Type T: -270 °C ...400 °C (-454 °F ...752 °F) Type J: -210 °C ...1.200 °C (-346 °F ...2.192 °F) Type E: -270 °C ...1.000 °C (-454 °F ...1.832 °F) Type K: -270 °C ...1.372 °C (-454 °F ...2.500 °F) Type N: -270 °C ... 1.300 °C (-454 °F ...2.372 °F)
Key manufacturer data on file for this item includes Measuring principle: Thermocouple; Process Connection: compression fitting: NPT1/8" NPT1/4"; Characteristic / Application: US style cable probe process connection as compression fitting; Thermowell / protection tube: without (not intended to use with thermowell); Insert / probe: mineral insulated (MI), flexible; Outer diameter protection tube / Insert: 1/16'' (1,59 mm) 1/8'' (3,18 mm) 3/16'' (4,76 mm) 1/4'' (6,35 mm); Max. immersion length on request: up to 96" (2438 mm) others on request; Material protection tube/ thermowell: 316 Alloy 600; Optional coating: Not applicable; Tip shape: straight; Surface roughness Ra: nicht definiert; Max. process pressure (static): at 20°C: 40 bar (580 psi)' depends on configuration. See the Specifications tab on this page for the full technical table.
| Accuracy | Standard acc. to ASTM E-230 Special acc. to ASTM E-230 |
|---|---|
| Characteristic / Application | US style cable probe process connection as compression fitting |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | Not applicable |
| Material protection tube/ thermowell | 316 Alloy 600 |
| Max. immersion length on request | up to 96" (2438 mm) others on request |
| Max. process pressure (static) | at 20°C: 40 bar (580 psi)' depends on configuration |
| Measuring principle | Thermocouple |
| Operating temperature range | Type T: -270 °C ...400 °C (-454 °F ...752 °F) Type J: -210 °C ...1.200 °C (-346 °F ...2.192 °F) Type E: -270 °C ...1.000 °C (-454 °F ...1.832 °F) Type K: -270 °C ...1.372 °C (-454 °F ...2.500 °F) Type N: -270 °C ... 1.300 °C (-454 °F ...2.372 °F) |
| Optional coating | Not applicable |
| Outer diameter protection tube / Insert | 1/16'' (1,59 mm) 1/8'' (3,18 mm) 3/16'' (4,76 mm) 1/4'' (6,35 mm) |
| Process Connection | compression fitting: NPT1/8" NPT1/4" |
| Response time | 63% rt = 0.3 s |
| Surface roughness Ra | nicht definiert |
| Thermowell / protection tube | without (not intended to use with thermowell) |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TH52?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TH52?
TH52 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TH52?
Key specifications include Accuracy: Standard acc. to ASTM E-230 Special acc. to ASTM E-230; Characteristic / Application: US style cable probe process connection as compression fitting; Insert / probe: mineral insulated (MI), flexible; Integration head transmitter: Not applicable. The full specification table on this page lists every published attribute for this part.
How quickly can TH52 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

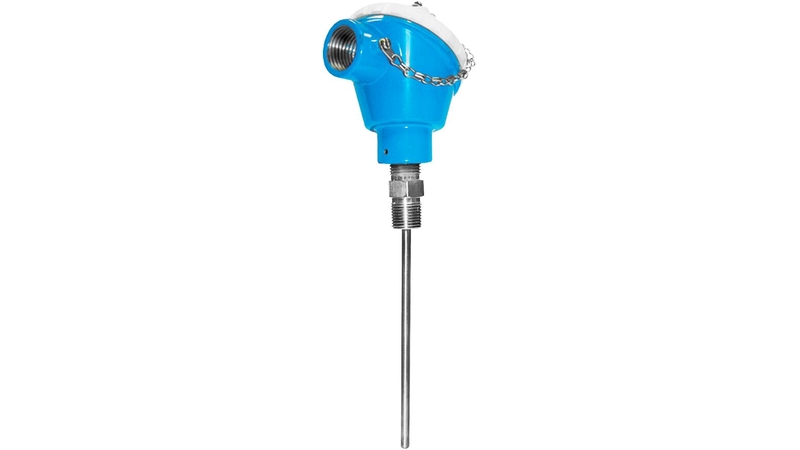

Endress+Hauser Endress+Hauser TH51Modular TC thermometer, US style
Endress+Hauser Endress+Hauser TH53Modular TC thermometer, US style

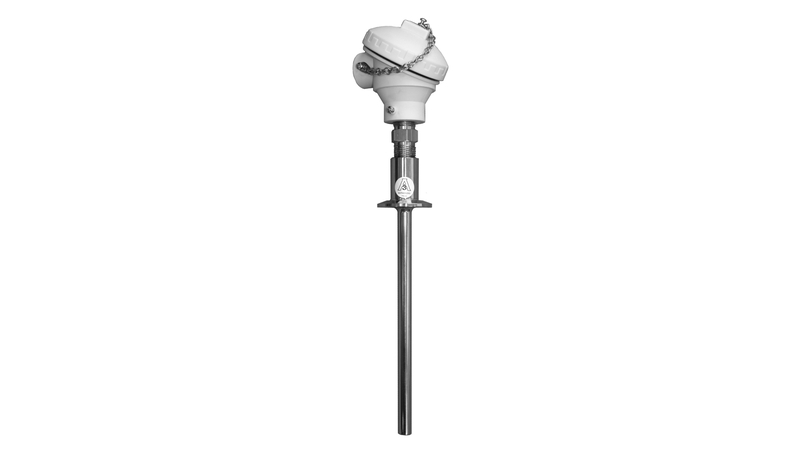

Endress+Hauser Endress+Hauser U.S. Style RTD-Assembly TH27
