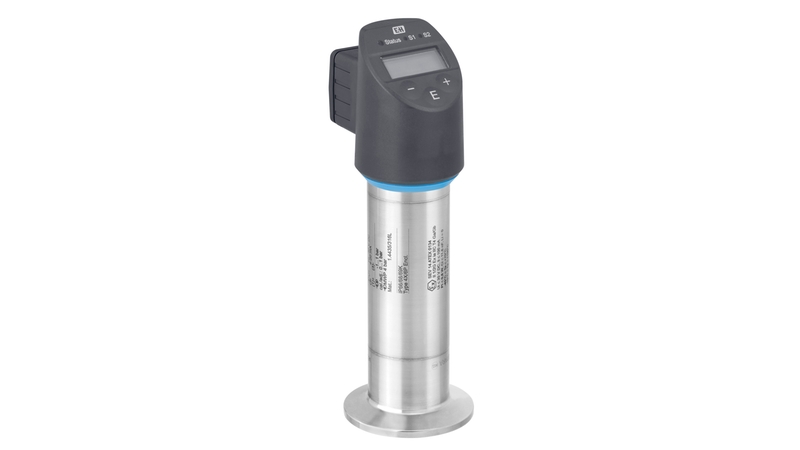

Endress+Hauser Absolute andgauge pressureCeraphant PTP33B
| Ambient temperature | -20 °C...+70 °C (-4 °F...+158 °F) |
|---|---|
| Characteristic | Intelligent pressure switch with metal diaphragm for hygienic applications, longterm stable |
| Communication | 1x PNP switch 2x PNP switch 1x PNP switch + 4...20 mA analogue |
| Design approvals | EN 10204-3.1 final inspection report, Cleaned from oil and grease, Set min alarm |
| Hygienic approvals | FDA concurring 3A, EHEDG, EG1935/2004 |
| Long term stability | 0.2 % of URL/year |
| Max. overpressure limit | 160 bar (2320 psi) |
| Measuring cell | +400 mbar....+40 bar (+6 psi....+600 psi) |
| Measuring principle | Pressure switch |
| Process Connection | Thread: M24 |
| Process connection hygienic | DIN11851, Tri Clamp, SMS, Varivent |
| Process temperature | -40 °C...+100 °C (-40 °C...+212 °F) |
| Reference Accuracy | 0.5 %, Platinum: 0.3 % |
| Specialities | Digital display, Fully welded process connections |
| Supply voltage | 10....30 VDC |
Frequently Asked Questions
How do I get pricing for PTP33B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PTP33B?
PTP33B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of PTP33B?
Key specifications include Ambient temperature: -20 °C...+70 °C (-4 °F...+158 °F); Characteristic: Intelligent pressure switch with metal diaphragm for hygienic applications, longterm stable; Communication: 1x PNP switch 2x PNP switch 1x PNP switch + 4...20 mA analogue; Design approvals: EN 10204-3.1 final inspection report, Cleaned from oil and grease, Set min alarm. The full specification table on this page lists every published attribute for this part.
How quickly can PTP33B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

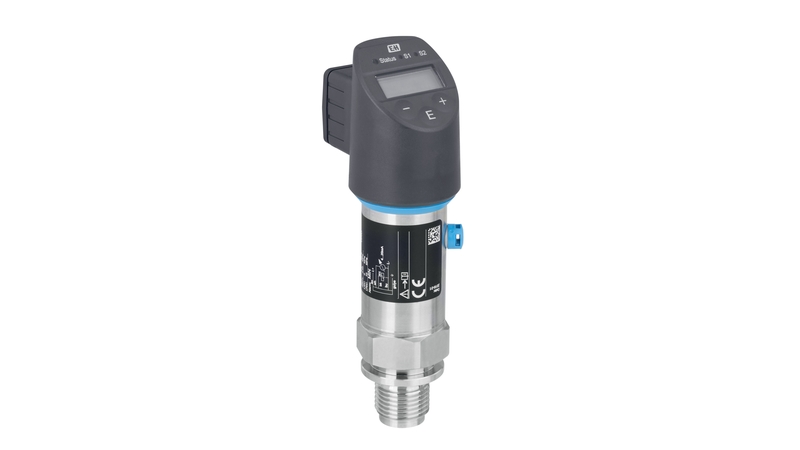

Endress+Hauser Endress+Hauser Absolute andgauge pressureCeraphant PTP31B

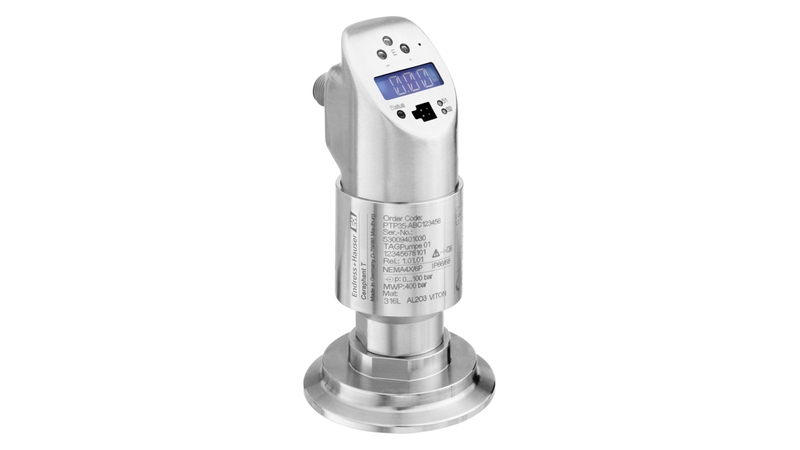

Endress+Hauser Endress+Hauser Ceraphant T PTP35

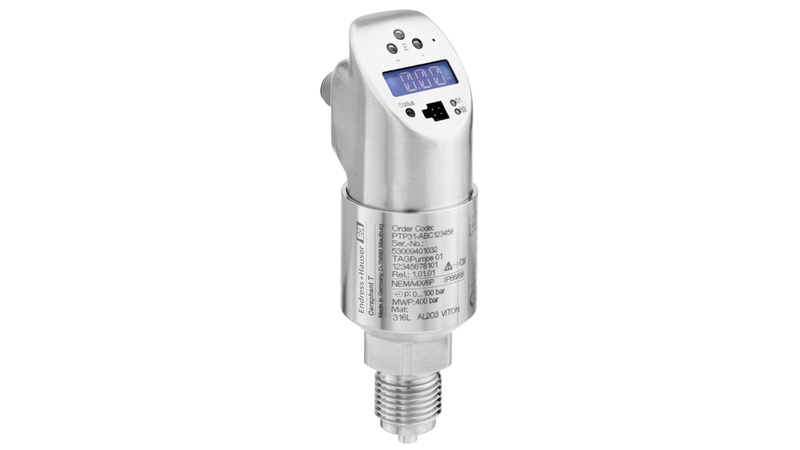

Endress+Hauser Endress+Hauser Ceraphant T PTP31

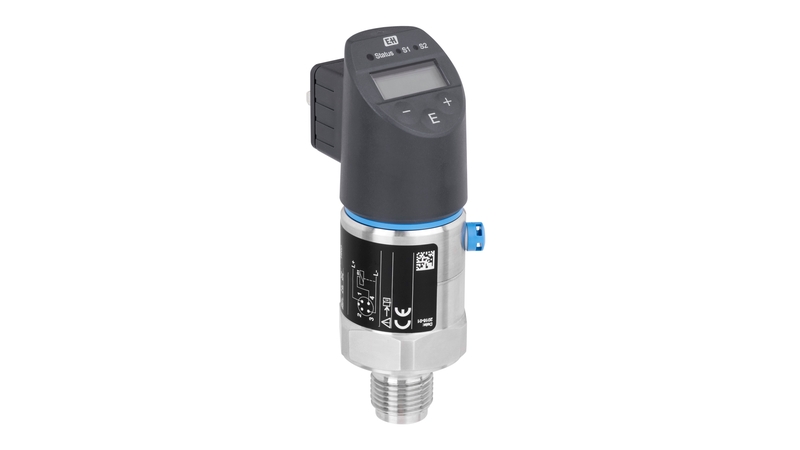

Endress+Hauser Endress+Hauser Absolute and gauge pressureCeraphant PTC31B

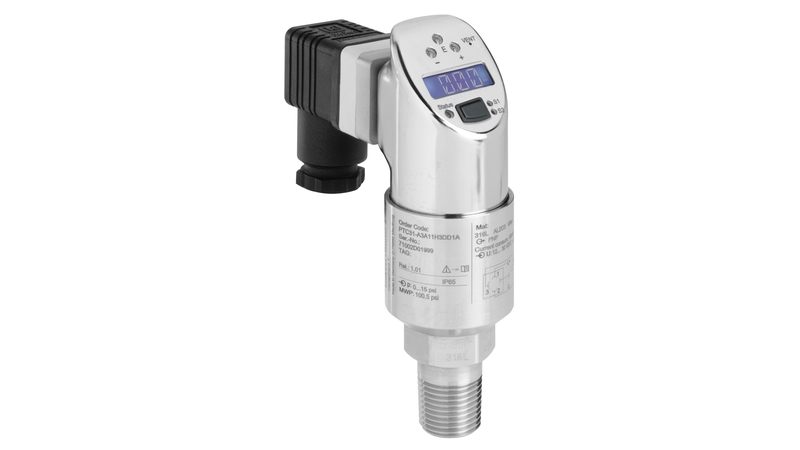

Endress+Hauser Endress+Hauser Ceraphant T PTC31
