Endress+Hauser Tankvision Inventory managementData Concentrator NXA821
| + output | Serial port for PTB printer |
|---|---|
| Application Task | Data acquisition Data management Process monitoring & visualization |
| Characteristic / Application | Data Concentrator Consolidate data from connected Tankvision NXA820. Up to 10 tank scanners can be assigned to one data concentrator (up to 150 tanks).The inbuild web server enables the user to visualize the incoming data as well as the calculated values and configure the device. |
| Communication interface | Ethernet, Seriell RS232 |
| Configuration | Web server |
| Dimensions (WxHxD) | 91 mm x 104 mm x 140 mm (3.6 in x 4.1 in x 5.5 in) |
| Field of Application | Tankvision Data Concentrator NXA821 is a device with embedded web server for installation in a cabinet. It collects data from up to 6 connected Tank Scanner NXA820 for visualization and operation of storage facilities in the Oil & Gas industry. |
| Function | Data concentrator with embedded web server for the consolidation of data of up to 6 connected Tank Scanner NXA820 |
| Input | Tankvision Tank Scanner NXA820 |
| Interfaces | Serial port for PTB printer |
| Measuring principle | Level radar |
| Memory | 128 MB |
| Monitor resolution, display | 1280 x 1024 (or better) |
| Operation | Web server |
| Power Supply | 90 - 250 V AC (50/60 Hz) 10.5 - 32 V DC |
| Relay output signal type | Potential free relay, SPDT Normally-closed when NXA is operating normally, open when NXA is powered off or fault status exists Switching power: - 25 V DC, 100 W - 250 V DC, 4 A, 1000 VA |
Frequently Asked Questions
How do I get pricing for NXA821?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the NXA821?
NXA821 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of NXA821?
Key specifications include + output: Serial port for PTB printer; Application Task: Data acquisition Data management Process monitoring & visualization; Characteristic / Application: Data Concentrator Consolidate data from connected Tankvision NXA820. Up to 10 tank scanners can be assigned to one data concentrator (up to 150 tanks).The inbuild web server enables the user to visualize the incoming data as well as the calculated values and configure the device.; Communication interface: Ethernet, Seriell RS232. The full specification table on this page lists every published attribute for this part.
How quickly can NXA821 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

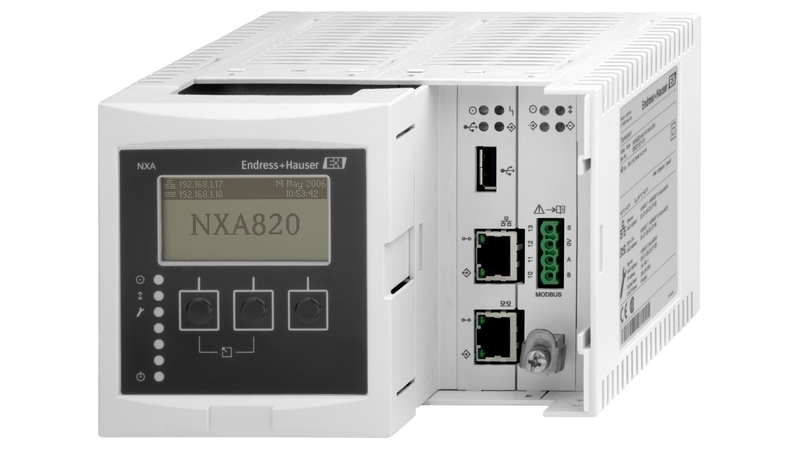

Endress+Hauser Endress+Hauser Tankvision Inventory managementTank Scanner NXA820
Endress+Hauser Endress+Hauser TankvisionInventory managementHost Link NXA822
Endress+Hauser Endress+Hauser Tankvision Inventory managementGauge Link NXA20

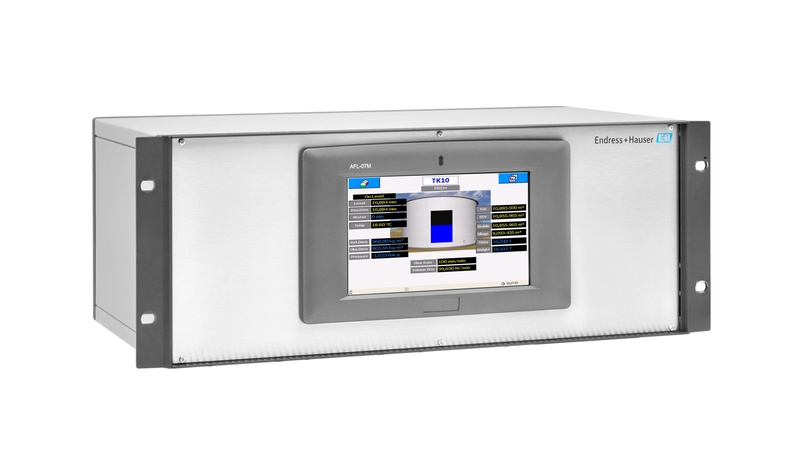

Endress+Hauser Endress+Hauser Tankvision Multi Scan NXA83B

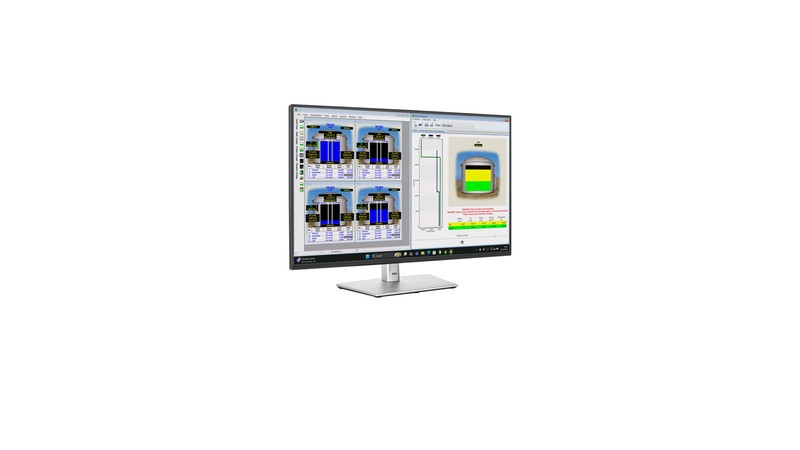

Endress+Hauser Endress+Hauser Tankvision LMS NXA86B
