Endress+Hauser Raman Rxn4 analyzer
Endress+Hauser KRXN4B - Optical analysis - Channels: Base model and Enclosure configuration: Up to four channels; Measuring principle: Raman spectroscopy; Sampling probe compatibility: Raman Rxn-10 with accessory optics Raman Rxn-40 Raman Rxn-41.
The Endress+Hauser KRXN4B is part of the Optical analysis range in our industrial catalog. The manufacturer's published data for this part number specifies Channels: Base model and Enclosure configuration: Up to four channels and Measuring principle: Raman spectroscopy.
Base model: 28.5 kg / 63 lb Enclosure configuration: 185.5 kg / 409 lb (with optional trolley)
Key manufacturer data on file for this item includes Sampling probe compatibility: Raman Rxn-10 with accessory optics Raman Rxn-40 Raman Rxn-41; Laser wavelength: Base model: 532 nm Enclosure configuration: 532 nm; Spectral coverage: Base Model and Enclosure configuration 532 nm: 150-4350 cm-1; Spectral resolution: Base model and Enclosure configuration (average): 5 cm-1 (532 nm); Warm up time (minutes): Base model: 120 Enclosure configuration: 240; Automation interface: OPC Modbus HTTPS (contact us for other options). See the Specifications tab on this page for the full technical table.
| Ambient temperature | Base model: Operating: 5 to 35 °C / 41 to 95 °F Storage: -15 to 50 °C / 5 to 122 °F Enclosure configuration: Operating: 5 to 50 °C / 41 to 122 °F Storage: -15 to 50 °C / 5 to 122 °F |
|---|---|
| Automation interface | OPC Modbus HTTPS (contact us for other options) |
| Channels | Base model and Enclosure configuration: Up to four channels |
| Hazardous area certifications | Base model and Hybrid: ATEX, CSA, IECEx, UKCA, JPEx Enclosure configuration: Call support for options |
| Input Voltage | Base model: 100-240 V, 50-60 Hz, ±10% Enclosure configuration: 120 V ±10%, 60 Hz -OR- 230 V ±10%, 50/60 Hz |
| Installation options | Base model and Hybrid: 19-inch rack package Enclosure configuration: NEMA 4X enclosure; wall-mountable, moblile trolley, or fixed stand |
| Laser wavelength | Base model: 532 nm Enclosure configuration: 532 nm |
| Measuring principle | Raman spectroscopy |
| Power consumption [W] | Base model: 400 (max) 250 (typical start-up) 120 (typical running) Enclosure configuration: 1560 (max) 1560 (typical start-up) 750 (typical running) |
| Relative Humidity | Base model and hybrid: 20 to 80 %, non-condensing Enclosure configuration: Up to 80 % for temperature range 5 to 31 °C (41 to 87.8 °F), decreasing linearly to 20 % at 50 °C (122 °F) |
| Sampling probe compatibility | Raman Rxn-10 with accessory optics Raman Rxn-40 Raman Rxn-41 |
| Spectral coverage | Base Model and Enclosure configuration 532 nm: 150-4350 cm-1 |
| Spectral resolution | Base model and Enclosure configuration (average): 5 cm-1 (532 nm) |
| Unit dimensions (width x height x depth) | Base model and Hybrid: 483 x 267 x 556 mm 19.02 x 10.52 x 21.89 inch Enclosure configuration: (with optional trolley) 1175 x 1480 x 826 mm 46.26 x 58.27 x 32.52 inch |
| Warm up time (minutes) | Base model: 120 Enclosure configuration: 240 |
| Weight | Base model: 28.5 kg / 63 lb Enclosure configuration: 185.5 kg / 409 lb (with optional trolley) |
Frequently Asked Questions
How do I get pricing for KRXN4B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the KRXN4B?
KRXN4B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of KRXN4B?
Key specifications include Ambient temperature: Base model: Operating: 5 to 35 °C / 41 to 95 °F Storage: -15 to 50 °C / 5 to 122 °F Enclosure configuration: Operating: 5 to 50 °C / 41 to 122 °F Storage: -15 to 50 °C / 5 to 122 °F; Automation interface: OPC Modbus HTTPS (contact us for other options); Channels: Base model and Enclosure configuration: Up to four channels; Hazardous area certifications: Base model and Hybrid: ATEX, CSA, IECEx, UKCA, JPEx Enclosure configuration: Call support for options. The full specification table on this page lists every published attribute for this part.
How quickly can KRXN4B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Raman Rxn2 analyzer

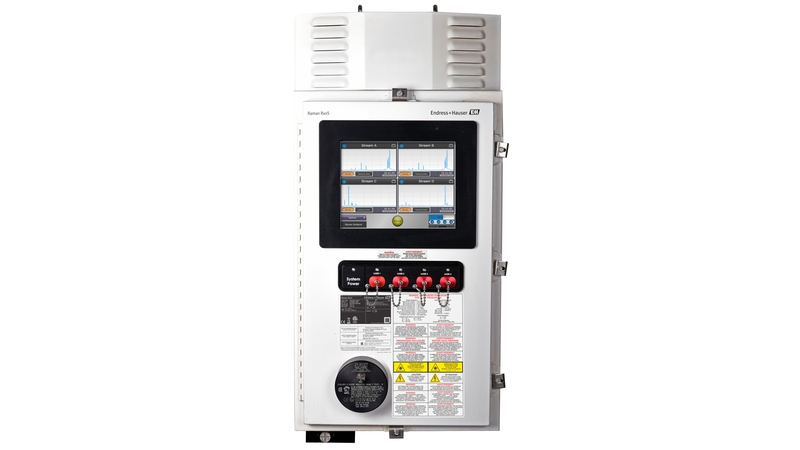

Endress+Hauser Endress+Hauser Raman Rxn5 process analyzer
