Endress+Hauser Raman calibration accessory
Endress+Hauser KHCA1 - Optical analysis - Weight: Control Unit: 1.60 kg / 3.53 lb Lamp head: 0.10 kg / 0.23 lb; Measuring principle: Raman spectroscopy; Spectral intensity reference: Tungsten-halogen.
Endress+Hauser KHCA1 is a Optical analysis catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Weight: Control Unit: 1.60 kg / 3.53 lb Lamp head: 0.10 kg / 0.23 lb and Measuring principle: Raman spectroscopy.
Control unit: 212 x 270 x 43 mm 8.35 x 10.63 x 1.70 inch Lamp head: 50 x 80 x 19 mm 1.97 x 3.15 x .75 inch
Published specifications for this part include Spectral intensity reference: Tungsten-halogen; Spectral intensity output repeatability (over any 4000 cm-1 spectrum): Short Term: 2% Over 100 hours: 2.65%. See the Specifications tab on this page for the full technical table.
| Adapter options | Lamp housing adapters for noncontact sampling optics, immersion optics, and fiber optic cables are available as options. |
|---|---|
| Electrical data | Power Source: 100–240 VAC 50/60 Hz Power Consumption: 22 W Maximum CE Certified: Yes |
| Measuring principle | Raman spectroscopy |
| Sampling probe compatibility | Raman Rxn-10 (with accessory optics) Raman Rxn-20 (with accessory optics) Raman Rxn-40 Raman Rxn-41 Raman Rxn-45 |
| Spectral intensity calibration range | HCA-532: 534.5 to 694.0 nm HCA-785: 790.7 to 1074.5 nm HCA-1000: 1012.6 to 1304.6 nm |
| Spectral intensity output repeatability (over any 4000 cm-1 spectrum) | Short Term: 2% Over 100 hours: 2.65% |
| Spectral intensity reference | Tungsten-halogen |
| Unit dimensions (width x height x depth) | Control unit: 212 x 270 x 43 mm 8.35 x 10.63 x 1.70 inch Lamp head: 50 x 80 x 19 mm 1.97 x 3.15 x .75 inch |
| Weight | Control Unit: 1.60 kg / 3.53 lb Lamp head: 0.10 kg / 0.23 lb |
Frequently Asked Questions
How do I get pricing for KHCA1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the KHCA1?
KHCA1 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of KHCA1?
Key specifications include Adapter options: Lamp housing adapters for noncontact sampling optics, immersion optics, and fiber optic cables are available as options.; Electrical data: Power Source: 100–240 VAC 50/60 Hz Power Consumption: 22 W Maximum CE Certified: Yes; Measuring principle: Raman spectroscopy; Sampling probe compatibility: Raman Rxn-10 (with accessory optics) Raman Rxn-20 (with accessory optics) Raman Rxn-40 Raman Rxn-41 Raman Rxn-45. The full specification table on this page lists every published attribute for this part.
How quickly can KHCA1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser KFOC1B Raman fiber-optic cable
Endress+Hauser Endress+Hauser Raman immersion optic

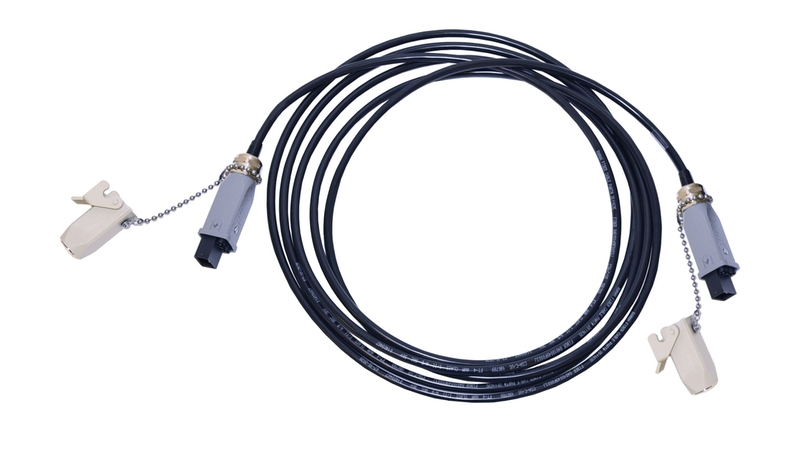

Endress+Hauser Endress+Hauser KFOC1 Raman fiber-optic cable
