Endress+Hauser GMS800 emission monitoring solution
Endress+Hauser IGMS800 - Optical analysis - Degree of protection: IP65; Product safety: CE; Ambient temperature range: +5 °C ... +45 °C.
This listing covers the Endress+Hauser IGMS800, a part number in the Optical analysis category. The manufacturer's published data for this part number specifies Degree of protection: IP65 and Product safety: CE.
NDUV spectroscopy, UVRA spectroscopy,NDIR spectroscopy,Electrochemical cell,Paramagnetic dumbbell principle,Thermal conductivity measurement
Key manufacturer data on file for this item includes Ambient temperature range: +5 °C ... +45 °C; Performance-tested measurands: CH4, CO, CO2, NO, NO2, O2, SO2, N2O; Ambient humidity: ≤ 95 % Relative humidity; non-condensing. The complete technical table is shown in the Specifications tab on this page.
| Ambient humidity | ≤ 95 % Relative humidity; non-condensing |
|---|---|
| Ambient temperature range | +5 °C ... +45 °C |
| Degree of protection | IP65 |
| Hazardous area approvals | GMS820P: IECEx: Ex db eb [ia] IIC T6 ATEX: II 2G Ex db eb [ia] IIC T6 Gb II 2G Ex db eb IIC T6 Gb GMS84x: IECEx: GMS841: Ex nA nC IIC T4 Gc GMS841: Ex nA nC [ia Ga] IIC T4 Gc ATEX: GMS841: II 3G Ex nA nC IIC T4 Gc GMS841: II 3G Ex nA nC [ia Ga] IIC T4 Gc NEC/CEC (US/CA): GMS842: Class I, Division 2, Groups A, B, C and D; T4 GMS842: Ex nA nC IIC T4 Gc GMS842: Ex nA nC [ia Ga] IIC T4 Gc GMS842: Class I, Zone 2 AEx nA nC IIC T4 Gc GMS842: Class I, Zone 2 AEx nA nC [ia Ga] IIC T4 Gc |
| Measured variables | CH4, CO, CO2, H2, H2O, He, N2O, NH3, NO, NO2, O2, SO2 Hydrocarbons (e.g. C2H2), halogenated hydrocarbons (e.g. CH2Cl2) and other gases upon request |
| Measuring principle | NDUV spectroscopy, UVRA spectroscopy,NDIR spectroscopy,Electrochemical cell,Paramagnetic dumbbell principle,Thermal conductivity measurement |
| Performance-tested measurands | CH4, CO, CO2, NO, NO2, O2, SO2, N2O |
| Product safety | CE |
Frequently Asked Questions
How do I get pricing for IGMS800?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IGMS800?
IGMS800 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IGMS800?
Key specifications include Ambient humidity: ≤ 95 % Relative humidity; non-condensing; Ambient temperature range: +5 °C ... +45 °C; Degree of protection: IP65; Hazardous area approvals: GMS820P: IECEx: Ex db eb [ia] IIC T6 ATEX: II 2G Ex db eb [ia] IIC T6 Gb II 2G Ex db eb IIC T6 Gb GMS84x: IECEx: GMS841: Ex nA nC IIC T4 Gc GMS841: Ex nA nC [ia Ga] IIC T4 Gc ATEX: GMS841: II 3G Ex nA nC IIC T4 Gc GMS841: II 3G Ex nA nC [ia Ga] IIC T4 Gc NEC/CEC (US/CA): GMS842: Class I, Division 2, Groups A, B, C and D; T4 GMS842: Ex nA nC IIC T4 Gc GMS842: Ex nA nC [ia Ga] IIC T4 Gc GMS842: Class I, Zone 2 AEx nA nC IIC T4 Gc GMS842: Class I, Zone 2 AEx nA nC [ia Ga] IIC T4 Gc. The full specification table on this page lists every published attribute for this part.
How quickly can IGMS800 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser GM901 process gas analyzer
Endress+Hauser Endress+Hauser PowerCEMS100 emission monitoring solution

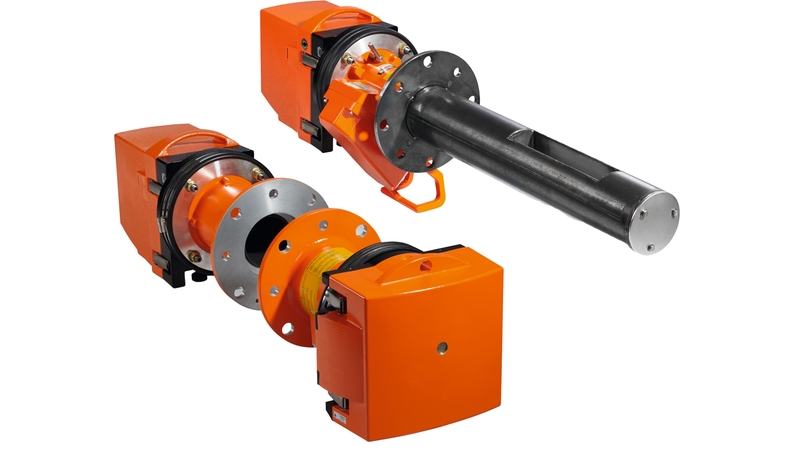

Endress+Hauser Endress+Hauser GM700 emission monitoring solution
