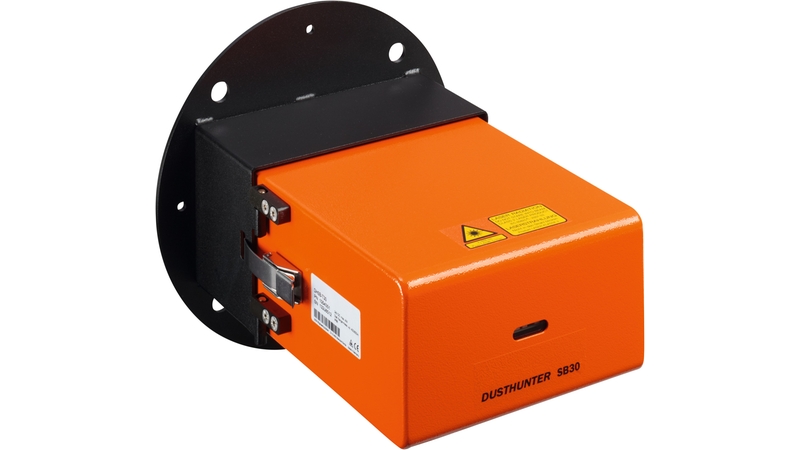

Endress+Hauser DUSTHUNTER SB30 particle measuring device
Endress+Hauser IDSB30 - Optical analysis - Degree of protection: IP66; Measuring principle: Scattered light backward; Product safety: CE.
The Endress+Hauser IDSB30 is part of the Optical analysis range in our industrial catalog. The manufacturer's published data for this part number specifies Degree of protection: IP66 and Measuring principle: Scattered light backward.
Scattered light intensity: 0 ... 7.5 SI / 0 ... 3,000 SI Two freely configurable measuring ranges via SOPAS ET Nine preset measuring ranges (0 ... 7.5/15/45/75/150/225/375/1,000/3,000 SI)
The specification set recorded for this part number covers Product safety: CE; Process temperature: –40 °C ... +600 °C; Ambient temperature range: –40 °C ... +60 °C; Conformities: TUEV type-examination China's EPA compliant DNV Maritime type approval. See the Specifications tab on this page for the full technical table.
| Ambient temperature range | –40 °C ... +60 °C |
|---|---|
| Conformities | TUEV type-examination China's EPA compliant DNV Maritime type approval |
| Degree of protection | IP66 |
| Measured variables | Scattered light intensity, dust concentration (after gravimetric comparison measurement) |
| Measuring principle | Scattered light backward |
| Measuring range | Scattered light intensity: 0 ... 7.5 SI / 0 ... 3,000 SI Two freely configurable measuring ranges via SOPAS ET Nine preset measuring ranges (0 ... 7.5/15/45/75/150/225/375/1,000/3,000 SI) |
| Process pressure | With MCU-P control unit: –50 hPa ... 2 hPa With external purge air unit: –50 hPa ... 30 hPa |
| Process temperature | –40 °C ... +600 °C |
| Product safety | CE |
Frequently Asked Questions
How do I get pricing for IDSB30?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IDSB30?
IDSB30 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IDSB30?
Key specifications include Ambient temperature range: –40 °C ... +60 °C; Conformities: TUEV type-examination China's EPA compliant DNV Maritime type approval; Degree of protection: IP66; Measured variables: Scattered light intensity, dust concentration (after gravimetric comparison measurement). The full specification table on this page lists every published attribute for this part.
How quickly can IDSB30 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
