Endress+Hauser Microwave flow indicator Solimotion FTR16
| Ambient temperature | -20 °C ... +60 °C (-4 °F ... +140 °F) |
|---|---|
| Application limits | Solid weight: < 10 g/l |
| Certificates / Approvals | ATEX, IEC Ex |
| Characteristic / Application | Flow indicator for bulk solids Non-contact motion detection (movement / no movement) of pneumatically or mechanically conveyed bulk solids of all kinds, also in potentially explosive atmospheres (dust Ex) |
| Communication | 3-wire-DC-PNP, 2 DC-PNP-outputs |
| Design approvals | EN10204-3.1 |
| Hygienic approvals | EG1935/2004 |
| Main wetted parts | Non-contact installation: no wetted parts Contact installation: 316L, PTFE |
| Measuring principle | Microwave barrier |
| Min. density of medium | Solid weight: > 10 g/l |
| Options | Mounting bracket Counternut Welding sleeve Connection cable Connecting cable High-pressure adapter High-temperature adapter Extension for HT adapter Mounting flange Sight glass fitting FAR50, FAR51, FAR52, FAR54 |
| Process Connection | ISO228-1: G1", G1-1/2" ASME: NPT1-1/2" |
| Process connection hygienic | Non-contact installation |
| Process pressure / max. overpressure limit | Non-contact installation: any Within installation: 0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs. With high pressure adapter: up to +21 bar (+305 psi) abs. |
| Process temperature | Non-contact installation: any Within installation: -20°C ... +60°C (-4°F ... +140°F) With high temperature adapter: up to +450°C (+842°F) |
| Specialities | Detection range: max. 5 m Detectable velocity: 0.09 m/s ... 62 m/s |
| Supply / Communication | 18 V ... 30 V DC, Plug M12 |
Frequently Asked Questions
How do I get pricing for FTR16?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FTR16?
FTR16 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FTR16?
Key specifications include Ambient temperature: -20 °C ... +60 °C (-4 °F ... +140 °F); Application limits: Solid weight: < 10 g/l; Certificates / Approvals: ATEX, IEC Ex; Characteristic / Application: Flow indicator for bulk solids Non-contact motion detection (movement / no movement) of pneumatically or mechanically conveyed bulk solids of all kinds, also in potentially explosive atmospheres (dust Ex). The full specification table on this page lists every published attribute for this part.
How quickly can FTR16 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser VibronicPoint level detectionSoliphant FTM52
Endress+Hauser Endress+Hauser Microwave flow indicatorSolimotion FTR20
Endress+Hauser Endress+Hauser Nivotester FTR325

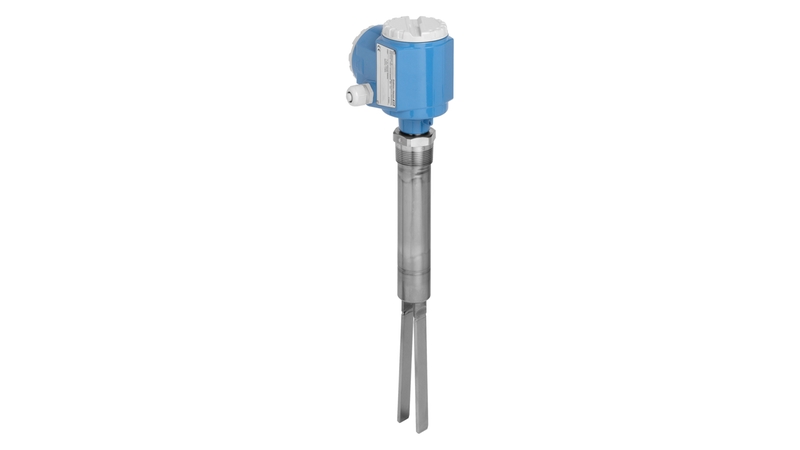

Endress+Hauser Endress+Hauser VibronicPoint level detectionSoliphant FTM51
