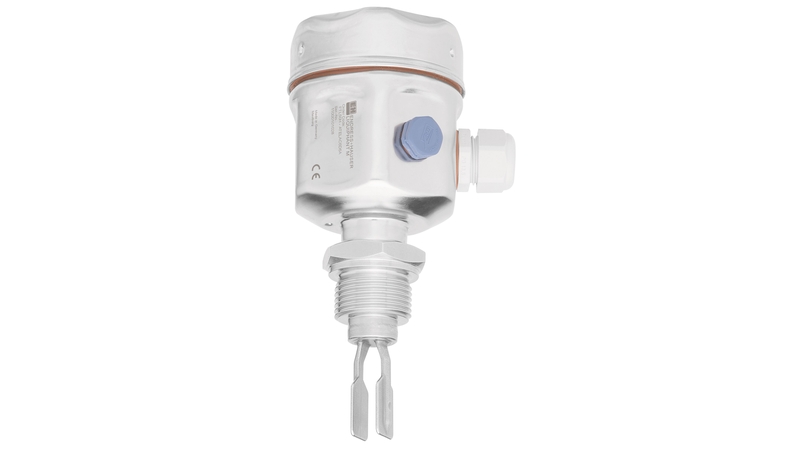

Endress+Hauser Vibronic Point level detectionLiquiphant FTL50H
| + output | Pulse |
|---|---|
| Ambient temperature | -40 °C...70 °C (-40...158 °F) |
| Certificates / Approvals | ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI |
| Characteristic / Application | Premium device for density measurement in hygienic/aseptic applications. Focus Food & Beverage and Life Sciences. Compact sensor version. Modular housing or completely welded compact housing. Wide range of certificates. |
| Communication | PROFIBUS PA |
| Components | Density Computer FML621 |
| Design approvals | Inspection certificate 3.1, EN10204, CoC ASME BPE, Conformity to cGMP, EU Food Contact Material (EC) 1935/2004, US Food Contact Material FDA CFR 21, CN Food Contact Material GB 4806, Declaration of Conformity ASME B31.3, AD2000, CRN approval |
| Hygienic | 3A EHEDG |
| Hygienic approvals | 3-A, EHEDG, CoC-ASME BPE |
| Main wetted parts | 316L |
| Marine approval | GL/ ABS/ DNV |
| Measuring principle | Vibration Density |
| Min. density of medium | 0.5g/cm³ (0.4g/cm³ optional) |
| Options | Customized settings (Density) |
| Process Connection | Threads (for weld-in adapter): G3/4A, G1A. Flange: DN25...DN100 ASME 1"...4", JIS 25A...100A |
| Process connection hygienic | Tri-Clamp, DIN 11851, DIN11864-1 Ingold, Flush mount, DRD, SMS1145, Varivent (Varinline) |
| Process pressure | 0...25 bar (0…362 psi) |
| Process pressure / max. overpressure limit | Vacuum...64 bar (Vacuum...928 psi) |
| Process temperature | 0...80 °C (32…176 °F) |
| Safety approvals | Overfill protection WHG, SIL 2/ SIL 3 |
| Sensor length | Compact sensor |
| Specialities | Density/Concentration measurement in combination with density controller FML621, Surface finish: mechanical polished (up to 0.3 µm) |
| Successor | FTL63 |
| Supply / Communication | via density controller FML621 |
| Wetted parts | 316L |
Frequently Asked Questions
How do I get pricing for FTL50H?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FTL50H?
FTL50H is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FTL50H?
Key specifications include + output: Pulse; Ambient temperature: -40 °C...70 °C (-40...158 °F); Certificates / Approvals: ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI; Characteristic / Application: Premium device for density measurement in hygienic/aseptic applications. Focus Food & Beverage and Life Sciences. Compact sensor version. Modular housing or completely welded compact housing. Wide range of certificates.. The full specification table on this page lists every published attribute for this part.
How quickly can FTL50H ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
