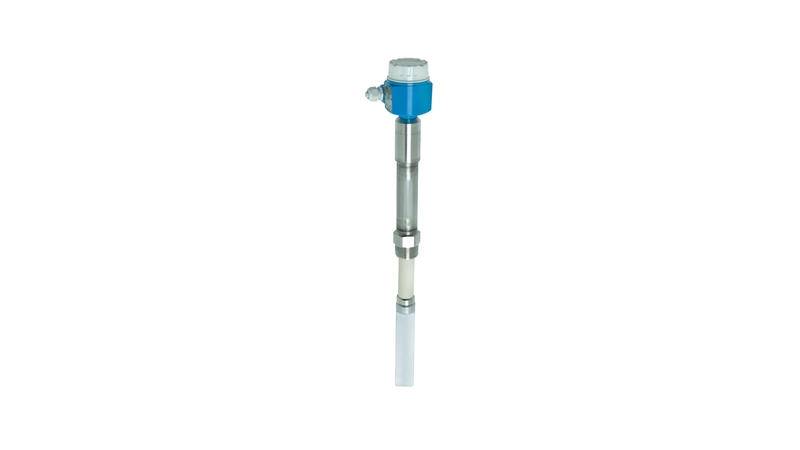

Endress+Hauser CapacitancePoint level detectionSolicap FTI77
| Ambient temperature | -50°C ... 70°C (-58°F ... 158°F) |
|---|---|
| Application limits | DK min. 2.5 |
| Certificates / Approvals | ATEX, FM, CSA, IEC Ex, EAC |
| Characteristic / Application | Partly isolated sword probe / rope probe for very high temperatures High mech. lateral load |
| Communication | 2- wire 19-253 VAC DC PNP Relais DPDT PFM 3-wire 8/16 mA |
| Components | PFM: FTC325, FTC625, FTC470Z, FTC471Z 3-wire: FTC325 |
| Design approvals | EN 10204-3.1 |
| Main wetted parts | Ceramic, 316L, Steel |
| Max. tensile strength | Rope: 20 kN |
| Measuring principle | Capacitive Solid |
| Process Connection | Thread R1 1/2, NPT1 1/2 Flanges DN/ASME/JIS |
| Process pressure / max. overpressure limit | Vacuum ... 10 bar (Vacuum ... 145 psi) |
| Process temperature | -50°C ... 400°C (-58°F ... 752°F) |
| Safety approvals | SIL |
| Sensor length | Rope: 0.5 ... 20m (1.6 ... 65ft) Sword: 0.2m ... 1m (0.6 ... 3.3ft) Inactive length: 0.1m ... 1m (0.3 ... 3.3ft) |
| Specialities | Inactive length Active build-up compensation High lateral loading Extremely robust probe |
| Supply / Communication | 19 ... 253V AC 10 ... 55V DC-PNP 19...253V AC bzw 10...55V DC 8/16mA, 11 ... 36V DC PFM 3-wire |
Frequently Asked Questions
How do I get pricing for FTI77?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FTI77?
FTI77 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FTI77?
Key specifications include Ambient temperature: -50°C ... 70°C (-58°F ... 158°F); Application limits: DK min. 2.5; Certificates / Approvals: ATEX, FM, CSA, IEC Ex, EAC; Characteristic / Application: Partly isolated sword probe / rope probe for very high temperatures High mech. lateral load. The full specification table on this page lists every published attribute for this part.
How quickly can FTI77 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser CapacitancePoint level detectionSolicap FTI56
Endress+Hauser Endress+Hauser Liquiphant T FTL20
Endress+Hauser Endress+Hauser Liquiphant T FTL20H

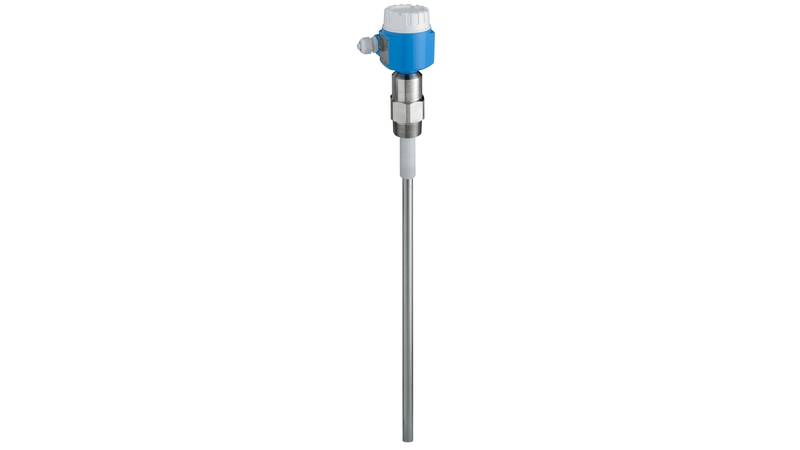

Endress+Hauser Endress+Hauser CapacitancePoint level detectionSolicap FTI55
