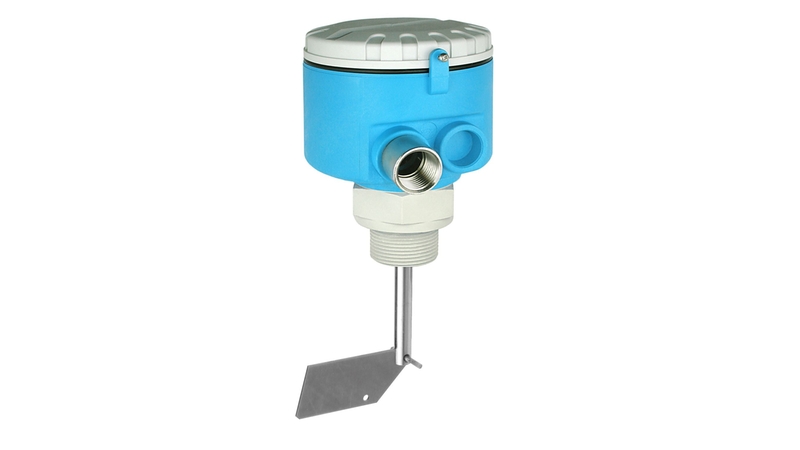

Endress+Hauser Soliswitch FTE31
| Ambient temperature | -20 °C ... 60 °C (-4 °F ... 140 °F) |
|---|---|
| Application limits | max. grain size 50 mm (2") |
| Certificates / Approvals | FM DIP Cl.II,III, Div.1 Gr.EFG CSA DIP Cl. II,III, Div.1, Gr.EFG |
| Characteristic / Application | universally applicable as a full, empty and demand alarm on silos containing solids |
| Communication | Relay |
| Main wetted parts | Shaft: 1.4435 Paddle: 1.4435 |
| Measuring principle | Paddle |
| Min. density of medium | >= 100 g/l |
| Process Connection | Threaded boss - thread NPT 1 1/4" or NPT 1 1/2" |
| Process pressure / max. overpressure limit | 0.5 bar to 1.5 bar (7 psi to 22 psi) |
| Process temperature | -20 °C ... 80 °C (-4 °F ... 170 °F) |
| Sensor length | Standard: 75 mm (3") 100 mm (4") 200 mm (8") 300 mm (12") 400 mm (16") 500 mm (20") 600 mm (24") |
| Specialities | Hinged paddle for retro-fitting |
| Supply / Communication | 230V 50/60 Hz 115V 50/60 Hz 48V 50/60 Hz 24V 50/60 Hz 20 to 28 VDC |
Frequently Asked Questions
How do I get pricing for FTE31?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FTE31?
FTE31 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FTE31?
Key specifications include Ambient temperature: -20 °C ... 60 °C (-4 °F ... 140 °F); Application limits: max. grain size 50 mm (2"); Certificates / Approvals: FM DIP Cl.II,III, Div.1 Gr.EFG CSA DIP Cl. II,III, Div.1, Gr.EFG; Characteristic / Application: universally applicable as a full, empty and demand alarm on silos containing solids. The full specification table on this page lists every published attribute for this part.
How quickly can FTE31 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

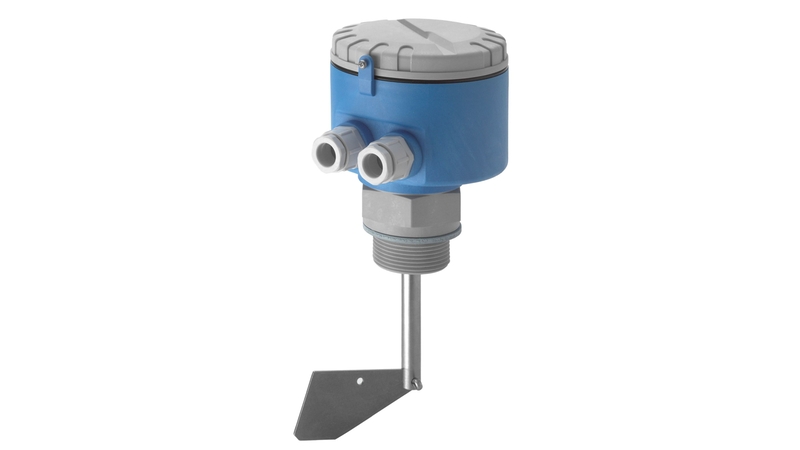

Endress+Hauser Endress+Hauser Soliswitch FTE30

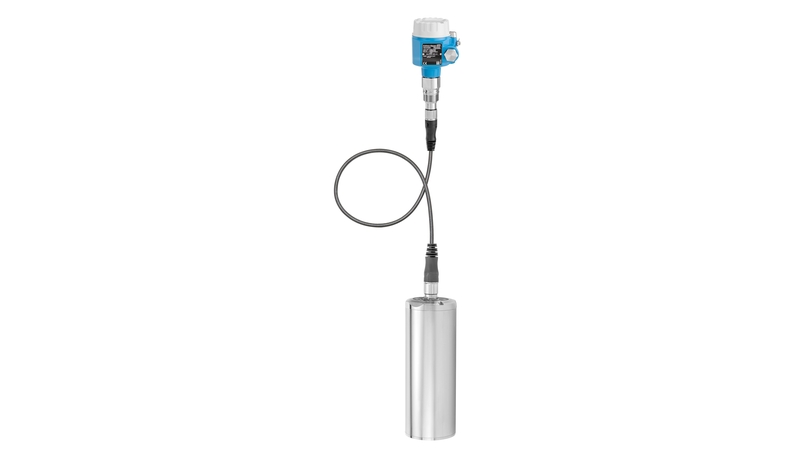

Endress+Hauser Endress+Hauser RadiometricPoint level detectionGammapilot FTG20
Endress+Hauser Endress+Hauser CapacitancePoint level detectionNivector FTI26
Endress+Hauser Endress+Hauser Soliswitch FTE20 rotary paddle point level switch

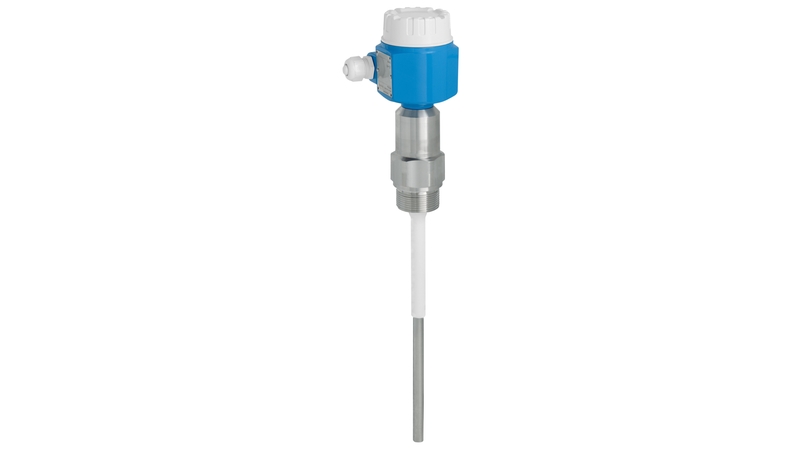

Endress+Hauser Endress+Hauser CapacitancePoint level detection Liquicap FTI51
