Endress+Hauser Microwave barrier transmitterSoliwave FQR57
| Ambient temperature | -40°C...+70°C (-40°F...+158°F) |
|---|---|
| Application limits | Solid weight: < 10 g/l |
| Certificates / Approvals | ATEX, IEC Ex |
| Characteristic / Application | Transmitter Non-contact point level detection and flow monitoring Detecting, counting and positioning of objects Monitoring of material transfer points Detection and analysis of deposits and contamination Non-contact installation: Waves emitted from outside Within installation: Waves emitted within installation (contact) |
| Communication | Via process transmitter with control unit Nivotester FTR525 |
| Components | Transceiver: FDR57 Process transmitter: FTR525 |
| Design approvals | EN10204-3.1 |
| Main wetted parts | Non-contact installation: No wetted parts Within installation: 316Ti, PTFE or Ceramic |
| Measuring principle | Microwave barrier |
| Min. density of medium | Solid weight: > 10 g/l |
| Options | Sight glass High temperature adapter High pressure adapter Installation bracket FAR50, FAR51, FAR52, FAR53, FAR54, FAR55 |
| Process Connection | Threads: 1-1/2" R, 1-1/2" G, 1-1/2" NPT |
| Process pressure / max. overpressure limit | Non-contact installation: any Within installation: 0.5 bar...6.8 bar (7.2 psi ... 99 psi) abs. With high pressure adapter: up to +21 bar (+305 psi) abs. |
| Process temperature | Non-contact installation: any Within installation: -40°C...+70°C (-40°F...+158°F) With high temperature adapter: up to +450°C (+842°F) |
| Specialities | With optional integrated bulk flow monitoring Parallel mode with up to 5 channels Detection range limit: max. 100 m Detection range flow: max. 10 m, depending on bulk solids |
| Supply / Communication | Via process transmitter with control unit Nivotester FTR525 |
Frequently Asked Questions
How do I get pricing for FQR57?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FQR57?
FQR57 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FQR57?
Key specifications include Ambient temperature: -40°C...+70°C (-40°F...+158°F); Application limits: Solid weight: < 10 g/l; Certificates / Approvals: ATEX, IEC Ex; Characteristic / Application: Transmitter Non-contact point level detection and flow monitoring Detecting, counting and positioning of objects Monitoring of material transfer points Detection and analysis of deposits and contamination Non-contact installation: Waves emitted from outside Within installation: Waves emitted within installation (contact). The full specification table on this page lists every published attribute for this part.
How quickly can FQR57 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

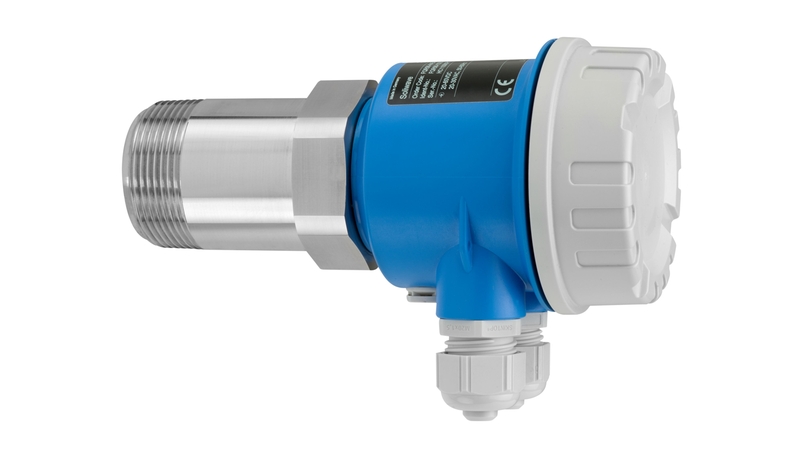

Endress+Hauser Endress+Hauser Microwave barrier transmitterSoliwave FQR56
Endress+Hauser Endress+Hauser Radiometric level anddensity measurementGamma Source FSG60

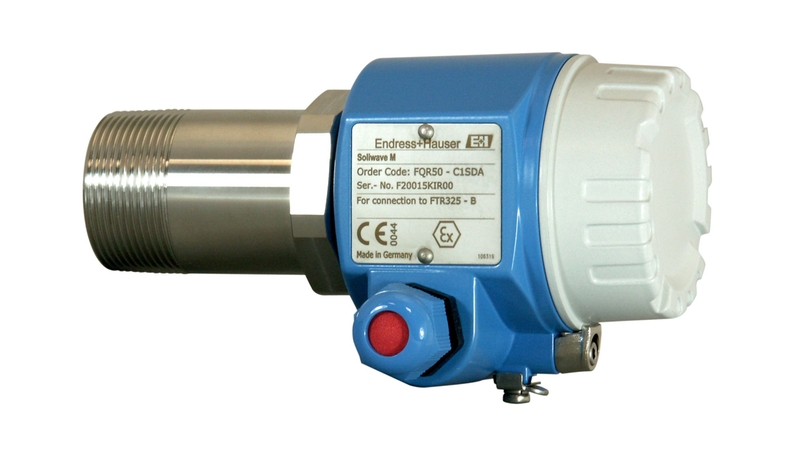

Endress+Hauser Endress+Hauser Soliwave FQR50
