Endress+Hauser Waterpilot FMX21 - hydrostatic level probe
| Accuracy | 0.2% 0.1% (optional) |
|---|---|
| Ambient temperature | -10°C...70°C (14°F...158°F) Diameter 29 mm (1.14"): 0°C...50°C (32°F...122°F) |
| Application limits | Measuring cell: ceramics |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI |
| Characteristic | Compact probe with ceramic cell for hydrostatic level measurement, Diameter = 22 mm: General applications, fresh water Diameter = 42 mm: Waste water applications Diameter = 29 mm: Salt water applications |
| Characteristic / Application | Compact probe with ceramic cell for hydrostatic level measurement, Diameter = 22 mm: General applications, Fresh water Diameter = 42 mm: Waste water applications Diameter = 29 mm: Salt water applications |
| Communication | 4...20 mA 4...20 mA HART |
| Drinking water approvals | KTW/ NSF/ ACS |
| Long term stability | 0.1% of URL/year |
| Main wetted parts | Diameter 22 mm and 42 mm: Seal, 316L, Ceramic Diameter 29 mm: Seal, PPS, Polyolefin, Ceramic Extension cable: PE, PUR, FEP |
| Marine approval | GL/ ABS/ BV/ DNV/ LR |
| Marine approvals | GL/ ABS/ BV/ DNV/ LR |
| Max. measurement distance | 200 m H2O (656 ft H2O) |
| Measuring cell | 100mbar...20bar (1.5psi...300psi) |
| Measuring principle | Hydrostatic |
| Options | Absolute measuring cell Integrated temperature sensor Pt100, 4-wire customer specific adjustment customer specific cable marking |
| Pressure measuring range | 100 mbar...20 bar (1.5 psi...300 psi) |
| Process Connection | Suspension clamp Cable mounting screws |
| Process temperature | -10°C...70°C (14°F...158°F) Diameter 29 mm (1.14"): 0°C...50°C (32°F...122°F) |
| Reference Accuracy | 0.2% 0.1% (optional) |
| Specialities | Automatic density compensation Version w/o metal parts in contact to process |
| Supply / Communication | 10.5 ...35 VDC |
| Supply voltage | 10.5 ...35V DC |
Frequently Asked Questions
How do I get pricing for FMX21?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMX21?
FMX21 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMX21?
Key specifications include Accuracy: 0.2% 0.1% (optional); Ambient temperature: -10°C...70°C (14°F...158°F) Diameter 29 mm (1.14"): 0°C...50°C (32°F...122°F); Application limits: Measuring cell: ceramics; Certificates / Approvals: ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI. The full specification table on this page lists every published attribute for this part.
How quickly can FMX21 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

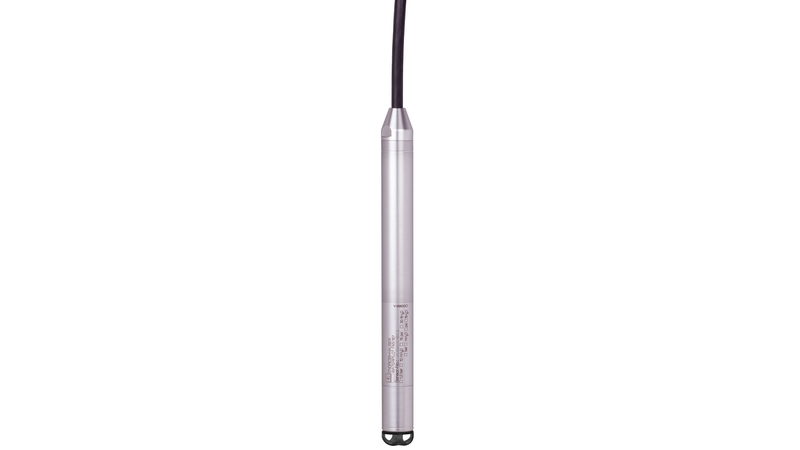

Endress+Hauser Endress+Hauser Waterpilot FMX167

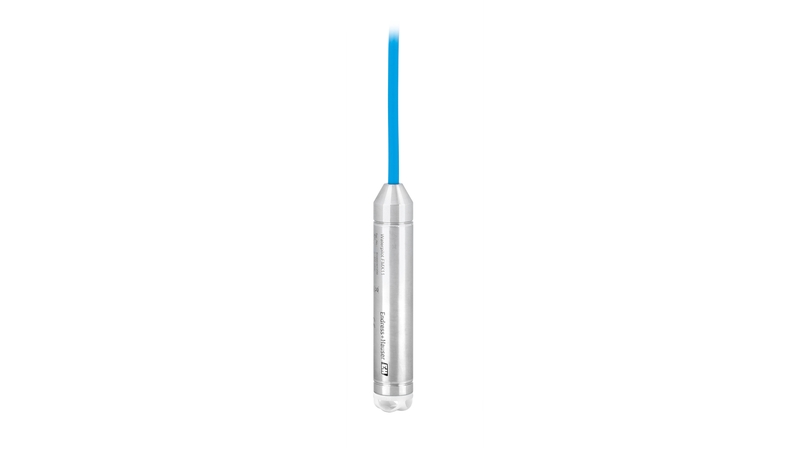

Endress+Hauser Endress+Hauser Waterpilot FMX11 - hydrostatic level probe
