Endress+Hauser Micropilot FMR50
| Accuracy | +/- 2 mm (0.08 in) |
|---|---|
| Ambient temperature | -40...+80 °C (-40...+176 °F) |
| Application limits | Ammoniacal gas phase: FMR54 in stilling well Strong build-up formation: FMR54 with air purge Low DK: FMR51 Only PTFE resistant: FMR52 Custody transfer measurement: FMR5xx |
| Certificates / Approvals | ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex |
| Characteristic / Application | For basic level measurement in liquids, pastes and slurries; non affected by changing media, temperature changes, gas blankets or vapor; Encapsulated PVDF or PP clad horn antenna |
| Communication | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
| Frequency | K-band (~26 GHz) |
| Main wetted parts | PVDF, Viton, PP, PBT |
| Max. measurement distance | Standard: 30 m (98 ft) With advanced dynamics: 40 m (131 ft) |
| Measuring principle | Level radar |
| Options | Display, Customized parameterization, PWIS free, Remote operation via SmartBlue App using Bluetooth® |
| Process Connection | Thread: G1 1/2, MNPT1 1/2 Flange: UNI DN80...DN150 (3"...6") |
| Process pressure / max. overpressure limit | Vacuum...3 bar (Vacuum...43.5 psi) |
| Process temperature | -40...+130 °C (-40...+266 °F) |
| Safety approvals | Overfill protection WHG SIL |
| Specialities | Heartbeat Technology, SIL 2 according to IEC 61508, Bluetooth® commissioning, Operation and maintenance SmartBlue App, Safety and reliability with Multi-Echo Tracking, HistoROM, RFID TAG for easy identification |
| Supply / Communication | 2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus) 4-wire (HART) Bluetooth® wireless technology and App (optional) |
Frequently Asked Questions
How do I get pricing for FMR50?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMR50?
FMR50 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMR50?
Key specifications include Accuracy: +/- 2 mm (0.08 in); Ambient temperature: -40...+80 °C (-40...+176 °F); Application limits: Ammoniacal gas phase: FMR54 in stilling well Strong build-up formation: FMR54 with air purge Low DK: FMR51 Only PTFE resistant: FMR52 Custody transfer measurement: FMR5xx; Certificates / Approvals: ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex. The full specification table on this page lists every published attribute for this part.
How quickly can FMR50 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

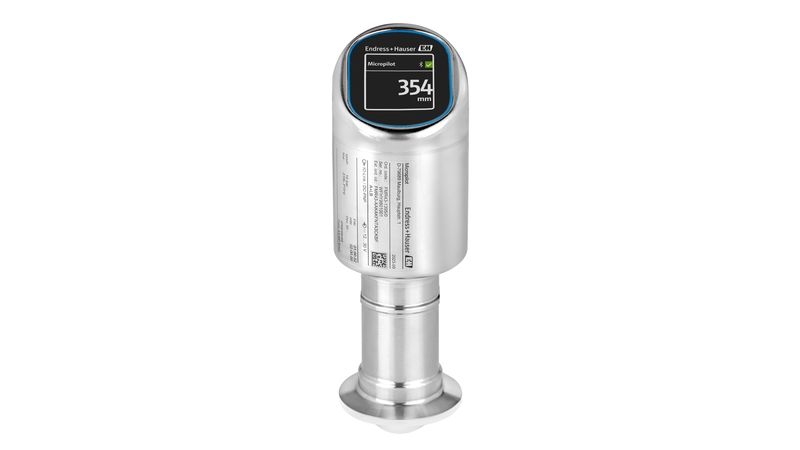

Endress+Hauser Endress+Hauser Micropilot FMR43 – radar sensor for hygienic processes

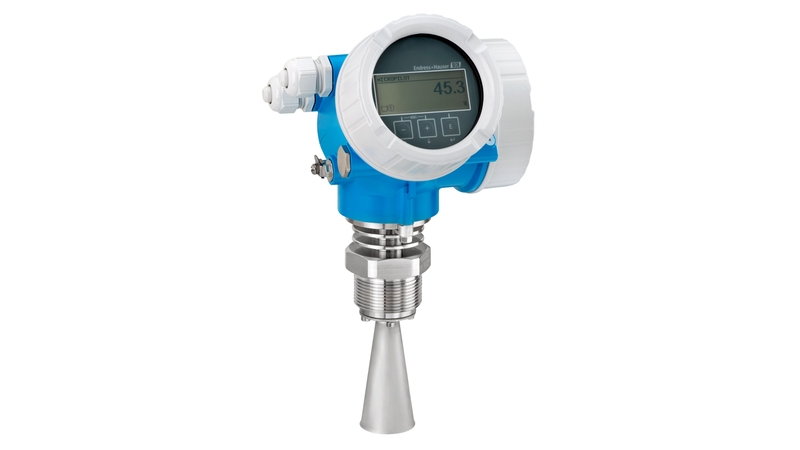

Endress+Hauser Endress+Hauser Radar measurementTime-of-FlightMicropilot FMR51

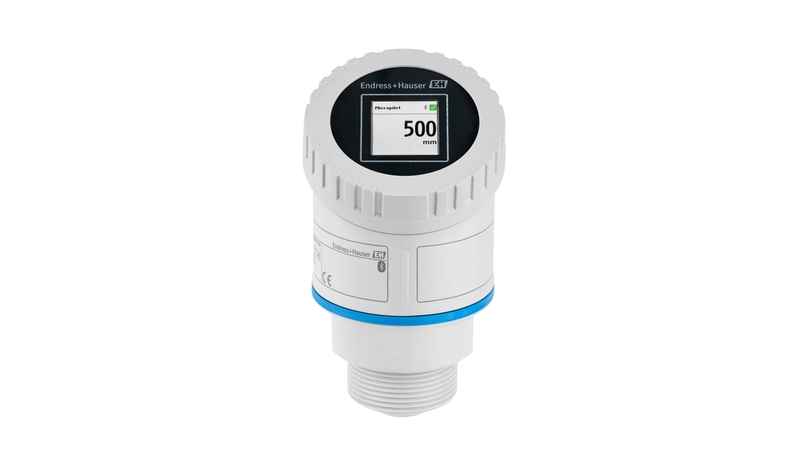

Endress+Hauser Endress+Hauser Micropilot FMR30B - radar sensor for basic applications

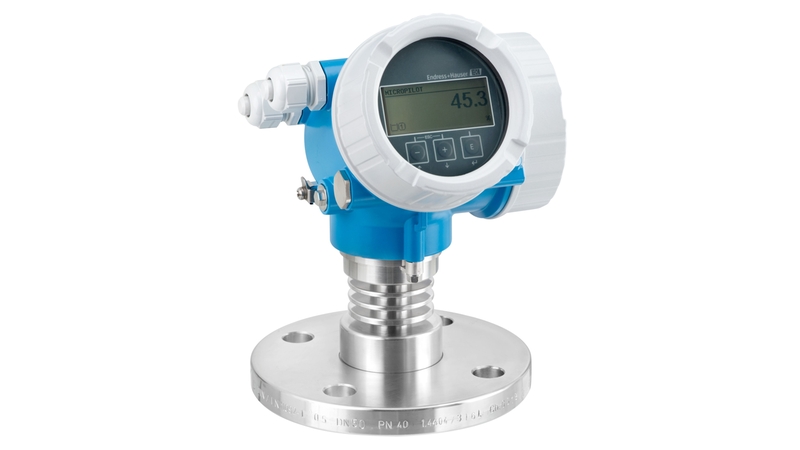

Endress+Hauser Endress+Hauser Radar measurement Time-of-FlightMicropilot FMR52

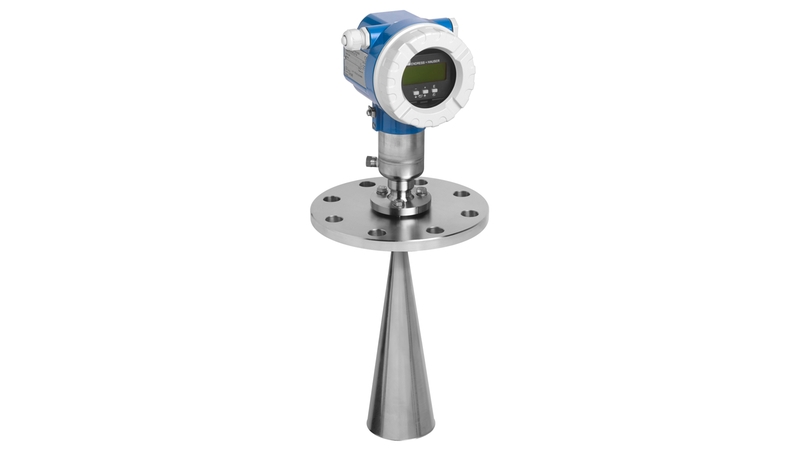

Endress+Hauser Endress+Hauser Micropilot M FMR250
