Endress+Hauser Micropilot M FMR231
| Accuracy | +/- 10 mm |
|---|---|
| Ambient temperature | -40 °C...+80 °C (-40 °F...+176 °F) |
| Application | Application |
| Application limits | Application limits |
| Certificates / Approvals | ATEX, FM, CSA, IECEx, TIIS, NEPSI Overfill prevention WHG SIL EN10204-3.1 Marine GL/ABS/NK |
| Characteristic / Application | Characteristic / Application |
| Communication | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus |
| Frequency | C-band (~6 GHz) |
| Main wetted parts | PTFE, PPS + 316L |
| Max. measurement distance | Max. measurement distance |
| Process Connection | Thread: NPT 1 1/2, R 1 1/2 Flange: DN50...DN150, ASME 2"...6", JIS 10K |
| Process connection hygienic | Tri-Clamp ISO2852 DIN11864-1 DIN11851 |
| Process pressure / max. overpressure limit | Vacuum...40 bar (Vacuum...580 psi) |
| Process temperature | -40 °C...+150 °C (-40 °F...+302 °F) |
| Supply / Communication | 2-wire (HART / PROFIBUS PA / FOUNDATION Fieldbus) |
Frequently Asked Questions
How do I get pricing for FMR231?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMR231?
FMR231 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMR231?
Key specifications include Accuracy: +/- 10 mm; Ambient temperature: -40 °C...+80 °C (-40 °F...+176 °F); Application: Application; Application limits: Application limits. The full specification table on this page lists every published attribute for this part.
How quickly can FMR231 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

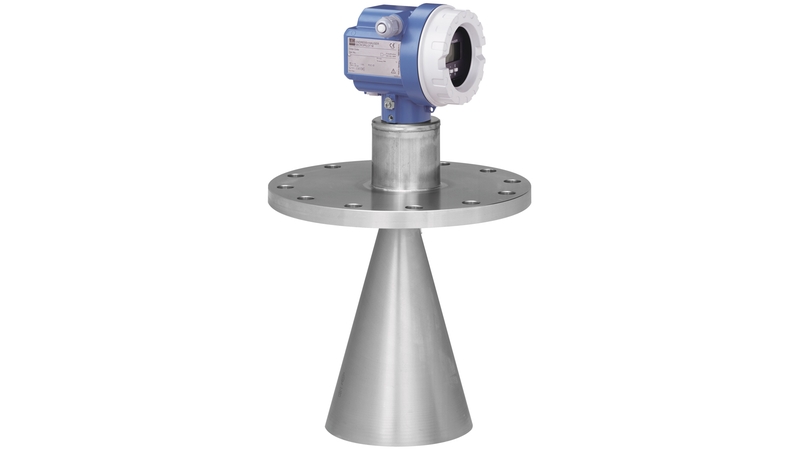

Endress+Hauser Endress+Hauser Micropilot M FMR230
Endress+Hauser Endress+Hauser Micropilot M FMR240

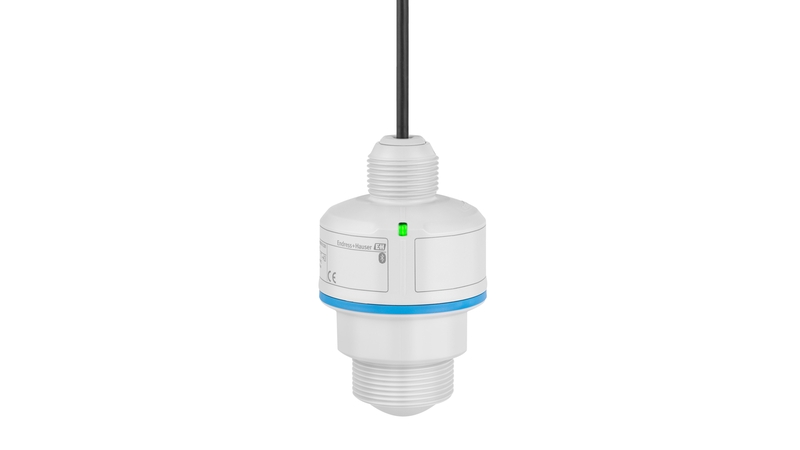

Endress+Hauser Endress+Hauser Micropilot FMR20B - radar sensor for basic applications

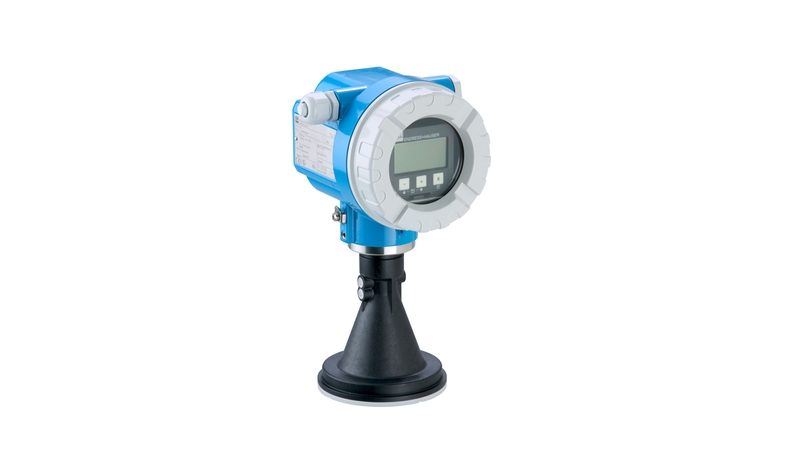

Endress+Hauser Endress+Hauser Micropilot M FMR244

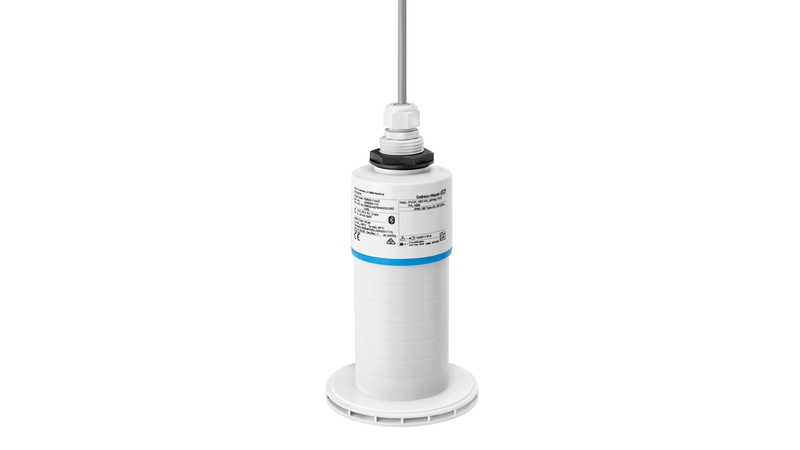

Endress+Hauser Endress+Hauser Micropilot FMR20
