Endress+Hauser Guided radar measurementTime-of-FlightLevelflex FMP51
| Accuracy | Rod probe :+/- 2 mm (0.08 in) Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in) Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in) Coaxial probe: +/- 2 mm (0.08 in) |
|---|---|
| Ambient temperature | -50...+80 °C (-58...+176 °F) |
| Application limits | Application limits |
| Certificates / Approvals | ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, JPN Ex, UK Ex |
| Characteristic / Application | Premium device Rod probe, Rope probe, Coaxial probe Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias. |
| Communication | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
| Design approvals | EN 10204-3.1 NACE MR0175, MR0103 ASME B31.1, B31.3 AD2000 |
| Interface measurement | Clean interfaces liquid/ liquid; Simultaneous measurement of interface and overall level |
| Main wetted parts | Rod probe: 316L, Alloy C, Ceramic Rope probe: 316, 316L, Alloy C, Ceramic Coaxial probe: 316L, Alloy C, Ceramic, PFA |
| Marine approval | GL/ ABS/ LR/ BV/ DNV |
| Max. measurement distance | Rod: 10 m (33 ft) Min DK>1.6 Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6; 30m...45 m (98ft...148 ft) Min DK>1,9 Coaxial probe: 6 m (20 ft) Min DK>1.4 |
| Measuring principle | Guided radar |
| Options | Sensor remote with 3 m/ 9 ft cable, Gas-tight feed through, Remote operation via SmartBlue App using Bluetooth® |
| Process Connection | Thread: G3/4...G1 1/2; MNPT 3/4...MNPT1 1/2 Flange: ASME 1 1/2"...8", DN50...DN 200, JIS 10K |
| Process pressure / max. overpressure limit | Vacuum...40 bar (Vacuum...580 psi) |
| Process temperature | -50...+200 °C (-58...+392 °F) |
| Safety approvals | Overfill protection WHG SIL |
| Sensor length | Rod probe: 10 m (33 ft) Rope probe: 45 m (148 ft) Coaxial probe: 6 m (20 ft) |
| Specialities | Heartbeat Technology, Bluetooth® commissioning, Operation and maintenance SmartBlue App, HistoROM, RFID TAG for easy identification |
| Supply / Communication | 2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus) 4-wire (HART) Bluetooth® wireless technology and App (optional) |
Frequently Asked Questions
How do I get pricing for FMP51?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMP51?
FMP51 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMP51?
Key specifications include Accuracy: Rod probe :+/- 2 mm (0.08 in) Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in) Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in) Coaxial probe: +/- 2 mm (0.08 in); Ambient temperature: -50...+80 °C (-58...+176 °F); Application limits: Application limits; Certificates / Approvals: ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, JPN Ex, UK Ex. The full specification table on this page lists every published attribute for this part.
How quickly can FMP51 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

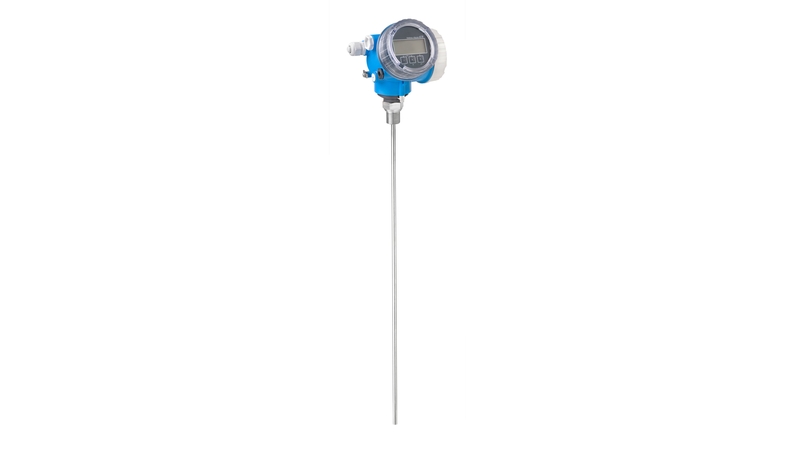

Endress+Hauser Endress+Hauser Guided radar measurement Time-of-FlightLevelflex FMP50

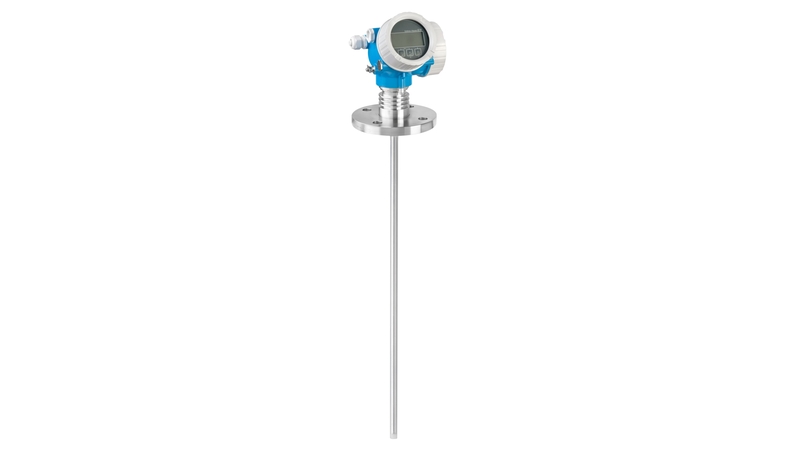

Endress+Hauser Endress+Hauser Guided radar measurementTime-of-FlightLevelflex FMP52
Endress+Hauser Endress+Hauser Guided radar measurementTime-of-FlightLevelflex FMP53

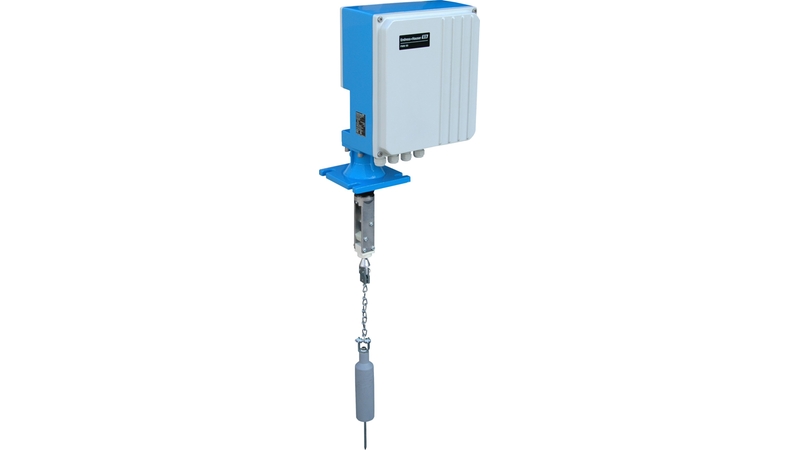

Endress+Hauser Endress+Hauser ElectromechanicalLevel measurementSilopilot FMM50
