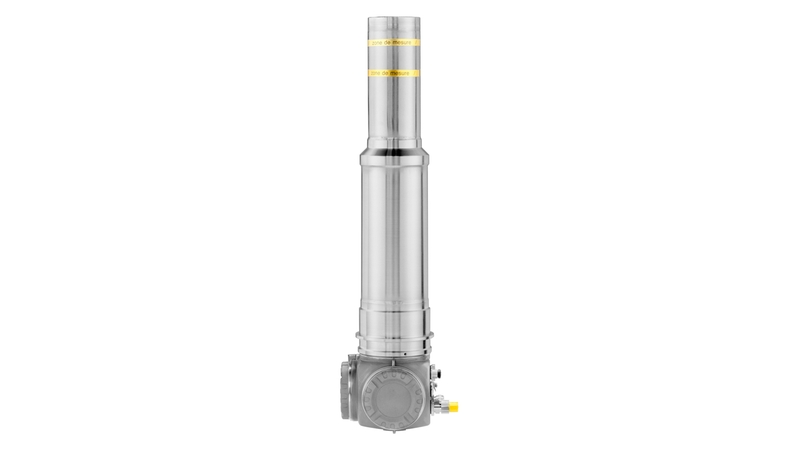

Endress+Hauser Gammapilot M FMG60
| + output | 4-20mA HART FOUNDATION Fieldbus PROFIBUS PA |
|---|---|
| Accuracy | +/-1% |
| Ambient temperature | -40°C...50°C / 60°C With cooling jacket: 0°C...120°C |
| Certificates / Approvals | ATEX, FM, CSA, IECEx, TIIS, NEPSI, GOST |
| Characteristic / Application | Compact transmitter with PT100 input for temperature compensation |
| Communication | 4...20 mA HART FOUNDATION Fieldbus PROFIBUS PA |
| Components | Isotope: FSG60 Source container: FQG60, FQG61, FQG62, FQG63, QG2000 |
| Hygienic | Non-contact |
| Interface measurement | Interfaces liquid / liquid also with emulsion layers and interfaces liquid / solid |
| Main wetted parts | Non-contact |
| Max. measurement distance | Unlimited measuring range Cascade |
| Min. conductivity of medium | Any |
| Min. density of medium | Any |
| Other approvals and certificates | SIL1 |
| Process Connection | Non-contact |
| Process connection hygienic | Non-contact |
| Process pressure | Any |
| Process pressure / max. overpressure limit | Any |
| Process temperature | Any |
| Safety approvals | SIL1/ SIL2 |
| Sensor length | NaJ scintillator 50x50mm PVT scintillator 200...400mm |
| Specialities | Optional separate housing |
| Supply / Communication | AC: 90-253V DC: 18-36V |
| Wetted parts | Non-contact |
Frequently Asked Questions
How do I get pricing for FMG60?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMG60?
FMG60 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMG60?
Key specifications include + output: 4-20mA HART FOUNDATION Fieldbus PROFIBUS PA; Accuracy: +/-1%; Ambient temperature: -40°C...50°C / 60°C With cooling jacket: 0°C...120°C; Certificates / Approvals: ATEX, FM, CSA, IECEx, TIIS, NEPSI, GOST. The full specification table on this page lists every published attribute for this part.
How quickly can FMG60 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

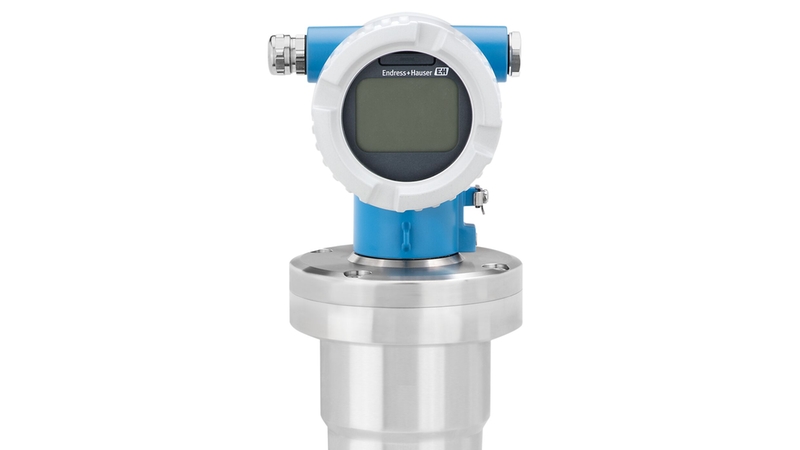

Endress+Hauser Endress+Hauser Radiometric level and density measurement Gammapilot FMG50

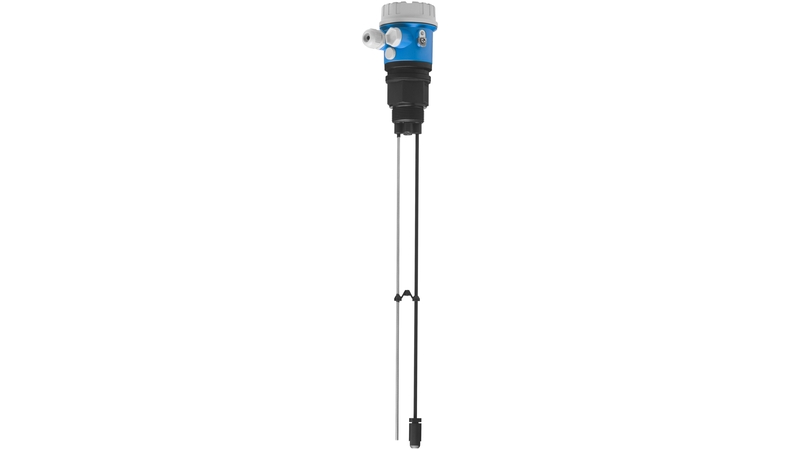

Endress+Hauser Endress+Hauser CapacitanceLevel measurementLiquicap FMI21
Endress+Hauser Endress+Hauser CapacitanceLevel measurementLiquicap FMI51
Endress+Hauser Endress+Hauser CapacitanceLevel measurementLiquicap FMI52

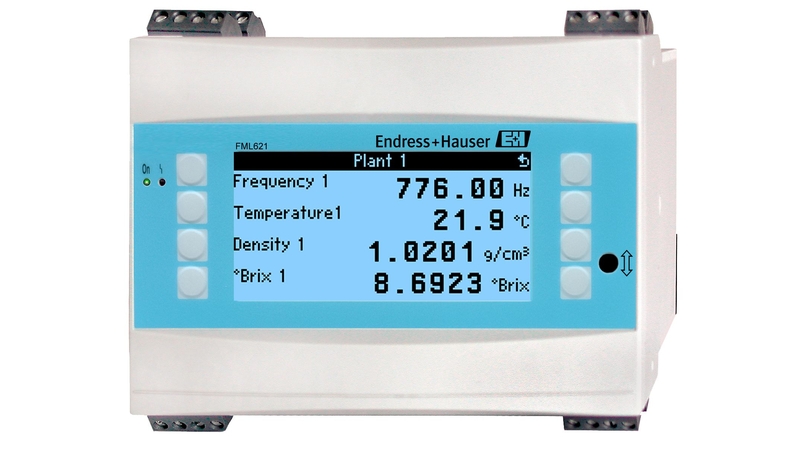

Endress+Hauser Endress+Hauser Densitycontroller, Liquiphant FML621
