Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FDU92
| Accuracy | +/- 2mm + 0.17% of measured distance |
|---|---|
| Ambient temperature | -40 °C ... 95 °C (-40 °F ... 203 °F) |
| Application limits | For tank farms scanner: FMU95 |
| Blocking distance | 0.4 m (1.3 ft) |
| Certificates / Approvals | ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, UK Ex |
| Characteristic / Application | Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300m in-between sensor and transmitter |
| Communication | Transmitter: 4 ... 20 mA HART PROFIBUS DP |
| Components | Transmitter: FMU90 |
| Degree of protection | IP68 |
| Digital communication | HART, PROFIBUS DP |
| Display/Operation | Transmitter FMU90 |
| Hazardous area approvals | ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, UK Ex |
| Inputs | Transmitter FMU90 |
| Main wetted parts | PVDF (fully welded IP68 / NEMA 6P) |
| Max. measurement distance | Liquids: 20 m (65 ft), Solids: 10 m (33 ft) |
| Max. measurement error | accuracy: distance measurement: +/- 2mm + 0.17% |
| Max. process pressure | 0.4 bar...4 bar (10 psi...58 psi) |
| Measuring principle | Ultrasonic |
| Measuring range | Up to 20m / 65ft |
| Medium temperature range | -40...95°C (-40...203°F) |
| Options | Second 4...20mA output |
| Outputs | Transmitter: 4...20mA HART PROFIBUS DP |
| Process Connection | G / NPT 1" |
| Process pressure / max. overpressure limit | 0.7 bar ... 4 bar abs (10 psi ... 58 psi) |
| Process temperature | -40 °C ... 95 °C (-40 °F ... 203 °F) |
| Product headline | Ultrasonic sensor for level and open channel flow measurement. For applications requiring separate level / open channel flow measurement system. |
| Supply / Communication | 4-wire (HART, PROFIBUS DP) |
Frequently Asked Questions
How do I get pricing for FDU92?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FDU92?
FDU92 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FDU92?
Key specifications include Accuracy: +/- 2mm + 0.17% of measured distance; Ambient temperature: -40 °C ... 95 °C (-40 °F ... 203 °F); Application limits: For tank farms scanner: FMU95; Blocking distance: 0.4 m (1.3 ft). The full specification table on this page lists every published attribute for this part.
How quickly can FDU92 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FDU91F
Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FDU93
Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FDU91
Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FDU95

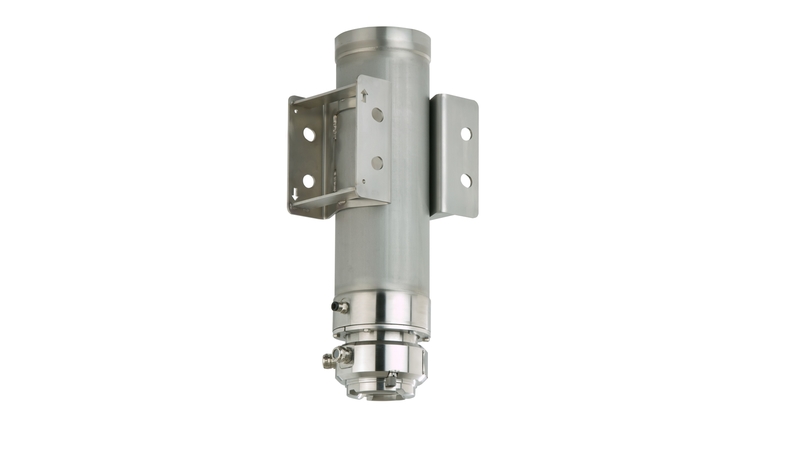

Endress+Hauser Endress+Hauser Radiometric measurementGamma Modulator FHG65
