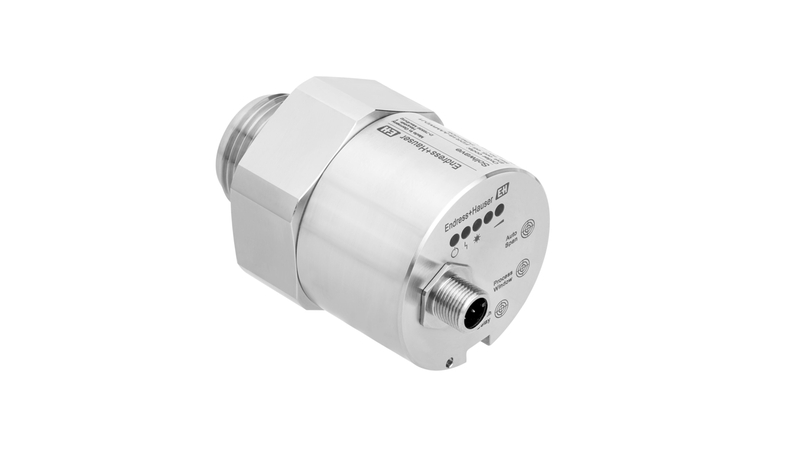

Endress+Hauser Microwave barrier transceiver Soliwave FDR16
| Ambient temperature | -20°C ... +60°C (-4°F... +140°F) |
|---|---|
| Application limits | Solid weight: < 10 g/l |
| Certificates / Approvals | ATEX, IEC Ex |
| Characteristic / Application | Microwave barrier Non-contact point level detection (min/max, e.g. full and empty detection for overflow and dry run protection) for all types of bulk solids (from powdery to lumpy) and liquids, also in potentially explosive atmospheres (dust Ex). Detection, counting, and positioning of objects Object detection on conveyor belts |
| Communication | 3-wire-DC-PNP, 2 DC-PNP-outputs |
| Components | FQR16 |
| Design approvals | EN10204-3.1 |
| Hygienic approvals | EG1935/2004 |
| Main wetted parts | Non-contact installation: no wetted parts Contact installation: 316L, PTFE |
| Measuring principle | Microwave barrier |
| Min. density of medium | Solid weight: > 10 g/l |
| Options | Mounting bracket Counternut Welding sleeve Connection cable Connecting cable High-pressure adapter High-temperature adapter Extension for HT-adapter Mounting flange Sight glass fitting FAR50, FAR51, FAR52, FAR54 |
| Process Connection | ISO228-1: G1", G1-1/2" ASME: NPT1-1/2" |
| Process connection hygienic | Non-contact installation |
| Process pressure / max. overpressure limit | Non-contact installation: any Within installation: 0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs. With high pressure adapter: up to +21 bar (+305 psi) abs. |
| Process temperature | Non-contact installation: any Within installation: -20°C ... +60°C (-4°F ... +140°F) With high temperature adapter: up to +450°C (+842°F) |
| Specialities | Detection range: max. 20 m |
| Supply / Communication | 18 V ... 30 V DC, Plug M12 |
Frequently Asked Questions
How do I get pricing for FDR16?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FDR16?
FDR16 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FDR16?
Key specifications include Ambient temperature: -20°C ... +60°C (-4°F... +140°F); Application limits: Solid weight: < 10 g/l; Certificates / Approvals: ATEX, IEC Ex; Characteristic / Application: Microwave barrier Non-contact point level detection (min/max, e.g. full and empty detection for overflow and dry run protection) for all types of bulk solids (from powdery to lumpy) and liquids, also in potentially explosive atmospheres (dust Ex). Detection, counting, and positioning of objects Object detection on conveyor belts. The full specification table on this page lists every published attribute for this part.
How quickly can FDR16 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Soliwave FDR50

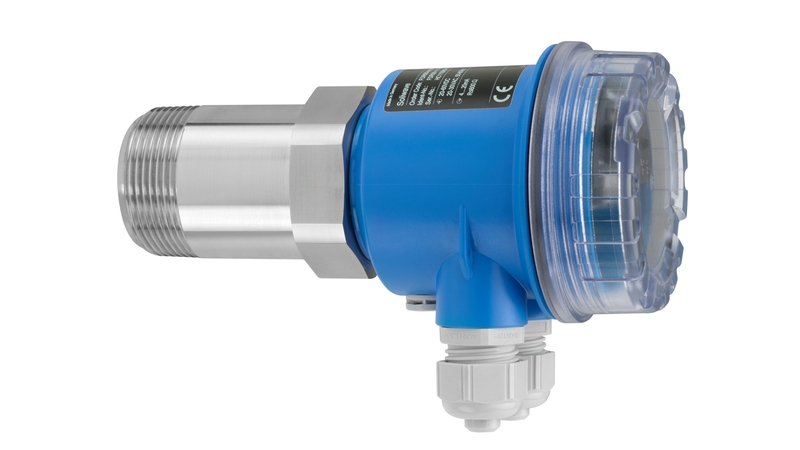

Endress+Hauser Endress+Hauser Microwave barrier transceiverSoliwave FDR56

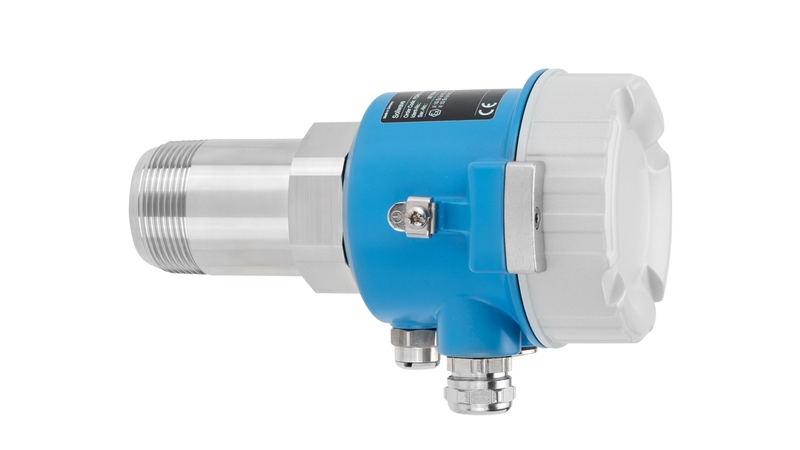

Endress+Hauser Endress+Hauser Microwave barrier transceiverSoliwave FDR57

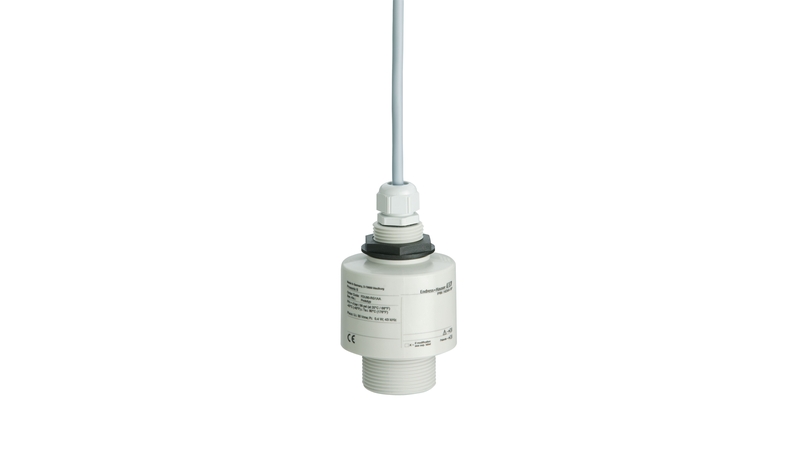

Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FDU90

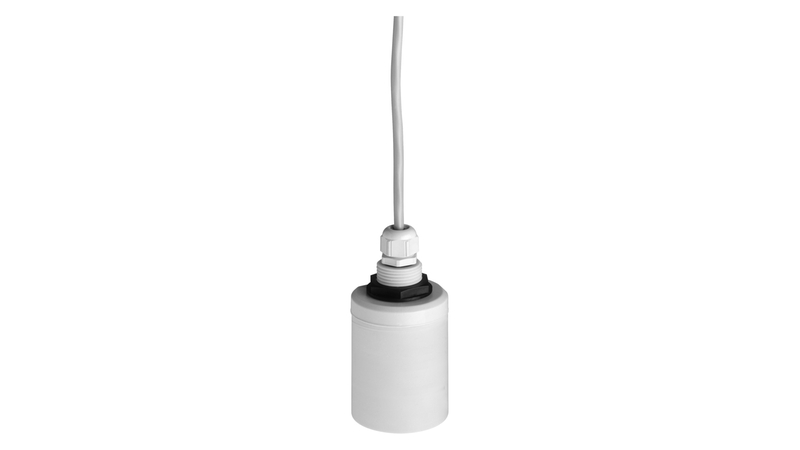

Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FDU91
