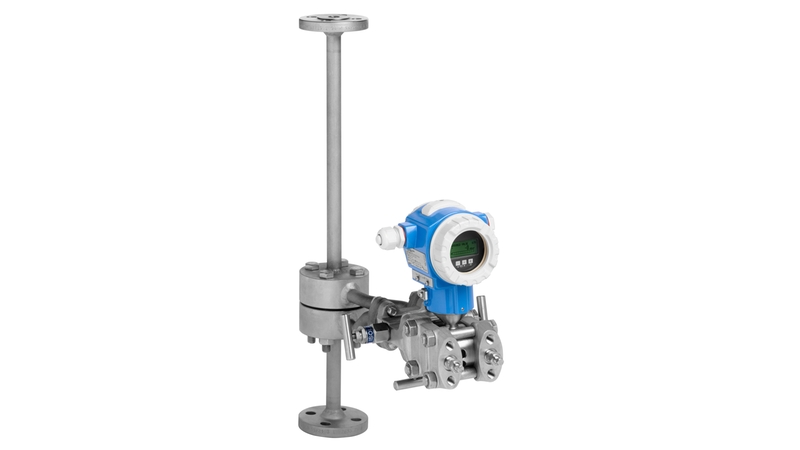

Endress+Hauser Deltatop DO65F
Endress+Hauser DO65F - Flow measurement - Degree of protection: Transmitter (Deltabar): IP67 NEMA6P; Measuring range: 0.4 ... 550m3/h 2.0 ... 2750 kg/h at 10bar/230°C; Outputs: Transmitter (Deltabar): 4 ... 20 mA.
This listing covers the Endress+Hauser DO65F, a part number in the Flow measurement category. The manufacturer's published data for this part number specifies Degree of protection: Transmitter (Deltabar): IP67 NEMA6P and Measuring range: 0.4 ... 550m3/h 2.0 ... 2750 kg/h at 10bar/230°C.
Calculated volume or mass flow measurement. dp primary element (orifice). Orifice meter run with annular chamber corner taps.
Key manufacturer data on file for this item includes Outputs: Transmitter (Deltabar): 4 ... 20 mA; Nominal diameter range: DN 10...50 3/8" ... 2"; Display/Operation: Transmitter (Deltabar): 4-line display 3 push buttons Quick setup HistoROM; Hazardous area approvals: Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI; Max. process pressure: PN6 ... 160 Cl.150 ... 2500; Digital communication: Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus. The complete technical table is shown in the Specifications tab on this page.
| Degree of protection | Transmitter (Deltabar): IP67 NEMA6P |
|---|---|
| Digital communication | Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus |
| Display/Operation | Transmitter (Deltabar): 4-line display 3 push buttons Quick setup HistoROM |
| Hazardous area approvals | Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI |
| Max. measurement error | typically < 1,5% of calculated volume or mass. DN < 25 / 1" calibration recommended. Uncertainty of primary element excluding uncertainty of density or compensation. |
| Max. process pressure | PN6 ... 160 Cl.150 ... 2500 |
| Measuring range | 0.4 ... 550m3/h 2.0 ... 2750 kg/h at 10bar/230°C |
| Medium temperature range | Compact version: -200°C ... 200°C -328°F ... 392°F Remote version: -200°C ... 1000°C -328°F ... 1832°F |
| Nominal diameter range | DN 10...50 3/8" ... 2" |
| Outputs | Transmitter (Deltabar): 4 ... 20 mA |
| Product headline | Calculated volume or mass flow measurement. dp primary element (orifice). Orifice meter run with annular chamber corner taps. |
| Sensor features | Internationally standardized. Including pipe section. Small pipe sizes DN10...50 ; 3/8...2". Exchangeable orifice plate. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter. |
Frequently Asked Questions
How do I get pricing for DO65F?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DO65F?
DO65F is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of DO65F?
Key specifications include Degree of protection: Transmitter (Deltabar): IP67 NEMA6P; Digital communication: Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus; Display/Operation: Transmitter (Deltabar): 4-line display 3 push buttons Quick setup HistoROM; Hazardous area approvals: Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI. The full specification table on this page lists every published attribute for this part.
How quickly can DO65F ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Deltatop DO64P

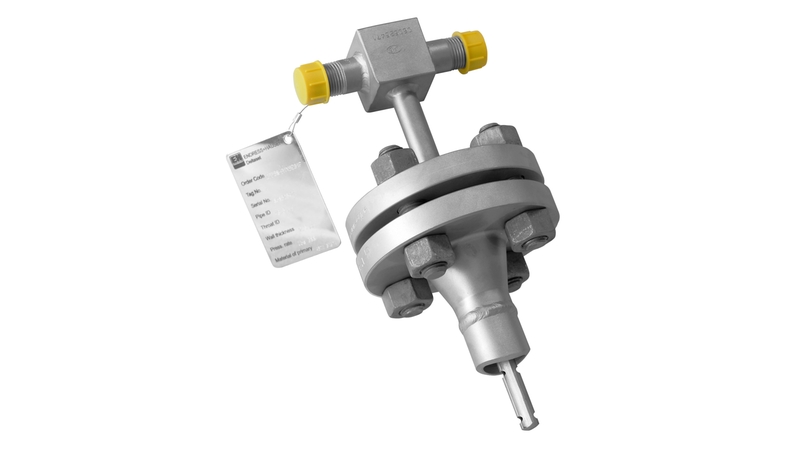

Endress+Hauser Endress+Hauser Deltatop DP61D

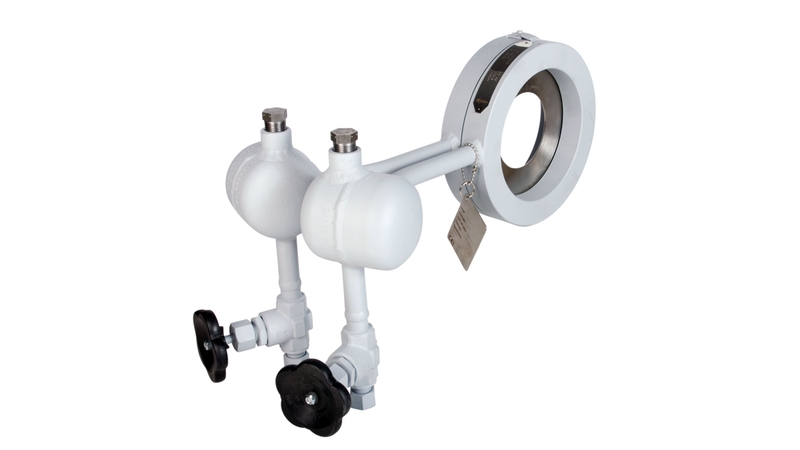

Endress+Hauser Endress+Hauser Deltatop DO63C

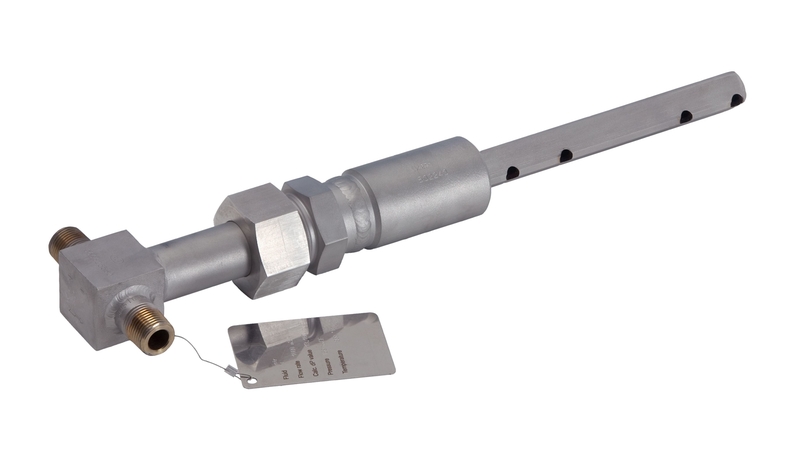

Endress+Hauser Endress+Hauser Deltatop DP62D
