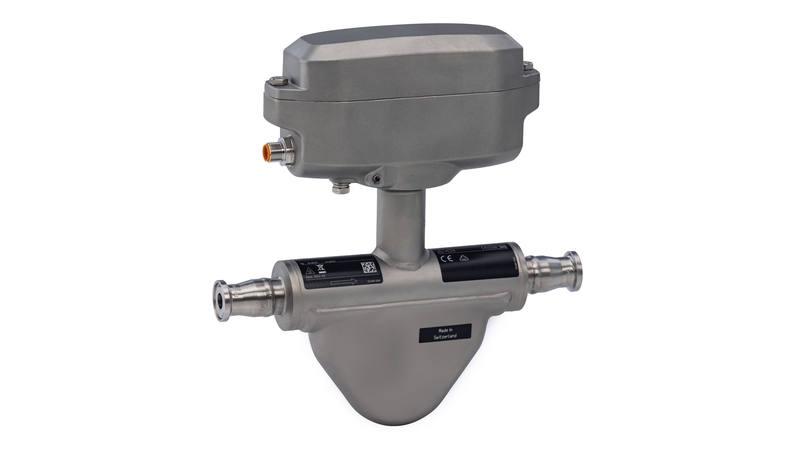

Endress+Hauser Dosimass Coriolis flowmeter
Endress+Hauser D8AB - Flow measurement - Degree of protection: IP67, type 4X enclosure; Power Supply: DC 20 to 30 V; Measuring range: 0 to 45 000 kg/h (0 to 1654 lb/min).
Endress+Hauser D8AB is a Flow measurement catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Degree of protection: IP67, type 4X enclosure and Power Supply: DC 20 to 30 V.
The compact sensor with an ultra-compact transmitter. Measurement of liquids with the most diverse properties in continuous process control & batching applications.
Published specifications for this part include Measuring range: 0 to 45 000 kg/h (0 to 1654 lb/min); Measuring principle: Coriolis; Outputs: Pulse/frequency/switch output (passive); Nominal diameter range: DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂"); Display/Operation: No local operation Configuration via operating tools possible; Product safety: CE; Hazardous area approvals: ATEX, UL, UK Ex; Measured variables: Mass flow, density, temperature, volume flow; Max. measurement error: Mass flow (liquid): ±0.15 % Density (liquid): ±0.0005 g/cm³; Max. process pressure: PN 40; Medium temperature range: –40 to +130 °C (–40 to +266 °F) 150 °C allowed for 1 h; Ambient temperature range: –20 to +60 °C (–4 to +140 °F). See the Specifications tab on this page for the full technical table.
| Ambient temperature range | –20 to +60 °C (–4 to +140 °F) |
|---|---|
| Degree of protection | IP67, type 4X enclosure |
| Digital communication | Modbus RS485, IO-Link |
| Display/Operation | No local operation Configuration via operating tools possible |
| Hazardous area approvals | ATEX, UL, UK Ex |
| Inputs | None |
| Max. measurement error | Mass flow (liquid): ±0.15 % Density (liquid): ±0.0005 g/cm³ |
| Max. process pressure | PN 40 |
| Measured variables | Mass flow, density, temperature, volume flow |
| Measuring principle | Coriolis |
| Measuring range | 0 to 45 000 kg/h (0 to 1654 lb/min) |
| Medium temperature range | –40 to +130 °C (–40 to +266 °F) 150 °C allowed for 1 h |
| Nominal diameter range | DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂") |
| Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR 3-A |
| Outputs | Pulse/frequency/switch output (passive) |
| Power Supply | DC 20 to 30 V |
| Product headline | The compact sensor with an ultra-compact transmitter. Measurement of liquids with the most diverse properties in continuous process control & batching applications. |
| Product safety | CE |
| Sensor features | High process safety – high measuring accuracy for different media in shortest filling time. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Nominal diameter: DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂"). Various hygienic process connections, 3-A conform. CIP, SIP cleanable sensor. |
| Sensor housing material | Stainless steel, 1.4404 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈") Stainless steel, 1.4301 (304) (DN 8 to 40 mm (³⁄₈ to 1 ½") |
| Transmitter features | Versatile and time-saving wiring – plug connector. Fast commissioning – pre-configured devices. Automatic recovery of data for servicing. Robust, ultra‐compact transmitter housing. Pulse/frequency/switch output, Modbus RS485. Excellent and easily cleanable transmitter. |
| Transmitter housing material | Stainless steel, 1.4409 (CF3M) |
| Wetted materials | Measuring tube: 1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈") 1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½") Process connection 1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈") 1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½") |
Frequently Asked Questions
How do I get pricing for D8AB?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the D8AB?
D8AB is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of D8AB?
Key specifications include Ambient temperature range: –20 to +60 °C (–4 to +140 °F); Degree of protection: IP67, type 4X enclosure; Digital communication: Modbus RS485, IO-Link; Display/Operation: No local operation Configuration via operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can D8AB ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Dosimag electromagnetic flowmeter

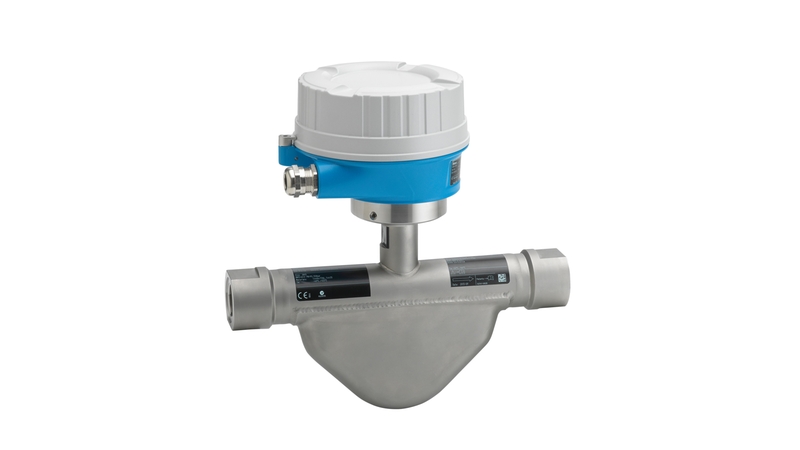

Endress+Hauser Endress+Hauser CNGmass D8CBCoriolis flowmeter
