Endress+Hauser Proline Prosonic Flow I 400 ultrasonic flowmeter
Endress+Hauser 9I4B - Flow measurement - Power Supply: AC 100 to 240 V / AC/DC 24 V; Measuring range: 0 to 15 m/s (0 to 50 ft/s); Measuring principle: Ultrasonic flow.
This listing covers the Endress+Hauser 9I4B, a part number in the Flow measurement category. The manufacturer's published data for this part number specifies Power Supply: AC 100 to 240 V / AC/DC 24 V and Measuring range: 0 to 15 m/s (0 to 50 ft/s).
Transmitter: IP66/67, Type 4X enclosure Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional)
The specification set recorded for this part number covers Measuring principle: Ultrasonic flow; Approvals: cCSAus; Nominal diameter range: DN200 to 4000 (8 to 160"); Product safety: CE, C-tick marking, EAC-marking; Measured variables: Volume flow, Flow velocity, Sound velocity; Max. measurement error: Volume flow: ±2% o.r. above DN200; Max. process pressure: N/A; Medium temperature range: –40 to +80 °C (–40 to +176 °F); Ambient temperature range: -20 to 60°C (-4 to 140°F); Sensor housing material: N/A; Transmitter housing material: Wall-mounted housing: Polycarbonat; AlSi10Mg, coated; Inputs: Status input. See the Specifications tab on this page for the full technical table.
| Ambient temperature range | -20 to 60°C (-4 to 140°F) |
|---|---|
| Approvals | cCSAus |
| Degree of protection | Transmitter: IP66/67, Type 4X enclosure Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional) |
| Digital communication | HART |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display, web browser and operating tools possible |
| Inputs | Status input |
| Marine approvals and certificates | Marine approvals and certificates |
| Max. measurement error | Volume flow: ±2% o.r. above DN200 |
| Max. process pressure | N/A |
| Measured variables | Volume flow, Flow velocity, Sound velocity |
| Measuring principle | Ultrasonic flow |
| Measuring range | 0 to 15 m/s (0 to 50 ft/s) |
| Medium temperature range | –40 to +80 °C (–40 to +176 °F) |
| Metrological approvals and certificates | Flowmeter verification Verification performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a |
| Nominal diameter range | DN200 to 4000 (8 to 160") |
| Other approvals and certificates | Other approvals and certificates |
| Outputs | 3 ouputs: 4‐20 mA/4‐20 mA HART (active) Pulse/frequency/switch output (passive) Pulse/frequency/switch output (passive) |
| Power Supply | AC 100 to 240 V / AC/DC 24 V |
| Product headline | Insertion meter with Heartbeat Technology and web server for the water and wastewater industry. Bidirectional flow measurement of water and wastewater. |
| Product safety | CE, C-tick marking, EAC-marking |
| Sensor features | Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 2000/80"). Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Process transparency – diagnostic capability. Supports two parallel measurement paths. For large diameters: DN 200 to 4000 (8 to 160"). Medium temperatur: –40 to +80 °C (–40 to +176 °F). |
| Sensor housing material | N/A |
| Transmitter features | Safe operation – no need to open the device due to display with touch control, background lighting. Full remote access – web server. Integrated diagnostics, verification and monitoring – Heartbeat Technology. Transmitter housing made of durable polycarbonate or aluminium. Remote version for wall mounting. Integrated data logger: measured values monitoring. |
| Transmitter housing material | Wall-mounted housing: Polycarbonat; AlSi10Mg, coated |
| Wetted materials | Insertion system: Sensor holder 1.4301 (304), 1.4404 (316L) Sensor housing 1.4301 (304), 1.4404 (316L) |
Frequently Asked Questions
How do I get pricing for 9I4B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 9I4B?
9I4B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 9I4B?
Key specifications include Ambient temperature range: -20 to 60°C (-4 to 140°F); Approvals: cCSAus; Degree of protection: Transmitter: IP66/67, Type 4X enclosure Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional); Digital communication: HART. The full specification table on this page lists every published attribute for this part.
How quickly can 9I4B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Proline Prosonic Flow G 500 ultrasonic flowmeter
Endress+Hauser Endress+Hauser Proline Prosonic Flow P 500 ultrasonic clamp-on flowmeter
Endress+Hauser Endress+Hauser Proline Prosonic Flow G 300 ultrasonic flowmeter

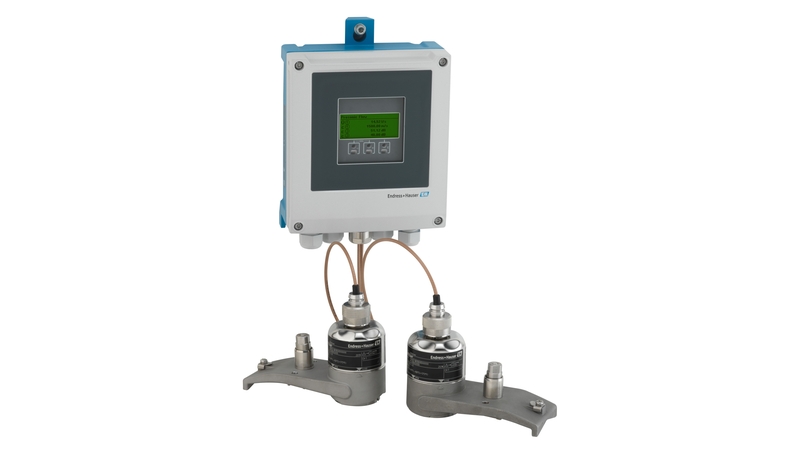

Endress+Hauser Endress+Hauser Proline Prosonic Flow W 400 ultrasonic clamp-on flowmeter

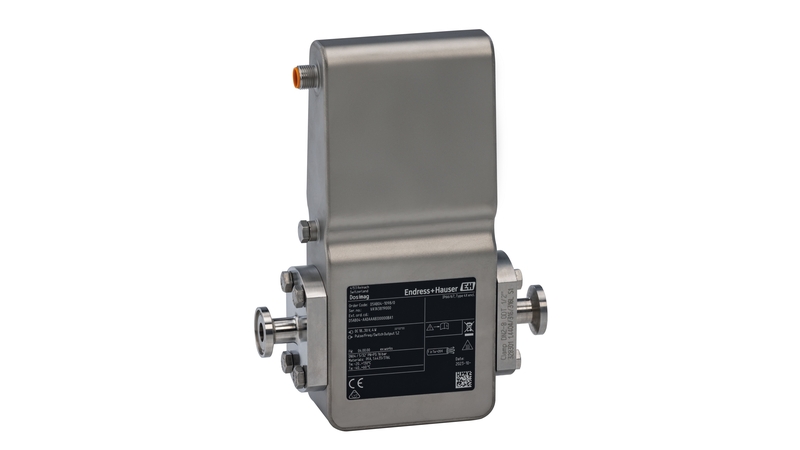

Endress+Hauser Endress+Hauser Dosimag electromagnetic flowmeter
