Endress+Hauser Proline Prosonic Flow B 200 ultrasonic flowmeter
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | IP66/67, type 4X enclosure |
| Digital communication | HART |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible |
| Hazardous area approvals | ATEX, IECEx, cCSAus, NEPSI, INMETRO, JPN, EAC, KC |
| Inputs | Current input 4‐20 mA (passive) |
| Material certificates | 3.1 material (wetted parts) |
| Max. measurement error | Volume flow (standard): ‐ ±1.5 % o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s) ‐ ±3 % o.r. for 1 to 3 m/s (3.28 to 9.84 ft/s) Volume flow (option): ‐ ±0.1 % o.f.s. for 0.3 to 1 m/s (0.98 to 3.28 ft/s) ‐ ±1.5 % o.r. for 1 to 30 m/s (3.28 to 98.4 ft/s) |
| Max. process pressure | 11 bar a (159 psi a) |
| Measured variables | Volume flow, corrected volume flow, corrected methane volume flow, energy flow, methane fraction, calorific value, temperature |
| Measuring principle | Ultrasonic flow |
| Measuring range | Standard: 1 to 30 m/s (3.28 to 98.4 ft/s) Option: 0.3 to 30 m/s (0.98 to 98.4 ft/s) |
| Medium temperature range | 0 to +80 °C (+32 to +176 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Nominal diameter range | Single‐path version: DN 50 (2"), DN 80 (3") Two‐path version: DN 100 to 200 (4 to 8") |
| Outputs | 4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive) |
| Power Supply | DC 12 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output) DC 12 to 30 V (4‐20 mA HART, 4‐20 mA) DC 12 to 35 V (4‐20 mA HART, pulse/frequency/switch output, 4‐20 mA input) DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch Output) |
| Pressure approvals and certificates | PED |
| Product headline | The device for accurate, reliable biogas measurement with loop-powered technology. Inline flowmeter designed for measurement of wet biogas and digester gas under fluctuating process conditions. |
| Sensor features | Optimized for low pressure gas – specialized sensor design. No additional pressure loss – full-bore design. Process transparency – diagnostic capability. Multivariable device: flow, temperature and methane. Medium temperature: 0 to 80 °C (32 to 176 °F). Process pressure: 0.7 to 11 bar a (10.2 to 159 psi a). |
| Transmitter features | Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals. |
| Transmitter housing material | AlSi10Mg, coated; 1.4404 (316L) |
| Wetted materials | Sensor: 1.4404/1.4435 (316L) Transducer: HNBR Temperature sensor (option): AFM 34 |
Frequently Asked Questions
How do I get pricing for 9B2B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 9B2B?
9B2B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 9B2B?
Key specifications include Ambient temperature range: Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F); Degree of protection: IP66/67, type 4X enclosure; Digital communication: HART; Display/Operation: 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 9B2B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

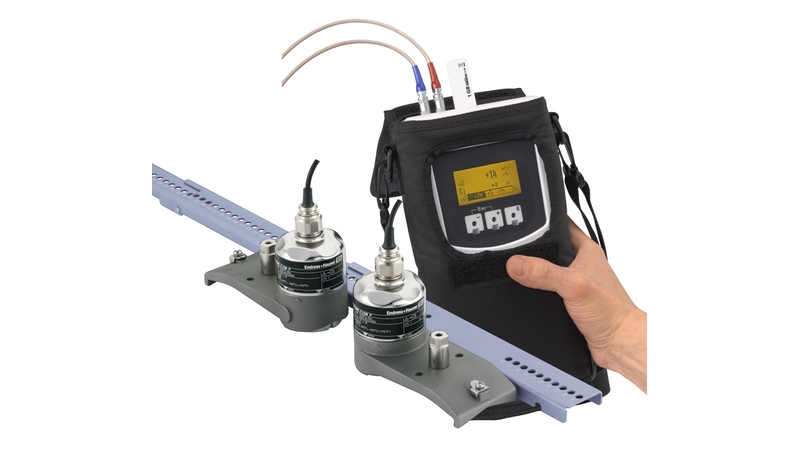

Endress+Hauser Endress+Hauser Proline Prosonic Flow 93Tultrasonic flowmeter
Endress+Hauser Endress+Hauser Proline Prosonic Flow E 100 ultrasonic flowmeter
Endress+Hauser Endress+Hauser Proline Prosonic Flow 92Fultrasonic flowmeter
Endress+Hauser Endress+Hauser Prosonic Flow E Heat ultrasonic flowmeter

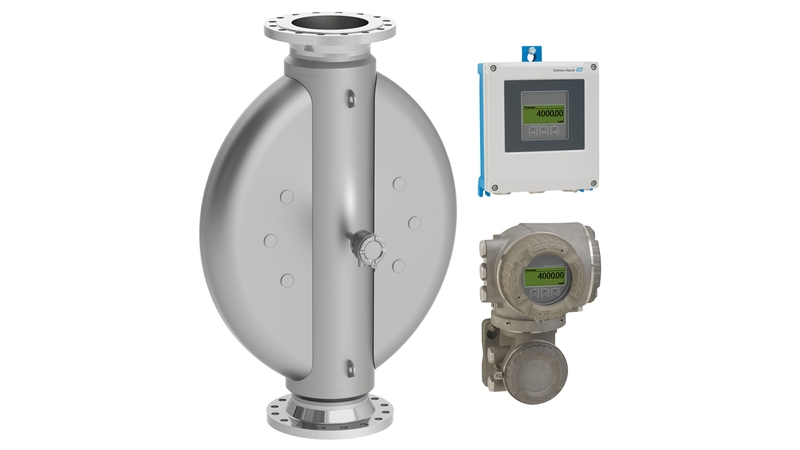

Endress+Hauser Endress+Hauser Proline Promass X 500 Coriolis flowmeter
