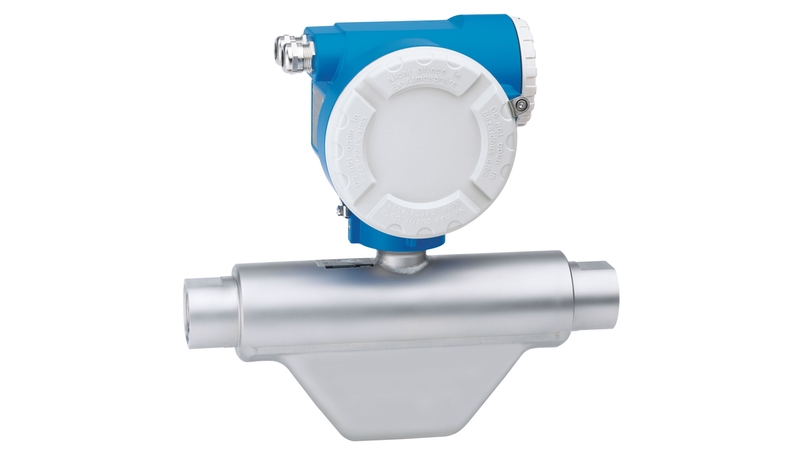

Endress+Hauser CNGmassCoriolis flowmeter
Endress+Hauser 8FF - Flow measurement - Degree of protection: IP67, type 4X enclosure; Power Supply: DC 10 to 30 V AC 20 to 28 V; Measuring range: 0 to 150 kg/min (0 to 330 lb/min).
Endress+Hauser 8FF is a Flow measurement catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Degree of protection: IP67, type 4X enclosure and Power Supply: DC 10 to 30 V AC 20 to 28 V.
The refueling application flowmeter with easy system integration. Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications.
The specification set recorded for this part number covers Measuring range: 0 to 150 kg/min (0 to 330 lb/min); Measuring principle: Coriolis; Outputs: Pulse/frequency/switch output (passive), phase‐shifted pulse; Nominal diameter range: DN 8 to 25 (⅜ to 1"); Display/Operation: No local operation Configuration via operating tools possible; Hazardous area approvals: ATEX, IECEx, NEC/CEC, FM, CSA, NEPSI, UL; Material certificates: 3.1 material; Wetted materials: Measuring tube: 1.4435 (316L) Connection: 1.4404 (316); Measured variables: Mass flow, density, temperature, volume flow; Max. measurement error: Mass flow: ±0.5 % of batch; Max. process pressure: 350 bar (5080 psi); Medium temperature range: –50 to +125 °C (–58 to +257 °F). The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | IP67, type 4X enclosure |
| Digital communication | Modbus RS485 |
| Display/Operation | No local operation Configuration via operating tools possible |
| Hazardous area approvals | ATEX, IECEx, NEC/CEC, FM, CSA, NEPSI, UL |
| Inputs | None |
| Material certificates | 3.1 material |
| Max. measurement error | Mass flow: ±0.5 % of batch |
| Max. process pressure | 350 bar (5080 psi) |
| Measured variables | Mass flow, density, temperature, volume flow |
| Measuring principle | Coriolis |
| Measuring range | 0 to 150 kg/min (0 to 330 lb/min) |
| Medium temperature range | –50 to +125 °C (–58 to +257 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), custody transfer PTB, BEW, LNE, Rosstandart, NTEP approvals |
| Nominal diameter range | DN 8 to 25 (⅜ to 1") |
| Outputs | Pulse/frequency/switch output (passive), phase‐shifted pulse |
| Power Supply | DC 10 to 30 V AC 20 to 28 V |
| Pressure approvals and certificates | CRN |
| Product headline | The refueling application flowmeter with easy system integration. Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications. |
| Sensor features | Excellent operational safety – reliable under extreme process conditions. Fewer process measuring points – multivariable measurement (flow, density, temp). Spacesaving installation – no in/outlet run needs. Flow rates up to 150 kg/min (330 lb/min). Process pressure up to 350 bar (5080 psi). |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter features | Easy operation – reduced to application needs. Fast commissioning – pre‐configured devices. Automatic recovery of data for servicing. Robust, ultra‐compact transmitter housing. Pulse output and Modbus RS485. |
| Transmitter housing material | Powder‐coated die‐cast aluminium |
| Wetted materials | Measuring tube: 1.4435 (316L) Connection: 1.4404 (316) |
Frequently Asked Questions
How do I get pricing for 8FF?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 8FF?
8FF is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 8FF?
Key specifications include Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Degree of protection: IP67, type 4X enclosure; Digital communication: Modbus RS485; Display/Operation: No local operation Configuration via operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 8FF ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

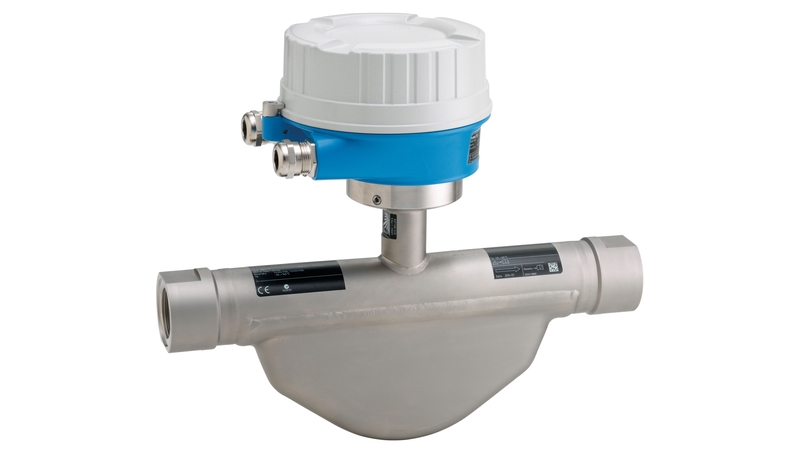

Endress+Hauser Endress+Hauser Proline Promass G 100 Coriolis flowmeter

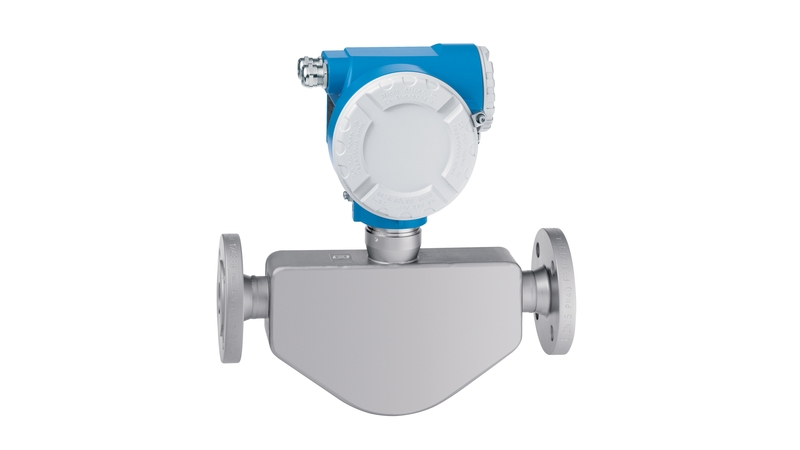

Endress+Hauser Endress+Hauser LPGmassCoriolis flowmeter

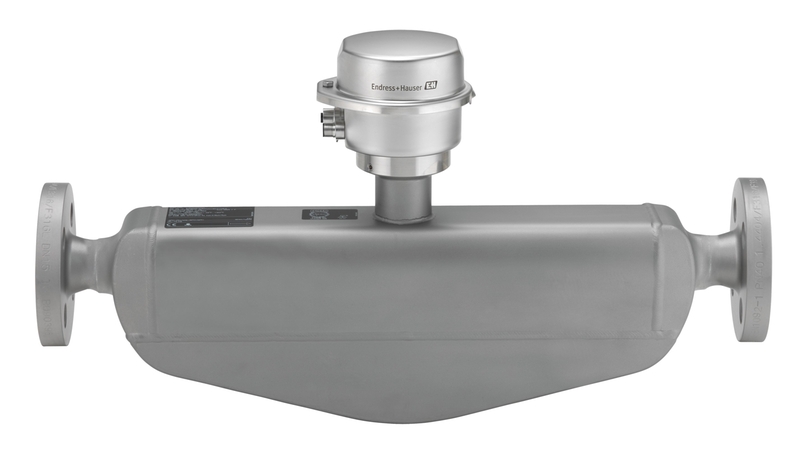

Endress+Hauser Endress+Hauser Proline Promass H 100 Coriolis flowmeter

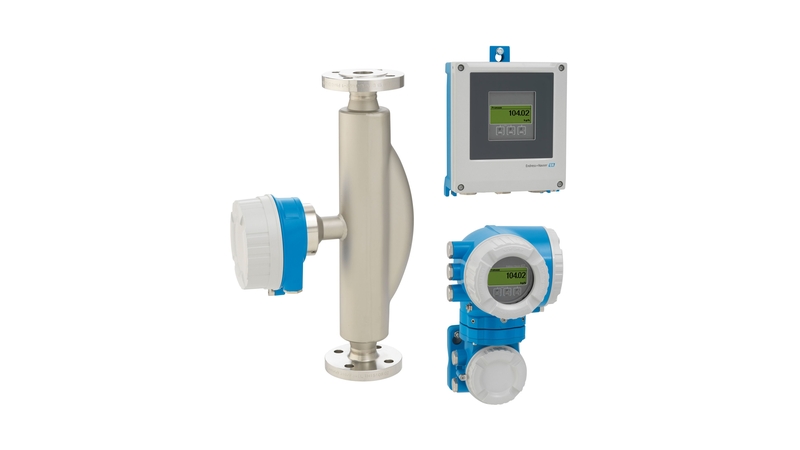

Endress+Hauser Endress+Hauser Proline Promass F 500 Coriolis flowmeter

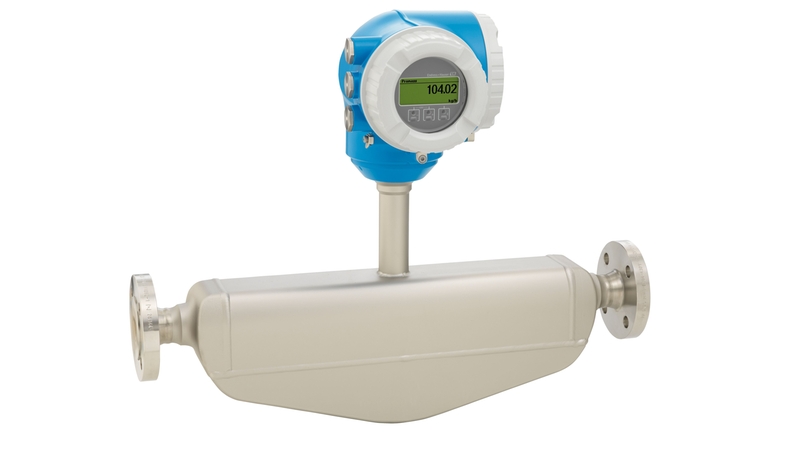

Endress+Hauser Endress+Hauser Proline Promass H 300 Coriolis flowmeter
