Endress+Hauser Proline Promass E 200 / 8E2B
Endress+Hauser 8E2B - Flow measurement - Degree of protection: IP66/67, type 4X enclosure; Measuring range: 0 to 70 000 kg/h (0 to 2570 lb/min); Outputs: 4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive).
The Endress+Hauser 8E2B is part of the Flow measurement range in our industrial catalog. The manufacturer's published data for this part number specifies Degree of protection: IP66/67, type 4X enclosure and Measuring range: 0 to 70 000 kg/h (0 to 2570 lb/min).
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Published specifications for this part include Outputs: 4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive); Nominal diameter range: DN 8 to 50 (⅜ to 2"); Product safety: CE, C-Tick, EAC marking; Hazardous area approvals: ATEX, IECEx, cCSAus, NEPSI, INMETRO; Material certificates: 3.1 material; Wetted materials: Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L); Max. process pressure: PN 100, Class 600, 63K; Medium temperature range: –40 to +140 °C (–40 to +284 °F); Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Sensor housing material: 1.4301 (304), corrosion resistant; Transmitter housing material: AlSi10Mg, coated, 1.4404 (316L); Inputs: None. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | IP66/67, type 4X enclosure |
| Digital communication | HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, cCSAus, NEPSI, INMETRO |
| Hygienic approvals and certificates | 3-A |
| Inputs | None |
| Material certificates | 3.1 material |
| Max. measurement error | Mass flow (liquid): ±0.25 % Volume flow (liquid): ±0.25 % Mass flow (gas): ±0.75 % Density (liquid): ±0.0005 g/cm³ |
| Max. process pressure | PN 100, Class 600, 63K |
| Measured variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density |
| Measuring range | 0 to 70 000 kg/h (0 to 2570 lb/min) |
| Medium temperature range | –40 to +140 °C (–40 to +284 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Nominal diameter range | DN 8 to 50 (⅜ to 2") |
| Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL, PED, CRN, 3-A |
| Outputs | 4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive) |
| Power Supply | DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch) DC 18 to 30 V (20 mA HART, 4‐20 mA) DC 9 to 32 V (PROFIBUS PA) |
| Pressure approvals and certificates | PED, CRN |
| Product headline | Genuine loop-powered flowmeter for minimized cost of ownership. Accurate measurement of liquids and gases for a wide range of standard applications. |
| Product safety | CE, C-Tick, EAC marking |
| Sensor features | Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Compact dual-tube sensor. std_successorproducts_product_differentiating_tech_features_7694_1530102815. Process pressure up to 100 bar (1450 psi). |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter features | Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area). |
| Transmitter housing material | AlSi10Mg, coated, 1.4404 (316L) |
| Wetted materials | Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L) |
Frequently Asked Questions
How do I get pricing for 8E2B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 8E2B?
8E2B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 8E2B?
Key specifications include Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Degree of protection: IP66/67, type 4X enclosure; Digital communication: HART, PROFIBUS PA, FOUNDATION Fieldbus; Display/Operation: 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available. The full specification table on this page lists every published attribute for this part.
How quickly can 8E2B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Proline Promass E 100 Coriolis flowmeter
Endress+Hauser Endress+Hauser Proline Promass E 200 Coriolis flowmeter

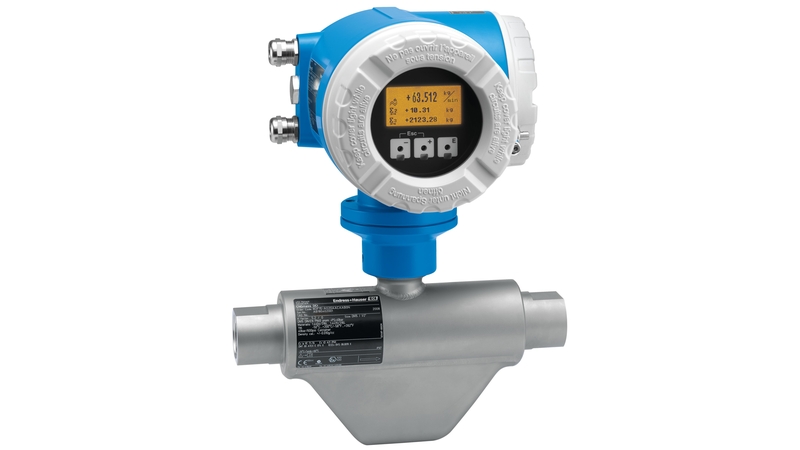

Endress+Hauser Endress+Hauser CNGmass DCICoriolis flowmeter
