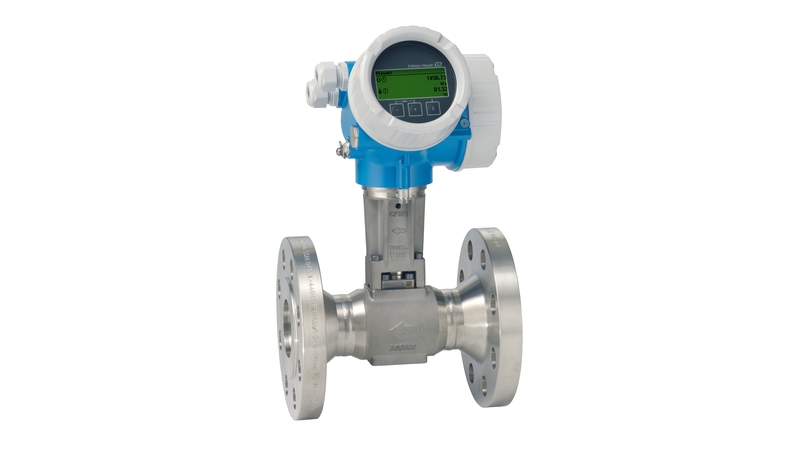

Endress+Hauser Proline Prowirl F 200 / 7F2B
Endress+Hauser 7F2B - Flow measurement - Outputs: 4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive); Nominal diameter range: DN 15 to 300 (½ to 12"); Hazardous area approvals: ATEX, IECEx, cCSAus, EAC.
The Endress+Hauser 7F2B is part of the Flow measurement range in our industrial catalog. The manufacturer's published data for this part number specifies Outputs: 4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive) and Nominal diameter range: DN 15 to 300 (½ to 12").
Compact version: IP66/67, type 4X enclosure Sensor remote version: IP66/67, type 4X enclosure Transmitter remote version: IP66/67, type 4X enclosure
Key manufacturer data on file for this item includes Hazardous area approvals: ATEX, IECEx, cCSAus, EAC; Max. process pressure: PN 40, Class 300, 20K; Sensor housing material: Sensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M); Transmitter housing material: AlSi10Mg, coated; 1.4404 (316L); Inputs: Current input 4‐20 mA (passive); Digital communication: HART, PROFIBUS PA, FOUNDATION Fieldbus; Pressure approvals and certificates: PED, CRN, AD 2000. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature range | Compact version (standard): –40 to +80 °C (–40 to +176 °F) Compact version (option): –50 to +80 °C (–58 to +176 °F) Remote version (standard): –40 to +85 °C (–40 to +185 °F) Remote version (option): –50 to +85 °C (–58 to +185 °F) |
|---|---|
| Degree of protection | Compact version: IP66/67, type 4X enclosure Sensor remote version: IP66/67, type 4X enclosure Transmitter remote version: IP66/67, type 4X enclosure |
| Digital communication | HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, cCSAus, EAC |
| Inputs | Current input 4‐20 mA (passive) |
| Material certificates | 3.1 material NACE MR0175/MR0103, PMI (on request); welding test acc. to ISO 15614‐1, similar to ASME IX (on request) |
| Max. measurement error | Volume flow (liquid): ±0.75 % Volume flow (steam, gas): ±1.00 % Mass flow (liquid): ±0.85% Mass flow (steam,, gas): ±1.7 % |
| Max. process pressure | PN 40, Class 300, 20K |
| Measured variables | Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature |
| Measuring range | Liquid: 0.16 to 2412 m³/h (0.09 to 1420 ft³/min) depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F) Steam, gas: 2 to 32 166 m³/h (1.18 to 18 932 ft³/min) depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a) |
| Medium temperature range | Standard: –40 to +260 °C (–40 to +500 °F) High/low temperature (option): –200 to +400 °C (–328 to +752 °F) High/low temperature (on request): –200 to +450 °C (–328 to +842 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Nominal diameter range | DN 15 to 300 (½ to 12") |
| Outputs | 4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive) |
| Power Supply | DC 12 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output) DC 12 to 30 V (4‐20 mA HART, 4‐20 mA) DC 12 to 35 V (4‐20 mA HART, pulse/frequency/switch output, 4‐20 mA input) DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output) |
| Pressure approvals and certificates | PED, CRN, AD 2000 |
| Product headline | std_productprofile_product_usp_8110. std_productprofile_product_usp2_38908_1511797531. Suitable for a wide range of applications; optimized for steam applications. |
| Sensor features | std_productprofile_product_benefits_8113. High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer. std_productprofile_product_benefits_8115. std_productprofile_product_differentiating_tech_features_6578. std_productprofile_product_differentiating_tech_features_6577. std_successorproducts_product_differentiating_tech_features_6580_1511885829. |
| Sensor housing material | Sensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M) |
| Transmitter features | Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Display module with data transfer function. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area). |
| Transmitter housing material | AlSi10Mg, coated; 1.4404 (316L) |
| Wetted materials | Measuring tube: 1.4408 (C3FM); CX2MW similar to Alloy C22, 2.4602 DSC sensor: 1.4435 (316/316L); UNS N06022 similar to Alloy C22, 2.4602 Connection: 1.4404 (F316/F316L); CX2MW similar to Alloy C22, 2.4602; 1.4408 (CF3M) |
Frequently Asked Questions
How do I get pricing for 7F2B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 7F2B?
7F2B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 7F2B?
Key specifications include Ambient temperature range: Compact version (standard): –40 to +80 °C (–40 to +176 °F) Compact version (option): –50 to +80 °C (–58 to +176 °F) Remote version (standard): –40 to +85 °C (–40 to +185 °F) Remote version (option): –50 to +85 °C (–58 to +185 °F); Degree of protection: Compact version: IP66/67, type 4X enclosure Sensor remote version: IP66/67, type 4X enclosure Transmitter remote version: IP66/67, type 4X enclosure; Digital communication: HART, PROFIBUS PA, FOUNDATION Fieldbus; Display/Operation: 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available. The full specification table on this page lists every published attribute for this part.
How quickly can 7F2B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Proline Prowirl D 200 / 7D2B

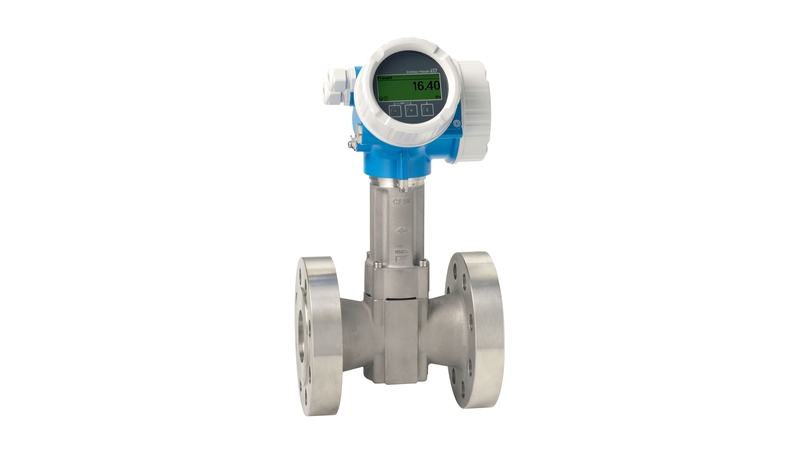

Endress+Hauser Endress+Hauser Proline Prowirl O 200 / 7O2B
