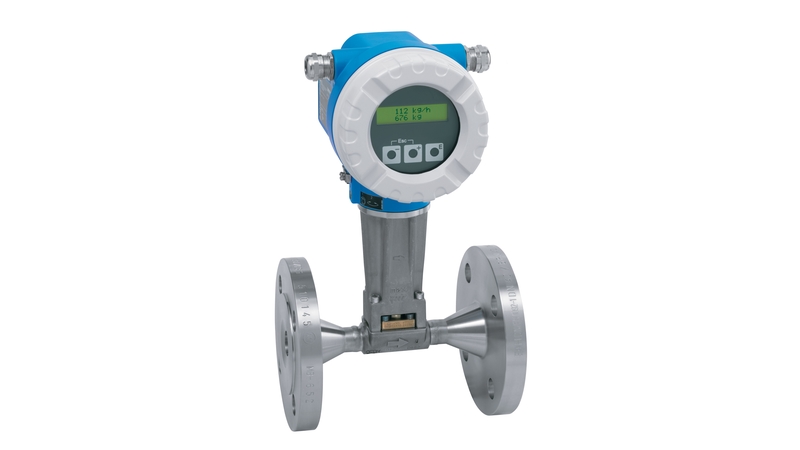

Endress+Hauser Prowirl 73F
| Degree of protection | IP67 NEMA 4x |
|---|---|
| Digital communication | HART PROFIBUS PA FOUNDATION Fieldbus |
| Display/Operation | Two line liquid Crystal display Push nbuttons Quick Setup |
| Hazardous area approvals | ATEX FM CSA TIIS NEPSI/IEC on request |
| Inputs | pressure input using PROFIBUS PA, HART or FOUNDATION Fieldbus for superheated steam temperature input using HART for delta heat |
| Max. measurement error | Volume flow: +/-1.0% Mass flow: +/-1.7%-2.3% (saturated steam) |
| Max. process pressure | PN16...40 CL 150...300 JIS10...20K |
| Measuring principle | Vortex |
| Measuring range | 0.19...5'210m3/h |
| Medium temperature range | -200...+400°C (-328...+752°F) up to +450°C / 842°F on request |
| Nominal diameter range | DN15...300 1/2"...12" |
| Outputs | 4...20mA Pulse Frequency Status PFM |
| Product headline | Volume flow meter for measurement of standard liquid / gas /steam applications Flow, temperature probe and flow computer in one device |
Frequently Asked Questions
How do I get pricing for 73F?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 73F?
73F is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 73F?
Key specifications include Degree of protection: IP67 NEMA 4x; Digital communication: HART PROFIBUS PA FOUNDATION Fieldbus; Display/Operation: Two line liquid Crystal display Push nbuttons Quick Setup; Hazardous area approvals: ATEX FM CSA TIIS NEPSI/IEC on request. The full specification table on this page lists every published attribute for this part.
How quickly can 73F ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Prowirl 72W

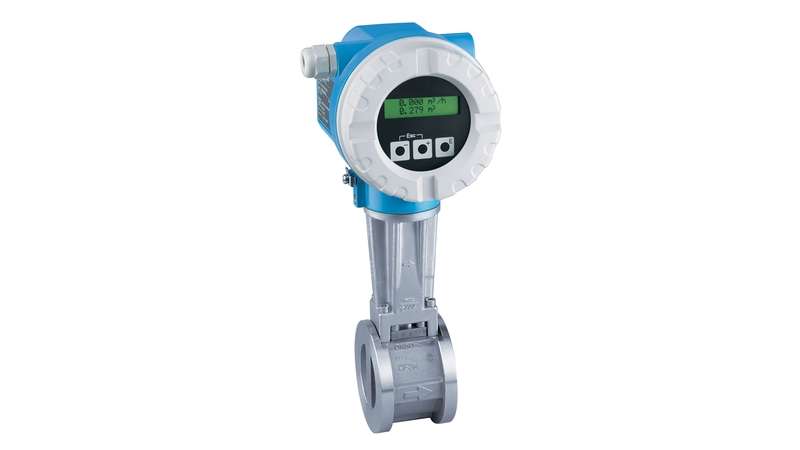

Endress+Hauser Endress+Hauser Prowirl 73W
Endress+Hauser Endress+Hauser Prowirl 72F

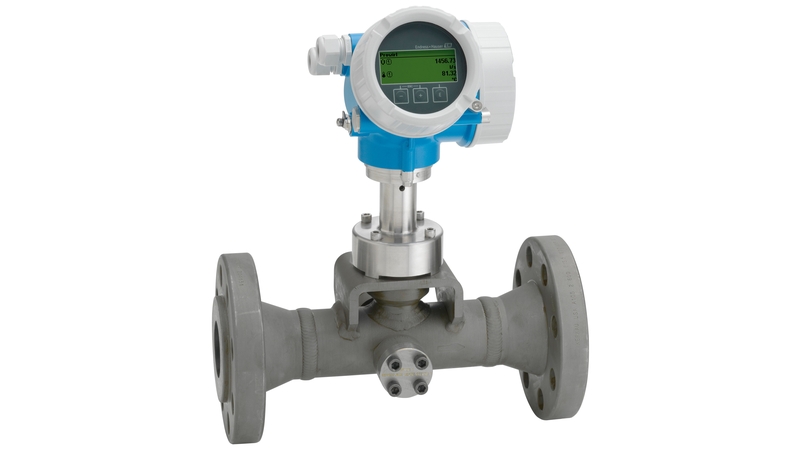

Endress+Hauser Endress+Hauser Proline Prowirl C 200 Only available for North…
