Endress+Hauser Proline t-mass A 150thermal mass flowmeter
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | IP66/67, type 4X enclosure |
| Digital communication | HART |
| Display/Operation | 4‐line display with push Buttons Configuration via local display and operating tools possible |
| Hazardous area approvals | ATEX, IECEx, cCSAus |
| Inputs | Status input |
| Max. measurement error | 3 % o.r. 4 % o.r. 5 % o.f.s. (depending on chosen option of ordering feature "Calibration flow") |
| Max. process pressure | PN 40, Class 300 |
| Measured variables | Mass flow, temperature, corrected volume flow, FAD volume flow |
| Measuring principle | Thermal |
| Measuring range | 0.5 to 910 kg/h (1.1 to 2002 lb/h) 0.5 to 1365 kg/h (1.1 to 3003 lb/h) (for air, depending on chosen option of ordering feature "Calibration flow") |
| Medium temperature range | –40 to +100 °C (–40 to +212 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR |
| Nominal diameter range | DN 15 to 50 (½ to 2") |
| Outputs | 4‐20 mA HART (active) Pulse/frequency/switch output (passive) |
| Power Supply | DC 18 to 30 V |
| Pressure approvals and certificates | PED, CRN |
| Product headline | The flowmeter for cost-effective measurement and easy monitoring of utility gases. Suitable for air, nitrogen, carbon dioxide and argon in small line sizes. |
| Sensor features | Optimal process monitoring – easy measurement even at low pressures and flow velocities. Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free. Reliable flow trending – multivariable measurement. Inline version: DN 15 to 50 (½ to 2"). Process pressure up to PN 40, Class 300. A variety of process connections available. |
| Transmitter features | Fast and efficient commissioning – guided operating menus. High plant availability – self‐diagnostics and error monitoring. Automatic recovery of data for servicing. Device in compact version with DC 24 V power supply. 4-20 mA HART, pulse/frequency/switch output. Compact and robust transmitter. |
| Transmitter housing material | AlSi10Mg, coated |
| Wetted materials | Transducer: 1.4404 (316L) Insertion tube: 1.4404 (316L) Measuring tube: 1.4404 (316L); 1.4435 (316L) Connection: 1.4404 (F316/F316L); 1.4404 (316L); 1.4435 (316L) |
Frequently Asked Questions
How do I get pricing for 6AAB?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 6AAB?
6AAB is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 6AAB?
Key specifications include Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Degree of protection: IP66/67, type 4X enclosure; Digital communication: HART; Display/Operation: 4‐line display with push Buttons Configuration via local display and operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 6AAB ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Proline Promag W 10 electromagnetic flowmeter

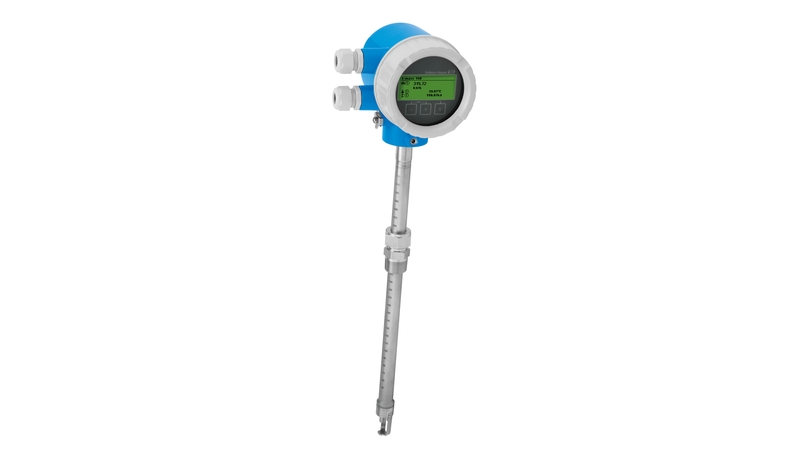

Endress+Hauser Endress+Hauser Proline t-mass B 150thermal mass flowmeter

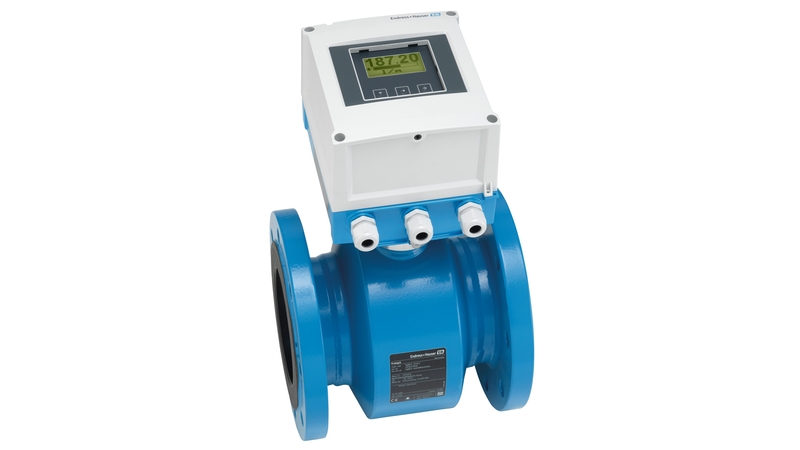

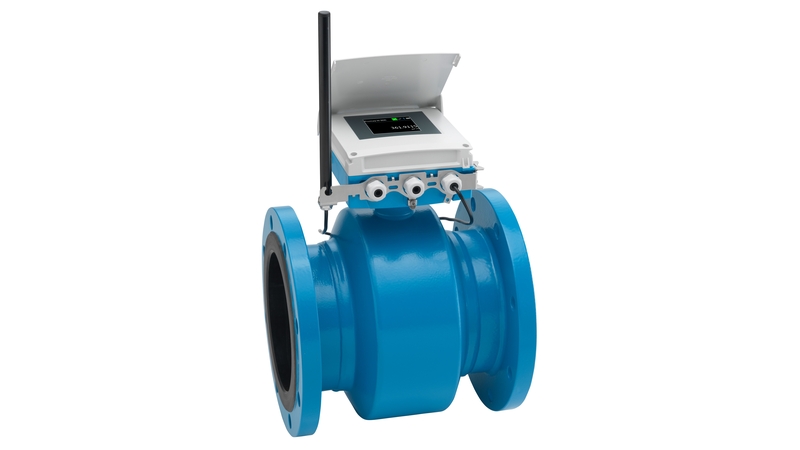

Endress+Hauser Endress+Hauser Proline Promag W 800 electromagnetic flowmeter

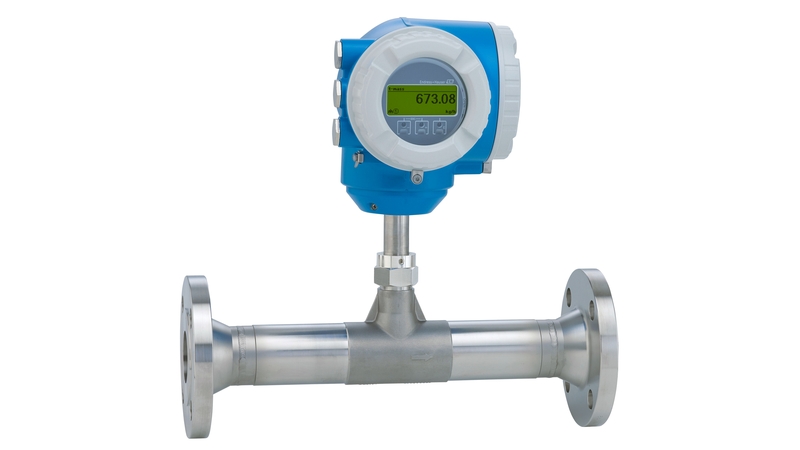

Endress+Hauser Endress+Hauser Proline t-mass F 300thermal mass flowmeter

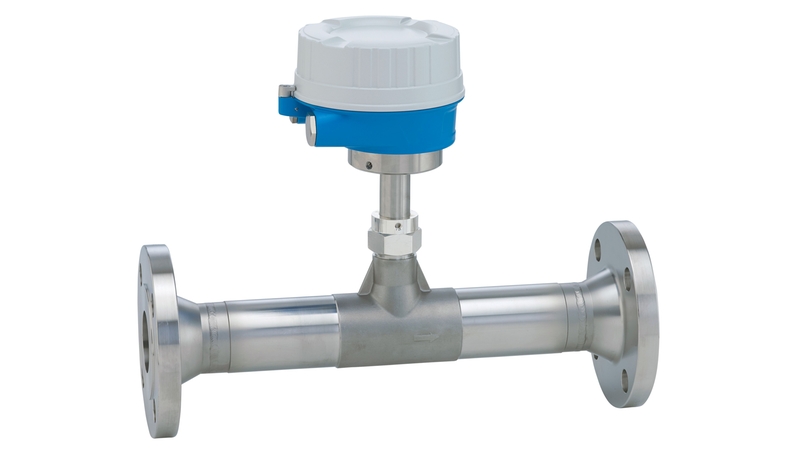

Endress+Hauser Endress+Hauser Proline t-mass F 500thermal mass flowmeter
