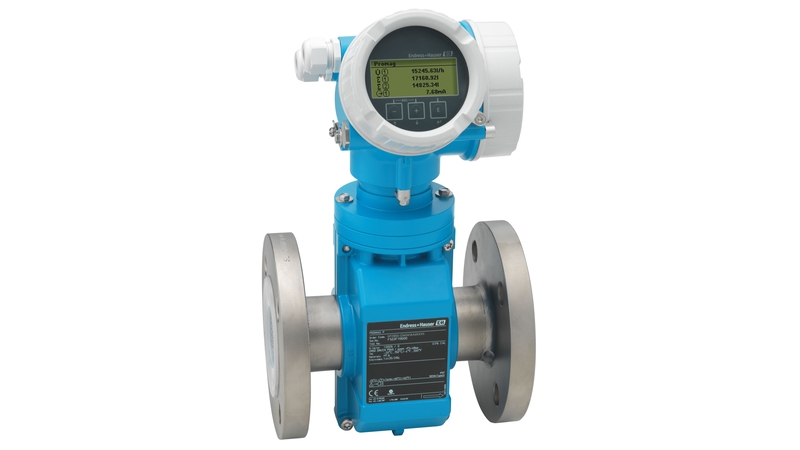

Endress+Hauser Proline Promag P 200 electromagnetic flowmeter
Endress+Hauser 5P2B - Flow measurement - Degree of protection: IP66/67, type 4X enclosure; Power Supply: DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output); Measuring range: 4 dm3/min to 1100 m3/h (1 to 4850 gal/min).
This listing covers the Endress+Hauser 5P2B, a part number in the Flow measurement category. The manufacturer's published data for this part number specifies Degree of protection: IP66/67, type 4X enclosure and Power Supply: DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output).
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Published specifications for this part include Measuring range: 4 dm3/min to 1100 m3/h (1 to 4850 gal/min); Measuring principle: Electromagnetic; Outputs: 4‐20 mA HART (passive) Pulse/frequency/switch output (passive); Nominal diameter range: DN 15 to 200 (½ to 8"); Product safety: CE, C-Tick; Hazardous area approvals: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, JPN, UK Ex, KC; Material certificates: 3.1 material; Measured variables: Volume flow, mass flow; Max. measurement error: Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s); Max. process pressure: PN 40, Class 300, 20K; Sensor housing material: AlSi10Mg, coated; Transmitter housing material: AlSi10Mg, coated. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | IP66/67, type 4X enclosure |
| Digital communication | HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, JPN, UK Ex, KC |
| Hygienic approvals and certificates | Drinking water approvals: ACS, NSF 61 |
| Inputs | None |
| Material certificates | 3.1 material |
| Max. measurement error | Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s) |
| Max. process pressure | PN 40, Class 300, 20K |
| Measured variables | Volume flow, mass flow |
| Measuring principle | Electromagnetic |
| Measuring range | 4 dm3/min to 1100 m3/h (1 to 4850 gal/min) |
| Medium temperature range | Liner material PFA: –20 to +150 °C (–4 to +302 °F) Liner material PTFE: –40 to +130 °C (–40 to +266 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Nominal diameter range | DN 15 to 200 (½ to 8") |
| Outputs | 4‐20 mA HART (passive) Pulse/frequency/switch output (passive) |
| Power Supply | DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output) |
| Pressure approvals and certificates | CRN, PED |
| Product headline | The flowmeter for highest medium temperatures with genuine loop-powered technology. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures. |
| Product safety | CE, C-Tick |
| Sensor features | Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 200 (8"). All common Ex approvals. Liner made of PTFE or PFA. |
| Sensor housing material | AlSi10Mg, coated |
| Transmitter features | Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area). |
| Transmitter housing material | AlSi10Mg, coated |
| Wetted materials | Liner: PFA; PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum |
Frequently Asked Questions
How do I get pricing for 5P2B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 5P2B?
5P2B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 5P2B?
Key specifications include Ambient temperature range: Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F); Degree of protection: IP66/67, type 4X enclosure; Digital communication: HART, PROFIBUS PA, FOUNDATION Fieldbus; Display/Operation: 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available. The full specification table on this page lists every published attribute for this part.
How quickly can 5P2B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Proline Promag P 100 electromagnetic flowmeter

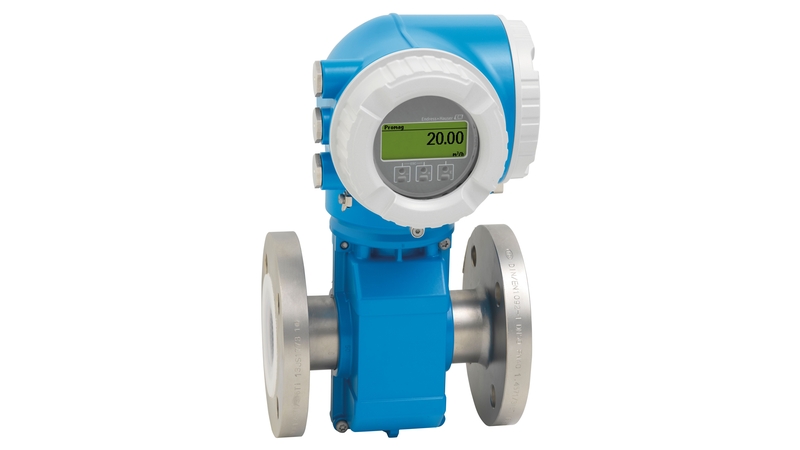

Endress+Hauser Endress+Hauser Proline Promag P 300 electromagnetic flowmeter
Endress+Hauser Endress+Hauser Proline Promag L 400 / 5L4C

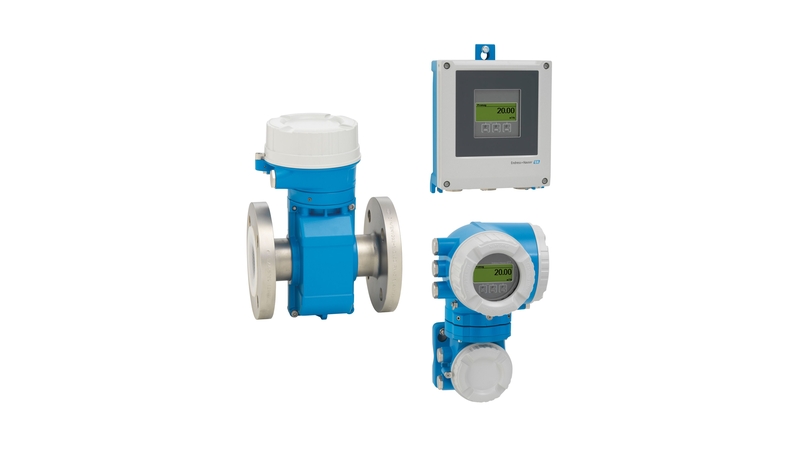

Endress+Hauser Endress+Hauser Proline Promag P 500 electromagnetic flowmeter
