Endress+Hauser Proline Promag H 100 electromagnetic flowmeter
Endress+Hauser 5H1B - Flow measurement - Degree of protection: Standard: IP66/67, type 4X enclosure Option: IP69; Power Supply: DC 20 to 30 V; Measuring range: 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min).
Endress+Hauser 5H1B is a Flow measurement catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Degree of protection: Standard: IP66/67, type 4X enclosure Option: IP69 and Power Supply: DC 20 to 30 V.
Specialist for hygienic applications with an ultra-compact transmitter. Multivariable measurement of flow, temperature and conductivity. Dedicated to demanding applications in the food and beverage as well as in life sciences industries.
Published specifications for this part include Measuring range: 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min); Measuring principle: Electromagnetic; Outputs: 4‐20 mA HART (active) Pulse/frequency/switch output (passive); Nominal diameter range: DN 2 to 150 (¹⁄₁₂ to 6"); Product safety: CE, C-tick; Hazardous area approvals: ATEX, IECEx, cCSAus, INMETRO, EAC; Material certificates: 3.1 material; Max. process pressure: PN 40, Class 150, 20K; Medium temperature range: –20 to +150 °C (–4 to +302 °F); Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Sensor housing material: 1.4301 (304), corrosion resistant; Transmitter housing material: Compact: AlSi10Mg, coated Compact/ultra‐compact: 1.4301 (304). See the Specifications tab on this page for the full technical table.
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | Standard: IP66/67, type 4X enclosure Option: IP69 |
| Digital communication | HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET |
| Display/Operation | 4‐line backlit display available (no local operation) Configuration via web browser and operating tools possible |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, EAC |
| Hygienic approvals and certificates | Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP |
| Inputs | None |
| Marine approvals and certificates | LR approval, DNV approval, ABS approval, BV approval |
| Material certificates | 3.1 material |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s) |
| Max. process pressure | PN 40, Class 150, 20K |
| Measured variables | Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity |
| Measuring principle | Electromagnetic |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation) |
| Nominal diameter range | DN 2 to 150 (¹⁄₁₂ to 6") |
| Outputs | 4‐20 mA HART (active) Pulse/frequency/switch output (passive) |
| Power Supply | DC 20 to 30 V |
| Pressure approvals and certificates | PED, CRN |
| Product headline | Specialist for hygienic applications with an ultra-compact transmitter. Multivariable measurement of flow, temperature and conductivity. Dedicated to demanding applications in the food and beverage as well as in life sciences industries. |
| Product safety | CE, C-tick |
| Sensor features | Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Integrated temperature measurement. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP, SIP cleanable. |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter features | Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. High degree of protection: IP69. Local display available. |
| Transmitter housing material | Compact: AlSi10Mg, coated Compact/ultra‐compact: 1.4301 (304) |
| Wetted materials | Liner: PFA Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone) Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum |
Frequently Asked Questions
How do I get pricing for 5H1B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 5H1B?
5H1B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 5H1B?
Key specifications include Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Degree of protection: Standard: IP66/67, type 4X enclosure Option: IP69; Digital communication: HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET; Display/Operation: 4‐line backlit display available (no local operation) Configuration via web browser and operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 5H1B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

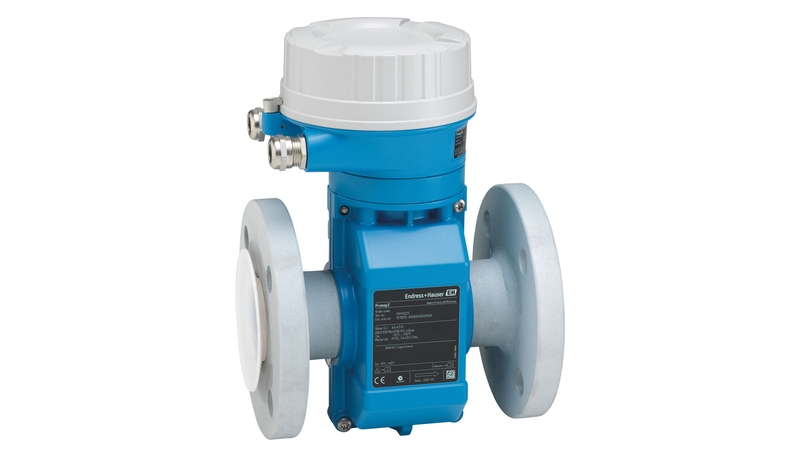

Endress+Hauser Endress+Hauser Proline Promag E 100 electromagnetic flowmeter
