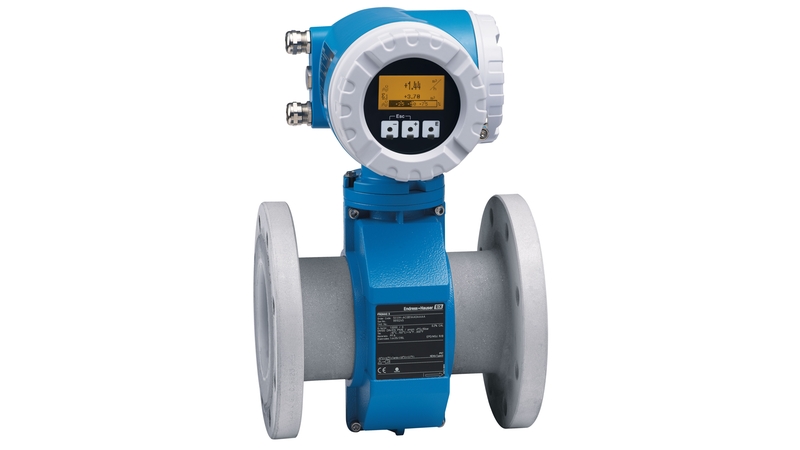

Endress+Hauser Proline Promag 55S electromagnetic flowmeter
Endress+Hauser 55S - Flow measurement - Power Supply: AC 20 to 260 V DC 20 to 64 V; Measuring range: 0.06 dm3/min to 600 m3/h (0.015 gal/min to 2650 gal/min); Measuring principle: Electromagnetic.
Endress+Hauser 55S is a Flow measurement catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Power Supply: AC 20 to 260 V DC 20 to 64 V and Measuring range: 0.06 dm3/min to 600 m3/h (0.015 gal/min to 2650 gal/min).
Standard: IP 67 (Type 4X enclosure) for transmitter and sensor Optional: IP 68 (Type 6P enclosure) for remote version of Promag S sensor
The specification set recorded for this part number covers Measuring principle: Electromagnetic; Nominal diameter range: DN 15...600 1/2"...24"; Product safety: CE, C-tick, EAC marking; Hazardous area approvals: ATEX, FM, CSA, UK Ex; Material certificates: 3.1 material; Measured variables: Volume flow, electrical conductivity, mass flow; Max. process pressure: PN 40, Cl. 300, JIS 20 K; Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Sensor housing material: Aluminum coated AlSi10Mg, carbon steel with protective varnish; Transmitter housing material: Powder-coated die-cast aluminum; Inputs: Status Current input; Hygienic approvals and certificates: Drinking water approval:ACS, KTW-BWGL, NSF 61, WRAS BS 6920. See the Specifications tab on this page for the full technical table.
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | Standard: IP 67 (Type 4X enclosure) for transmitter and sensor Optional: IP 68 (Type 6P enclosure) for remote version of Promag S sensor |
| Digital communication | HART, PROFIBUS DP/PA, FOUNDATION Fieldbus |
| Display/Operation | Liquid-crystal display: illuminated, four lines with 16 characters per line Onsite operation with three optical sensor keys |
| Hazardous area approvals | ATEX, FM, CSA, UK Ex |
| Hygienic approvals and certificates | Drinking water approval:ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
| Inputs | Status Current input |
| Material certificates | 3.1 material |
| Max. measurement error | Volume flow: ±0.5 % o.r.± 1 mm/s (0.04 in/s) Option: ±0.2 % o.r. ± 2 mm/s (0.08 in/s) |
| Max. process pressure | PN 40, Cl. 300, JIS 20 K |
| Measured variables | Volume flow, electrical conductivity, mass flow |
| Measuring principle | Electromagnetic |
| Measuring range | 0.06 dm3/min to 600 m3/h (0.015 gal/min to 2650 gal/min) |
| Medium temperature range | 0 to +60 °C (+32 to +140 °F), 0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F), –20 to +180 °C (–4 to +356 °F), –20 to +150 °C (–4 to +266 °F) |
| Nominal diameter range | DN 15...600 1/2"...24" |
| Outputs | 4...20mA (active/passive) Pulse-/ Frequency output (active/passive) Two status outputs |
| Power Supply | AC 20 to 260 V DC 20 to 64 V |
| Pressure approvals and certificates | CRN, PED |
| Product headline | The flowmeter with outstanding abrasion resistance and integrated solids content diagnostics. Superb signal stability due to unique signal processing. Ideal for the most demanding applications with high solids content and high abrasion. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Maximum safety – industry-optimized measuring electrodes and linings. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Intensified coil system. Large range of liners. Solids content up to 80 % by weight. |
| Sensor housing material | Aluminum coated AlSi10Mg, carbon steel with protective varnish |
| Transmitter features | Highest performance – with integrated solids measurement for demanding fluids. Highest safety – integrated electrode cleaning. Automatic recovery of data for servicing. 4-line backlit display with touch control. Two switch outputs. HART, PROFIBUS PA/DP, FOUNDATION Fieldbus. |
| Transmitter housing material | Powder-coated die-cast aluminum |
| Wetted materials | Liner: Polyurethane, Hard rubber, PFA, PTFE, Natural rubber Electrodes: 1.4435/304L, Alloy C-22, Tantalum, Platinum, Duplex 1.4465, Tungsten carbide, Titanum |
Frequently Asked Questions
How do I get pricing for 55S?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 55S?
55S is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 55S?
Key specifications include Ambient temperature range: –40 to +60 °C (–40 to +140 °F); Degree of protection: Standard: IP 67 (Type 4X enclosure) for transmitter and sensor Optional: IP 68 (Type 6P enclosure) for remote version of Promag S sensor; Digital communication: HART, PROFIBUS DP/PA, FOUNDATION Fieldbus; Display/Operation: Liquid-crystal display: illuminated, four lines with 16 characters per line Onsite operation with three optical sensor keys. The full specification table on this page lists every published attribute for this part.
How quickly can 55S ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
