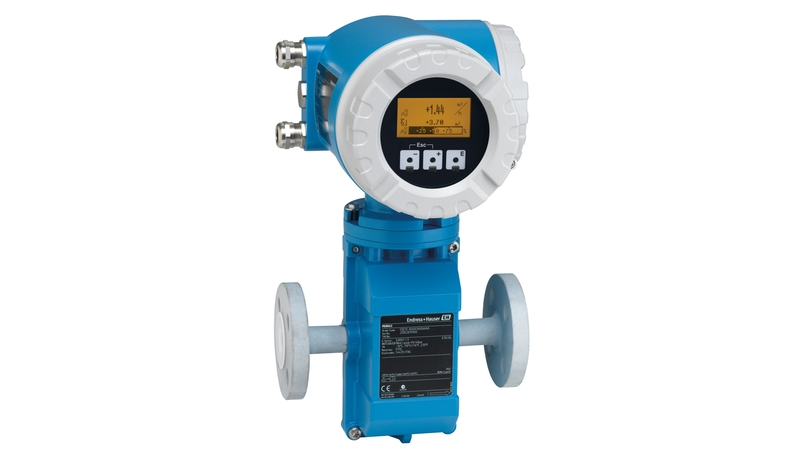

Endress+Hauser Promag 53E
| Ambient temperature range | –10 to +60 °C (+14 to +140 °F) |
|---|---|
| Degree of protection | Compact version: IP67, type 4X enclosure Sensor remote version (standard): IP67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure Transmitter remote version: IP67, type 4X enclosure |
| Digital communication | HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, MODBUS RS485, EtherNet/IP |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible |
| Hazardous area approvals | ATEX, cCSAus |
| Inputs | 2 modular inputs: Status input 0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv) |
| Material certificates | 3.1 material |
| Max. measurement error | Volume flow: ±0.2 % o.r. ± 2 mm/s (0.08 in/s) |
| Max. process pressure | PN 40, Class 150, 20K |
| Measured variables | Volume flow |
| Measuring range | 4 dm³/min to 9600 m³/h (1 to 44 000 gal/min) |
| Medium temperature range | –10 to +110 °C (+14 to +230 °F) |
| Metrological approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Nominal diameter range | DN 15 to 600 (½ to 24") |
| Outputs | 4 modular outputs: 0‐20 mA (active)/4‐20 mA (active/passive) Pulse/frequency (passive) Relay output Switch output (passive) |
| Power Supply | DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz) |
| Pressure approvals and certificates | PED |
| Product headline | std_productprofile_product_usp_34654_1508938758. Fully suitable for basic applications in the chemical and process industry. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Cost-effective sensor – ideal solution for basic requirements. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 600 (24"). Ex approvals for Zone 2. Liner made of PTFE. |
| Sensor housing material | DN 15 to 300 (½ to 12"): AlSi10Mg, coated DN 350 to 600 (14 to 24"): Carbon steel with protective varnish Sensor connection housing: AlSi10Mg, coated |
| Transmitter features | std_productprofile_product_benefits_34656_1508940491. std_productprofile_product_benefits_34658_1508940614. std_productprofile_product_benefits_34657_1508940613. std_successorproducts_product_differentiating_tech_features_35324_1509527963. std_successorproducts_product_differentiating_tech_features_35325_1509527962. std_successorproducts_product_differentiating_tech_features_35326_1509527956. |
| Transmitter housing material | Powder‐coated die‐cast aluminum |
| Wetted materials | Liner: PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum |
Frequently Asked Questions
How do I get pricing for 53E?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 53E?
53E is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 53E?
Key specifications include Ambient temperature range: –10 to +60 °C (+14 to +140 °F); Degree of protection: Compact version: IP67, type 4X enclosure Sensor remote version (standard): IP67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure Transmitter remote version: IP67, type 4X enclosure; Digital communication: HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, MODBUS RS485, EtherNet/IP; Display/Operation: 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 53E ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

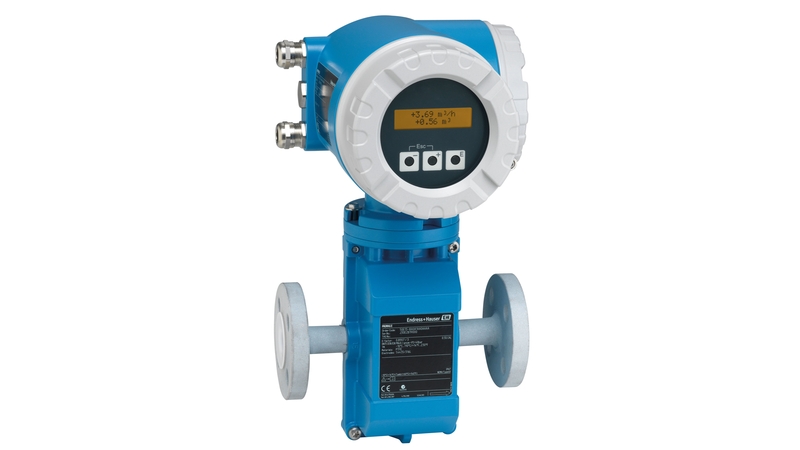

Endress+Hauser Endress+Hauser Promag 50E

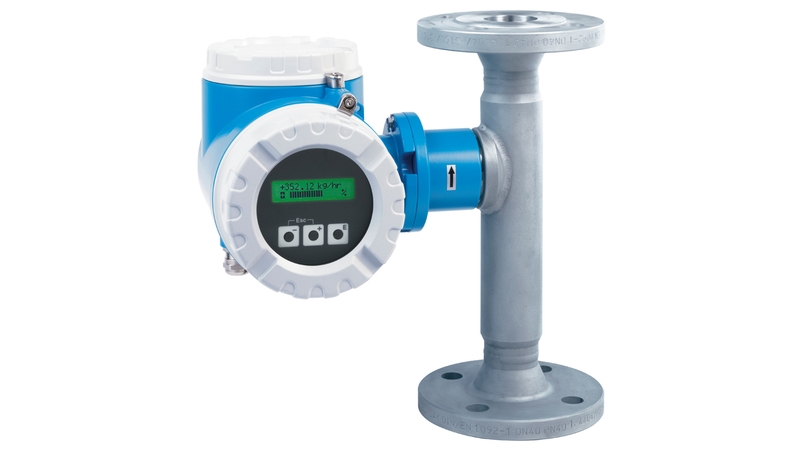

Endress+Hauser Endress+Hauser t-mass 65F

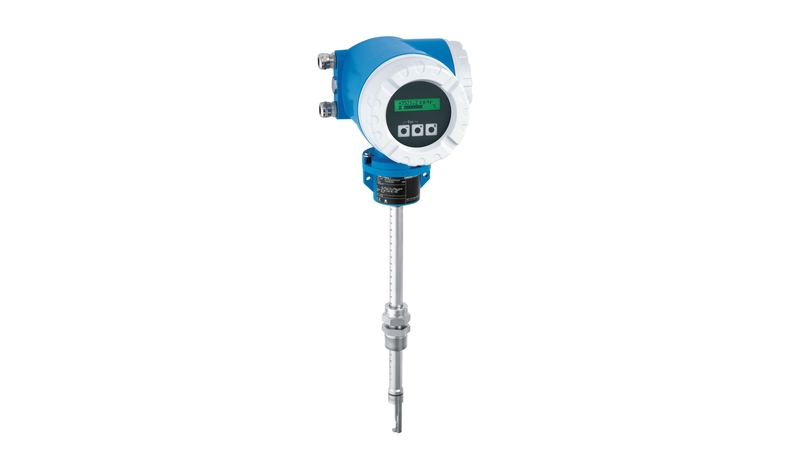

Endress+Hauser Endress+Hauser t-mass 65I

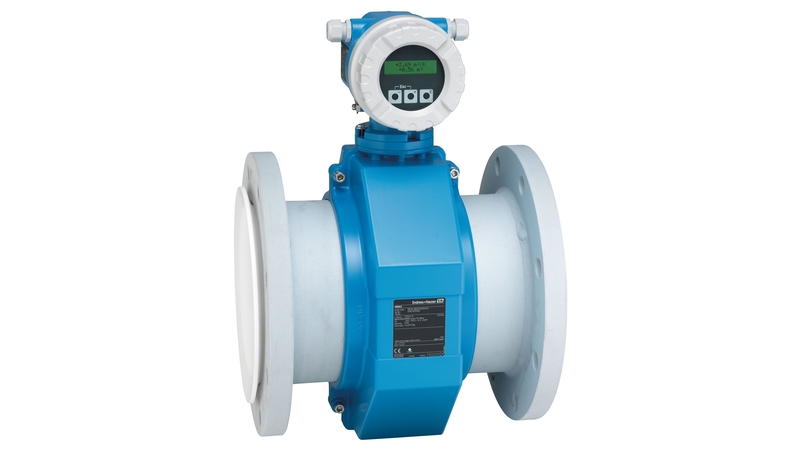

Endress+Hauser Endress+Hauser Promag 10E

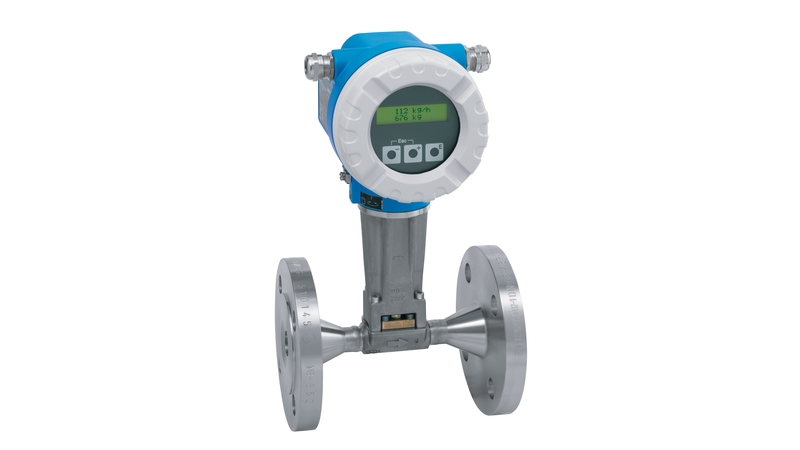

Endress+Hauser Endress+Hauser Prowirl 72F
