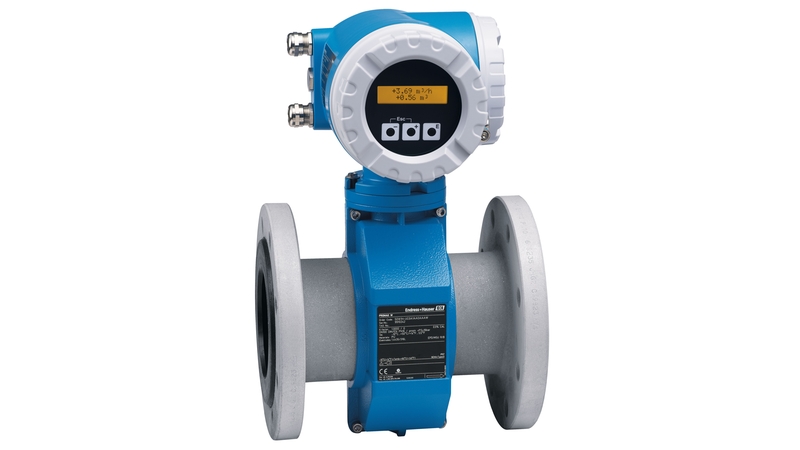

Endress+Hauser Promag 50W
| Ambient temperature range | -20...+60°C -40...+60°C (optional) |
|---|---|
| Degree of protection | IP 67 (NEMA 4x) IP 68 (Nema 6P) |
| Digital communication | HART PROFIBUS PA/DP |
| Display/Operation | Two line display with backlit Push button |
| Hazardous area approvals | ATEX, IECEx, NEPSI, FM, CSA |
| Hygienic approvals and certificates | Drinking water approvals: ACS, NSF 61, KTW-BWGL, WRAS BS6920 |
| Inputs | Status |
| Max. measurement error | ±0.5% ±0.2% (optional) |
| Max. process pressure | PN6...40 Cl 150...300 JIS 10...20K AWWA Class D AS 2129 Table E AS 4087 PN16 |
| Measuring principle | Electromagnetic |
| Measuring range | 0...110'000 m3/h |
| Medium temperature range | -20...+80°C (-4...+176°F) |
| Nominal diameter range | DN 25...2000 1"...78" |
| Outputs | 4...20 mA Pulse/Frequency Status |
| Pressure approvals and certificates | PED, CRN |
| Product headline | std_productprofile_product_usp_34693_1508942575. std_productprofile_product_field_of_application_34668_1508941419. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure). |
| Transmitter features | std_productprofile_product_benefits_34681_1508942231. std_productprofile_product_benefits_34683_1508942232. std_productprofile_product_benefits_34682_1508942239. std_successorproducts_product_differentiating_tech_features_35305_1509527304. std_successorproducts_product_differentiating_tech_features_35308_1509527353. std_successorproducts_product_differentiating_tech_features_35309_1509527353. |
Frequently Asked Questions
How do I get pricing for 50W?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 50W?
50W is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 50W?
Key specifications include Ambient temperature range: -20...+60°C -40...+60°C (optional); Degree of protection: IP 67 (NEMA 4x) IP 68 (Nema 6P); Digital communication: HART PROFIBUS PA/DP; Display/Operation: Two line display with backlit Push button. The full specification table on this page lists every published attribute for this part.
How quickly can 50W ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Promag 50P

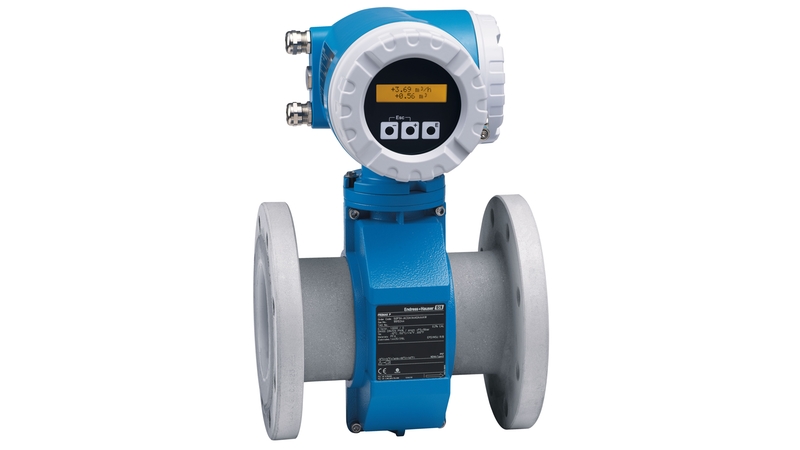

Endress+Hauser Endress+Hauser Promag 51P

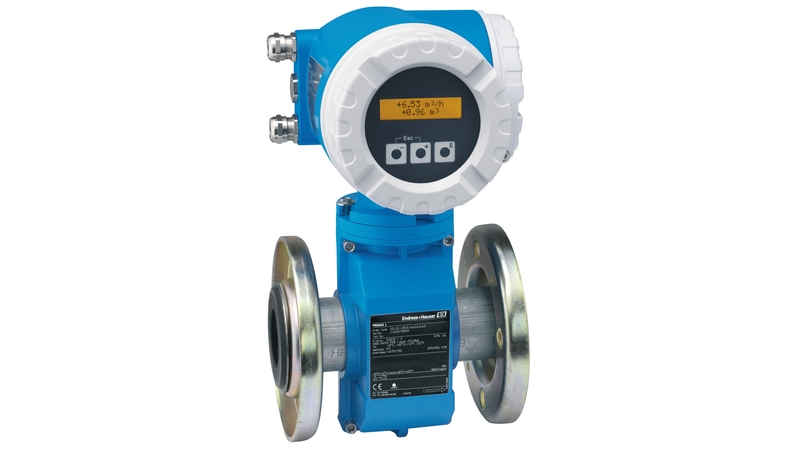

Endress+Hauser Endress+Hauser Promag 50L
Endress+Hauser Endress+Hauser Promag 51W

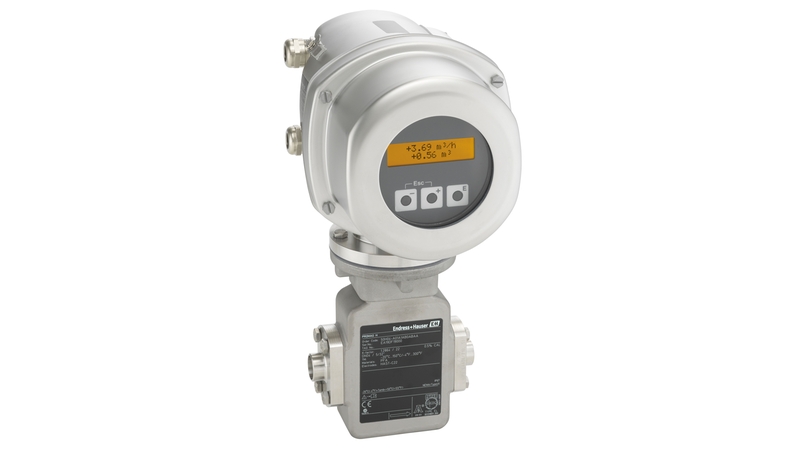

Endress+Hauser Endress+Hauser Promag 50H
