Eaton PSS25F
Eaton PSS25F Eaton Power Supply Switcher, IP20, 20-14 AWG wire size, 1.0A rated operational current, 25W, Single-phase, 380-480V input voltage, 24 Vdc output voltage, 0.17A input current, 35A inrush current, 47-63 Hz, TS35 rail or chassis mount
Eaton Power Supply Switcher, IP20, 20-14 AWG wire size, 1.0A rated operational current, 25W, Single-phase, 380-480V input voltage, 24 Vdc output voltage, 0.17A input current, 35A inrush current, 47-63 Hz, TS35 rail or chassis mount
| Catalog Notes | Recommended: leave 4 in free space on venting sides |
|---|---|
| Catalog Number | PSS25F |
| Compliances | CE Marked |
| Enclosure | IP20 |
| Frequency Rating | 47-63 Hz |
| Global Catalog | PSS25F |
| Input Voltage | 380-480 V |
| Mounting method | TS35 rail or chassis |
| Operating temperature - max | 50 °C |
| Operating temperature - min | -5 °C |
| Output Voltage | 24 V |
| Phase | Single-phase |
| Power consumption | 25 W |
| Product Height | 4.49 in |
| Product Length/Depth | 4.49 in |
| Product Weight | 0.81 lb |
| Product Width | 1.97 in |
| Series | PSS |
| Special Features | Convection cooling, finger-safe cover, short-circuit protection, auto restart |
| UPC | 782113491462 |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
Frequently Asked Questions
How do I get pricing for PSS25F?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PSS25F?
PSS25F is a Eaton part. KKM Solutions sources Eaton components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of PSS25F?
Key specifications include Catalog Notes: Recommended: leave 4 in free space on venting sides; Catalog Number: PSS25F; Compliances: CE Marked; Enclosure: IP20. The full specification table on this page lists every published attribute for this part.
How quickly can PSS25F ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Eaton Eaton PSG10E24RP Eaton POWER SUPPLY 24VDC 10W - General…

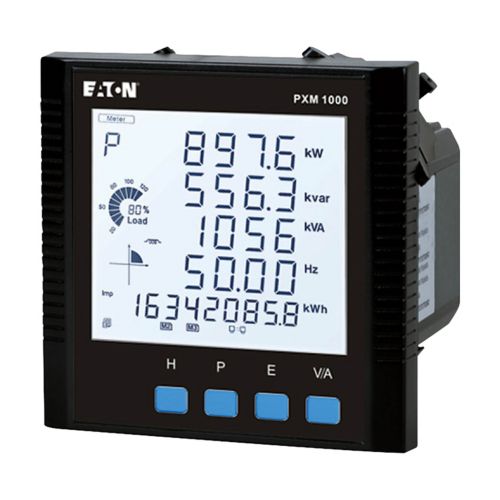

Eaton Eaton PXM1000MA14-1 PXM 1000 power and energy meter, Ring…
