Eaton CRL530C
Eaton CRL530C Eaton corrosion resistant locking connector , #14-10 AWG, 30A, Industrial, 125V, Back wiring, Yellow, Safety grip, Corrosion resistant, L5-30, Two-pole, Three-wire, Santoprene thermoplastic elastomeric, 0.38 to 1 in
Eaton corrosion resistant locking connector , #14-10 AWG, 30A, Industrial, 125V, Back wiring, Yellow, Safety grip, Corrosion resistant, L5-30, Two-pole, Three-wire, Santoprene thermoplastic elastomeric, 0.38 to 1 in
| Allowable wire size | #14-8 AWG |
|---|---|
| Amperage Rating | 30A |
| Application | Industrial |
| Catalog Number | CRL530C |
| Color | Yellow |
| Contact material | Nickel plated brass |
| Cord diameter | 0.38-1 in (9.5 mm-25.4 mm) |
| Design type | Industrial grip |
| Device grade | Extra heavy-duty industrial specification grade |
| Environmental conditions | Corrosion resistant |
| Environmental resistance | Corrosion resistant |
| Face/body material | Nylon |
| Global Catalog | CRL530C |
| Material | Nylon |
| NEMA configuration | L5-30 |
| Number of poles | Two-pole |
| Operating Temperature | -20 to 75 °C (-4 to 167 °F) |
| Product Height | 3.44 in |
| Product Length/Depth | 2.12 in |
| Product Name | Eaton Arrow Hart corrosion resistant locking connector |
| Product type | Corrosion resistant |
| Product Weight | 0.4 lb |
| Product Width | 2.12 in |
| Special Features | Corrosion resistant |
| Torque rating | 14-16 lbf-inch |
| Type | Locking connector |
| UPC | 040893679525 |
| Voltage rating | 125 V |
| Wiring method | Back |
Frequently Asked Questions
How do I get pricing for CRL530C?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CRL530C?
CRL530C is a Eaton part. KKM Solutions sources Eaton components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CRL530C?
Key specifications include Allowable wire size: #14-8 AWG; Amperage Rating: 30A; Application: Industrial; Catalog Number: CRL530C. The full specification table on this page lists every published attribute for this part.
How quickly can CRL530C ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

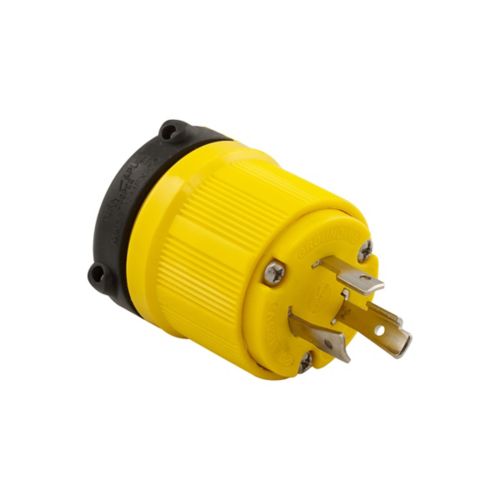

Eaton Eaton CRL520P Eaton corrosion resistant locking plug, #14-10 AWG,…

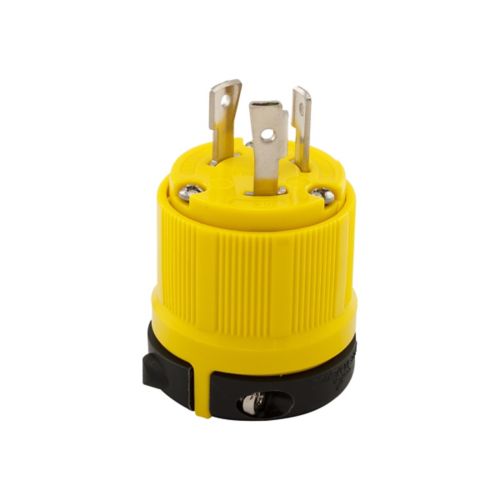

Eaton Eaton CRL530P Eaton corrosion resistant locking plug, #14-10 AWG,…

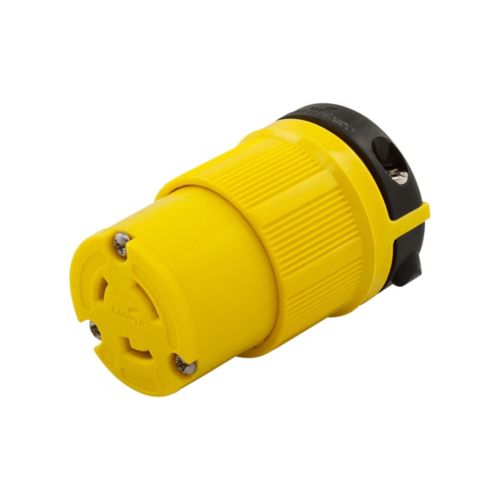

Eaton Eaton CRL520C Eaton corrosion resistant locking connector , #14-10…

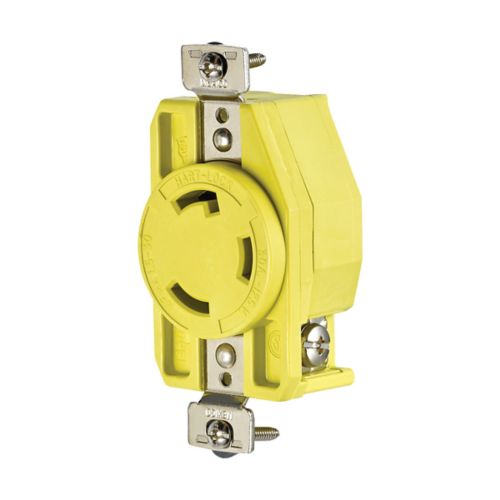

Eaton Eaton CRL530R Eaton corrosion resistant locking receptacle, #14-10 AWG,…
