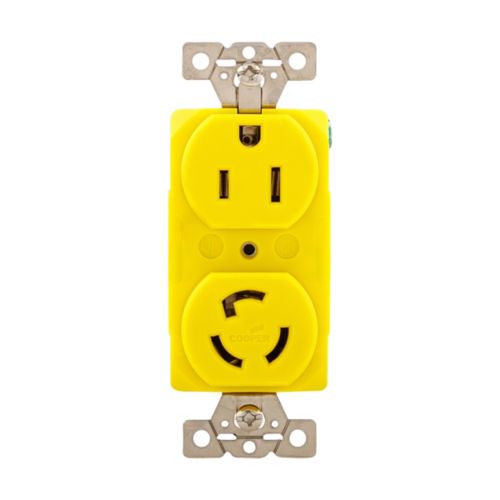

Eaton CR5792
Eaton CR5792 Eaton corrosion resistant locking straight blade receptacle, #14-10 AWG, 15A, Industrial, 125V, Side wiring, Yellow, Corrosion resistant, L5-15, Two-pole, Three-wire, Thermoplastic
Eaton corrosion resistant locking straight blade receptacle, #14-10 AWG, 15A, Industrial, 125V, Side wiring, Yellow, Corrosion resistant, L5-15, Two-pole, Three-wire, Thermoplastic
| Allowable wire size | #14-10 AWG |
|---|---|
| Amperage Rating | 15A |
| Application | Industrial |
| Catalog Number | CR5792 |
| Certifications | CSA certified |
| Color | Yellow |
| Contact material | Nickel plated bronze |
| Design type | Duplex receptacle |
| Device grade | Extra heavy-duty industrial specification grade |
| Environmental conditions | Corrosion resistant |
| Environmental resistance | Corrosion resistant |
| Face/body material | Glass filled nylon |
| Global Catalog | CR5792 |
| Material | Thermoplastic |
| NEMA configuration | L5-15 / 5-15 |
| Number of poles | Two-pole |
| Operating Temperature | -20 to 70 °C (-4 to 158 °F) |
| Product Height | 4.4 in |
| Product Length/Depth | 1.75 in |
| Product Name | Eaton Arrow Hart corrosion resistant locking receptacle |
| Product type | Corrosion resistant |
| Product Weight | 0.235 lb |
| Product Width | 1.95 in |
| Receptacle type | Locking and straight blade |
| Special Features | Corrosion resistant |
| Torque rating | 14 lbf-inch |
| Type | Locking straight blade receptacle |
| UPC | 040893682488 |
| Voltage rating | 125 V |
| Wiring method | Back and side |
Frequently Asked Questions
How do I get pricing for CR5792?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CR5792?
CR5792 is a Eaton part. KKM Solutions sources Eaton components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CR5792?
Key specifications include Allowable wire size: #14-10 AWG; Amperage Rating: 15A; Application: Industrial; Catalog Number: CR5792. The full specification table on this page lists every published attribute for this part.
How quickly can CR5792 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

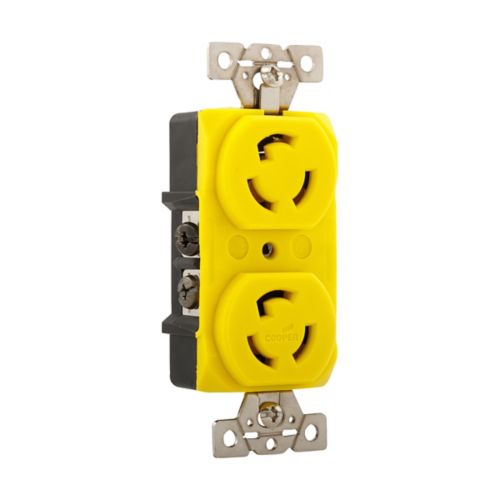

Eaton Eaton CR4700 Eaton corrosion resistant locking receptacle, #14-10 AWG,…

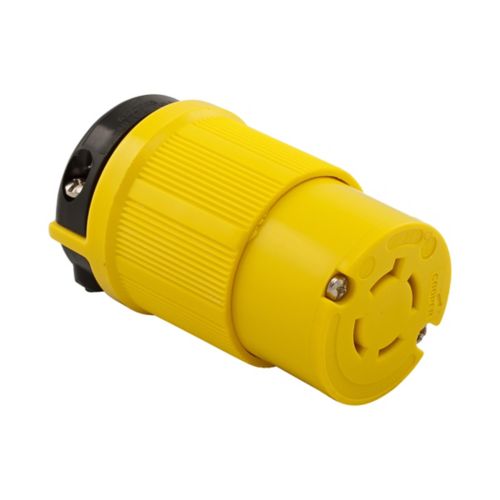

Eaton Eaton CRL1420C Eaton corrosion resistant locking connector , #14-10…

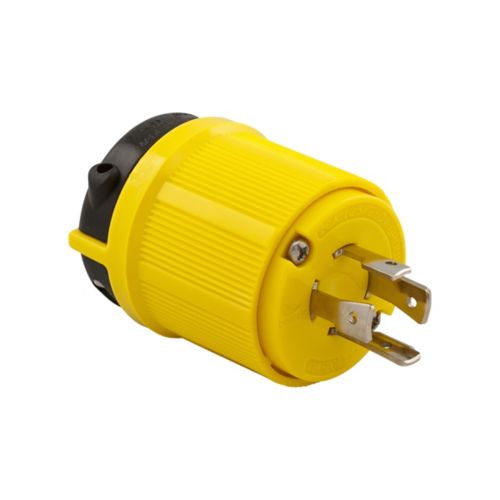

Eaton Eaton CRL1420P Eaton corrosion resistant locking plug, #14-10 AWG,…
