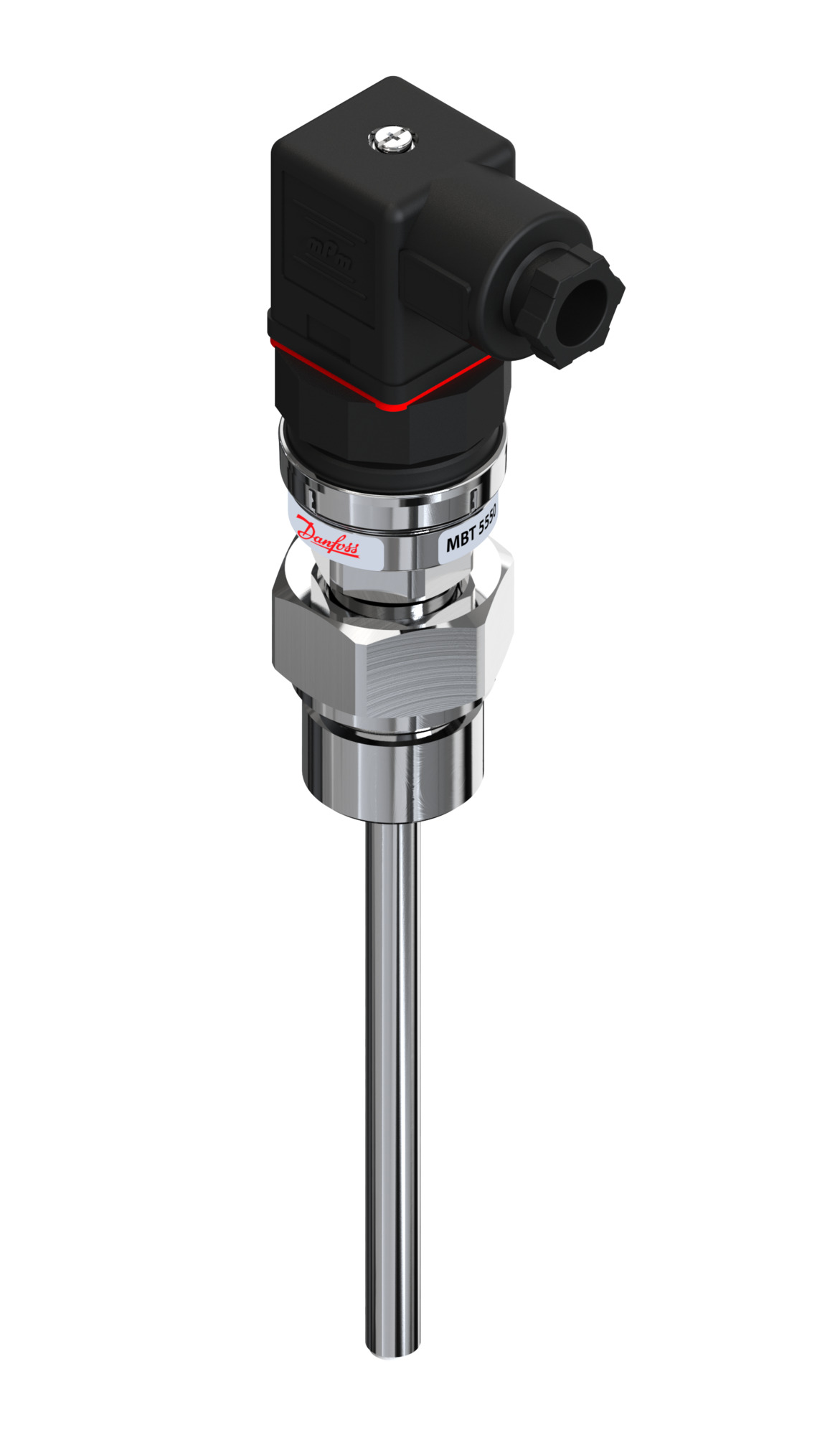

Danfoss Temperature transmitter, MBT 5550, 80 mm, G
Danfoss 097U0268 - MBT 5550 - Electrical connection: Angular connector; Type: MBT 5550; Gross weight: 0.107 Kilogram.
Danfoss 097U0268 is a MBT 5550 catalog item from Danfoss. The manufacturer's published data for this part number specifies Electrical connection: Angular connector and Type: MBT 5550.
Key manufacturer data on file for this item includes Gross weight: 0.107 Kilogram; Net weight: 0.09 Kilogram; Volume: 0.495 Liter; EAN: 5715162524787; Product group: Sensors; Product Name Description: Temperature transmitter; China RoHS compliance: Out of scope; Connection standard: ISO 228; Connection type: G; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 85 °C |
|---|---|
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Contains batteries | No |
| EAN | 5715162524787 |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.107 Kilogram |
| Insertion length [in] | 3.15 in |
| Insertion length [mm] | 80 mm |
| Insertion type | FIXED |
| Measuring range [°C] [Max] | 100 °C |
| Measuring range [°C] [Min] | 0 °C |
| Measuring range [°F] [Max] | 212 °F |
| Measuring range [°F] [Min] | 32 °F |
| Net weight | 0.09 Kilogram |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connection Size | 3/4 |
| Process connection standard | ISO 228-1-A |
| Process Connection Type | G |
| Product group | Sensors |
| Product Name Description | Temperature transmitter |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 13 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | ISO 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 10 V |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Transmitter setting range [°C] [Max] | 100 °C |
| Transmitter setting range [°C] [Min] | 0 °C |
| Transmitter setting range [°F] [Max] | 212 °F |
| Transmitter setting range [°F] [Min] | 32 °F |
| Transmitter type | Integrated |
| Type | MBT 5550 |
| Type designation | MBT 5550-0000-0080-11-110 |
| Volume | 0.495 Liter |
