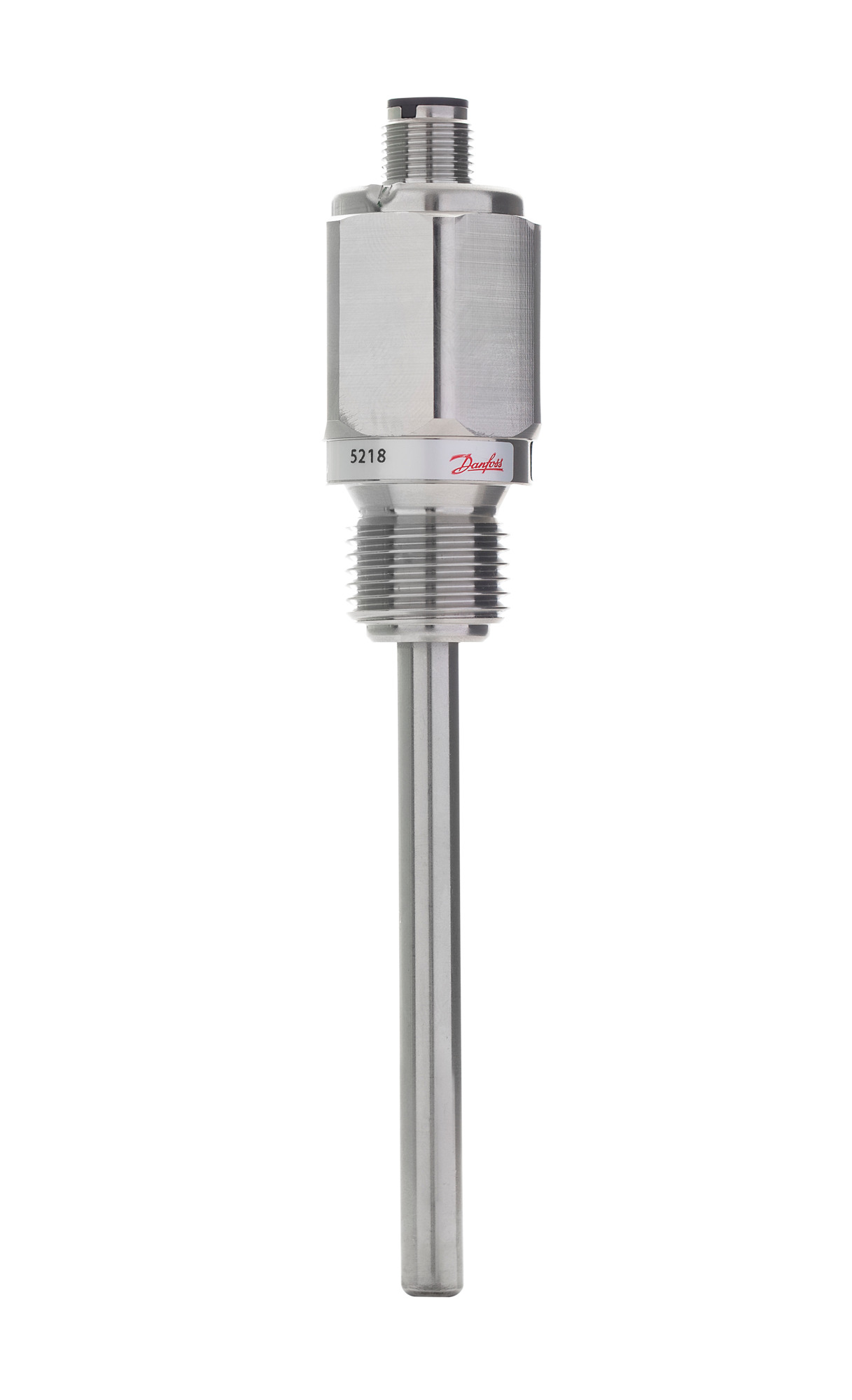

Danfoss Temperature sensor, MBT 3310, 290 mm - 305 mm, G, 1/2
Danfoss 097U0102 - MBT 3310 - Electrical connection: M12 x 1; Type: MBT 3310; Gross weight: 0.235 Kilogram.
The Danfoss 097U0102 is part of the MBT 3310 range in our industrial catalog. The manufacturer's published data for this part number specifies Electrical connection: M12 x 1 and Type: MBT 3310.
Published specifications for this part include Gross weight: 0.235 Kilogram; Net weight: 0.224 Kilogram; Volume: 0.27 Liter; EAN: 5702428656115; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Connection standard: IEC 947-5-2; Connection type: G; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 125 °C |
|---|---|
| Ambient temperature max. [°F] | 257 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection material | Stainless steel |
| Connection standard | IEC 947-5-2 |
| Connection type | G |
| Contains batteries | No |
| EAN | 5702428656115 |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Gross weight | 0.235 Kilogram |
| In scope of WEEE | Yes |
| Insertion length [in] [Max] | 12 in |
| Insertion length [in] [Min] | 11.4 in |
| Insertion length [mm] [Max] | 305 mm |
| Insertion length [mm] [Min] | 290 mm |
| Insertion type | Variable |
| Measuring range [°C] [Max] | 200 °C |
| Measuring range [°C] [Min] | -50 °C |
| Measuring range [°F] [Max] | 392 °F |
| Measuring range [°F] [Min] | -58 °F |
| Net weight | 0.224 Kilogram |
| Number of terminals [pcs] | 4 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connection Size | 1/2 |
| Process connection standard | ISO 228-1-A |
| Process Connection Type | G |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7e8c0ff3-1e7a-4680-b92c-bfbffbb08416 |
| SCIP dossier product name | MBT 3310/5310 |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | FIXED |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 3310 |
| Type designation | MBT 3310-00-060-B00 |
| Volume | 0.27 Liter |
| Wires [pcs] | 4 pc |
