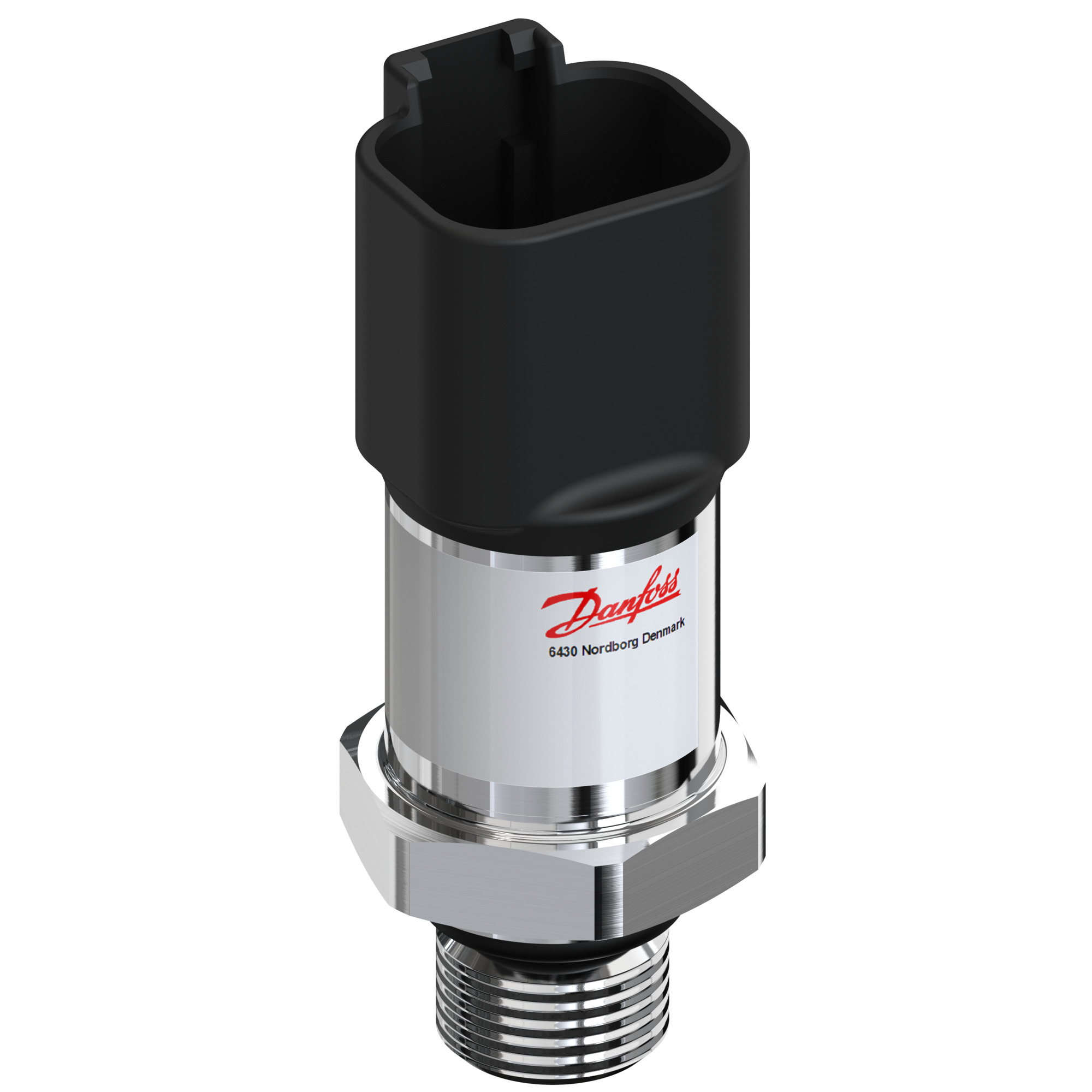

Danfoss Pressure transmitter, DST P650, 0 bar - 50 bar, 0 psi - 725 psi
Danfoss 090G6013 - DST P650 - Electrical connection: Deutsch DT04; Type: DST P650; Gross weight: 0.061 Kilogram.
The 090G6013 from Danfoss is listed under DST P650 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Deutsch DT04 and Type: DST P650.
The specification set recorded for this part number covers Gross weight: 0.061 Kilogram; Net weight: 0.06 Kilogram; Volume: 0.098 Liter; EAN: 5702424285999; Product group: Sensors; Product Name Description: Pressure transmitter; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 24 pc; REACH Candidate List substances: No. See the Specifications tab on this page for the full technical table.
| - common | Pin 1 |
|---|---|
| + output | Pin 4 |
| + supply | Pin 2 |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 257 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US UL RecognizedCE |
| Burst pressure [bar] | 1000 bar |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 125 °C |
| Compensated temp. range [°C] [Min] | -40 °C |
| Compensated temp. range [°F] [Max] | 257 °F |
| Compensated temp. range [°F] [Min] | -40 °F |
| Contains batteries | No |
| Country of origin | MADE IN GERMANY |
| EAN | 5702424285999 |
| Electrical conn. Male/Female | Male |
| Electrical connection | Deutsch DT04 |
| Electrical connection size | 4 pin |
| Electrical connection standard | DT04 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.061 Kilogram |
| High Clipping Level | 94 |
| In scope of WEEE | No |
| International Article Number | 5702424285999 |
| Low Clipping Level | 6 |
| Medium temperature range [°C] [Max] | 125 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 257 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Net weight | 0.06 Kilogram |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 150 bar |
| Packing format | Multi pack |
| Pin surface material | Au |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 1/4-A |
| Pressure connection standard | JIS B2351 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 50 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 725 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 24 pc |
| Ratiometric of Vsupply [%] [Max] | 90 % |
| Ratiometric of Vsupply [%] [Min] | 10 % |
| REACH Candidate List substances | No |
| Response time max. [ms] | 2 ms |
| RoHS Compliant | Yes - RoHS ok |
| Specification key | DST P650-2716-C3GC053 |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| Type | DST P650 |
| UL evaluated | Yes |
| Volume | 0.098 Liter |
Frequently Asked Questions
How do I get pricing for 090G6013?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 090G6013?
090G6013 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 090G6013?
Key specifications include - common: Pin 1; + output: Pin 4; + supply: Pin 2; Ambient temperature range [°C] [max]: 125 °C. The full specification table on this page lists every published attribute for this part.
How quickly can 090G6013 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
