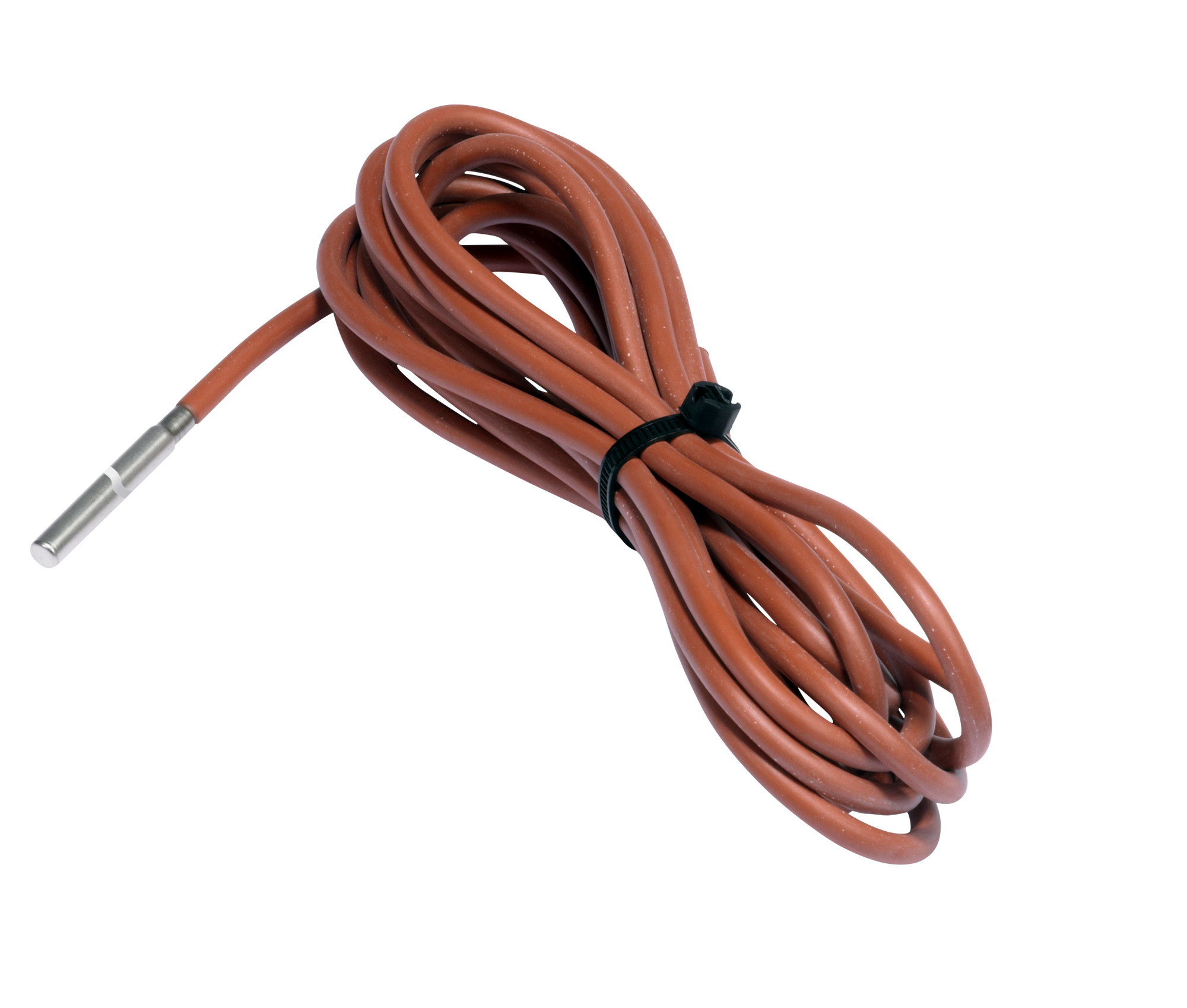

Danfoss Temperature sensor, MBT 153, 138 in, Pt, 100 Ohm
Danfoss 084Z6036 - MBT 153 - Electrical connection: Cable; Type: MBT 153; Cable type: Silicone.
The 084Z6036 from Danfoss is listed under MBT 153 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Cable and Type: MBT 153.
Published specifications for this part include Cable type: Silicone; Gross weight: 0.116 Kilogram; Net weight: 0.107 Kilogram; Volume: 0.27 Liter; EAN: 5702423141425; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 30 pc. The complete technical table is shown in the Specifications tab on this page.
| Approval | CE |
|---|---|
| Cable length [in] | 138 in |
| Cable length [m] | 3.5 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 392 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | Silicone |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EAN | 5702423141425 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP68 |
| EU RoHS compliance | Yes |
| Gross weight | 0.116 Kilogram |
| In scope of WEEE | Yes |
| Insertion type | Variable |
| Measuring range [°C] [Max] | 200 °C |
| Measuring range [°C] [Min] | -50 °C |
| Measuring range [°F] [Max] | 392 °F |
| Measuring range [°F] [Min] | -58 °F |
| Net weight | 0.107 Kilogram |
| Output signal | Ohm |
| Packing format | Multi pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.236 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 305 |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 153 |
| Type designation | MBT 153-2000-0350 |
| Volume | 0.27 Liter |
| Wires [pcs] | 2 pc |
Frequently Asked Questions
How do I get pricing for 084Z6036?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084Z6036?
084Z6036 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084Z6036?
Key specifications include Approval: CE; Cable length [in]: 138 in; Cable length [m]: 3.5 m; Cable tempr. range [°C] [Max]: 200 °C. The full specification table on this page lists every published attribute for this part.
How quickly can 084Z6036 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
