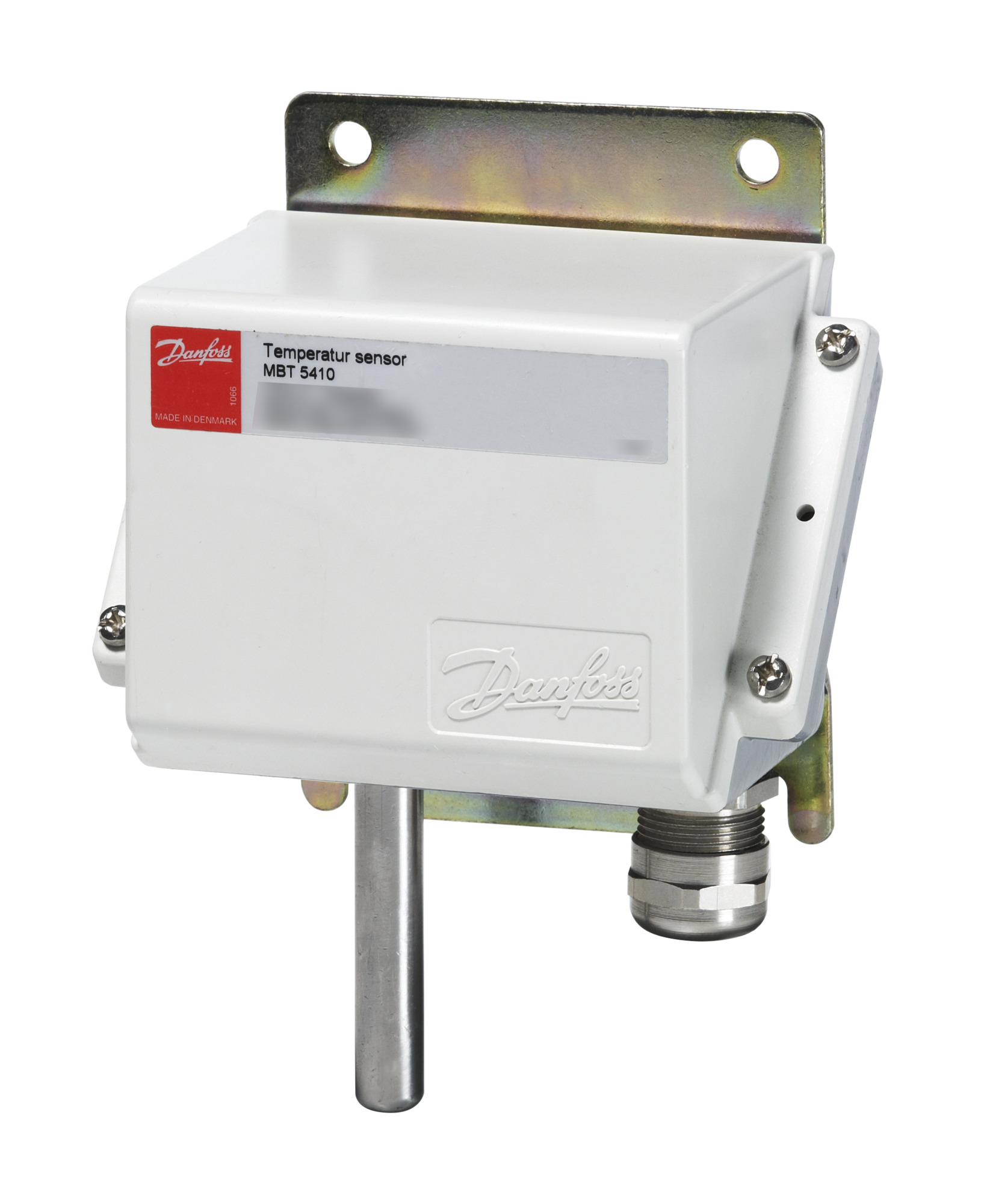

Danfoss Temperature sensor, MBT 5410, Pt
Danfoss 084Z5066 - MBT 5410 - Electrical connection: Box (metal/plastic); Type: MBT 5410; Gross weight: 0.678 Kilogram.
The 084Z5066 from Danfoss is listed under MBT 5410 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Box (metal/plastic) and Type: MBT 5410.
The specification set recorded for this part number covers Gross weight: 0.678 Kilogram; Net weight: 0.59 Kilogram; Volume: 2.455 Liter; EAN: 5702423141609; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack; Quantity per packing format: 8 pc; REACH Candidate List substances: Lead (CAS no. 7439-92-1). See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 85 °C |
|---|---|
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EAN | 5702423141609 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Box (metal/plastic) |
| Electrical connection size | 2 terminals |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Gross weight | 0.678 Kilogram |
| In scope of WEEE | Yes |
| Insertion length [in] | 2.36 in |
| Insertion length [mm] | 60 mm |
| Insertion type | FIXED |
| Measuring range [°C] [Max] | 100 °C |
| Measuring range [°C] [Min] | 0 °C |
| Measuring range [°F] [Max] | 212 °F |
| Measuring range [°F] [Min] | 32 °F |
| Net weight | 0.59 Kilogram |
| Number of terminals [pcs] | 3 pc |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Packing format | Multi pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.394 in |
| Protection tube diameter [mm] | 10 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Supply voltage [V] DC [max] | 35 V |
| Supply voltage [V] DC [min] | 8 V |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Transmitter setting range [°C] [Max] | 100 °C |
| Transmitter setting range [°C] [Min] | 0 °C |
| Transmitter setting range [°F] [Max] | 212 °F |
| Transmitter setting range [°F] [Min] | 32 °F |
| Transmitter type | Standard |
| Type | MBT 5410 |
| Type designation | MBT 5410-000-060-000-G110 |
| Volume | 2.455 Liter |
| Wires [pcs] | 2 pc |
