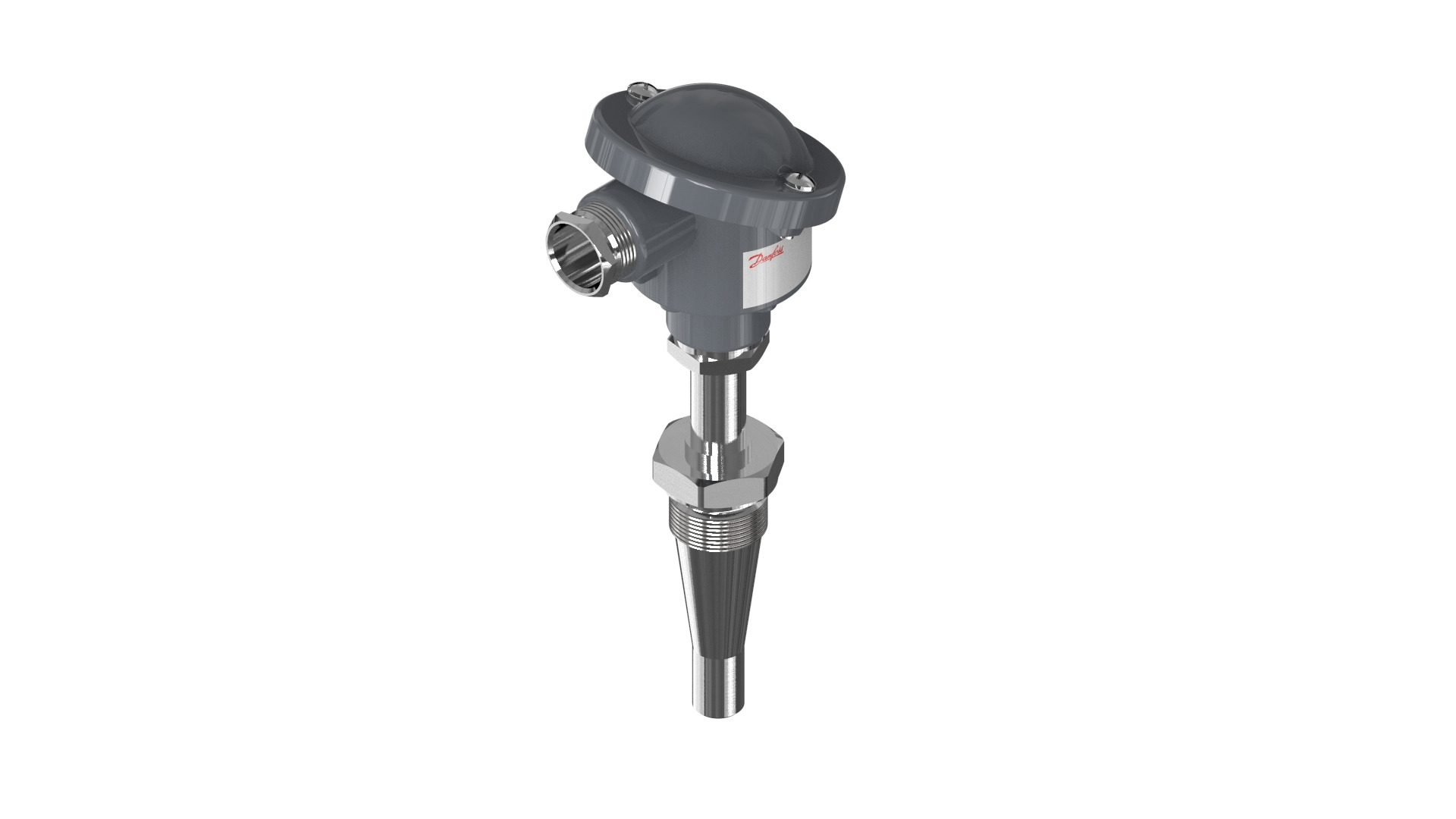

Danfoss Temperature sensor, MBT 5116, 200 mm, G, ISO 228-1-A
Danfoss 084Z5025 - MBT 5116 - Electrical connection: Type B; Type: MBT 5116; Gross weight: 0.79 Kilogram.
The 084Z5025 from Danfoss is listed under MBT 5116 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Type B and Type: MBT 5116.
Published specifications for this part include Gross weight: 0.79 Kilogram; Net weight: 0.786 Kilogram; Volume: 1.47 Liter; EAN: 5702423139255; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Connection standard: ISO 228; Connection type: G; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 90 °C |
|---|---|
| Ambient temperature max. [°F] | 194 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection material | AISI 316 Ti |
| Connection standard | ISO 228 |
| Connection type | G |
| Contains batteries | No |
| EAN | 5702423139255 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Extension length [in] | 1.97 in |
| Extension length [mm] | 50 mm |
| Gross weight | 0.79 Kilogram |
| In scope of WEEE | Yes |
| Insertion length [in] | 7.9 in |
| Insertion length [mm] | 200 mm |
| Insertion type | FIXED |
| Measuring range [°C] [Max] | 600 °C |
| Measuring range [°C] [Min] | -50 °C |
| Measuring range [°F] [Max] | 1112 °F |
| Measuring range [°F] [Min] | -58 °F |
| Net weight | 0.786 Kilogram |
| Number of terminals [pcs] | 3 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connection Size | 3/4 |
| Process connection standard | ISO 228-1-A |
| Process Connection Type | G |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] [Max] | 0.945 in |
| Protection tube diameter [in] [Min] | 0.551 in |
| Protection tube diameter [mm] [Max] | 24 mm |
| Protection tube diameter [mm] [Min] | 14 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a |
| SCIP dossier product name | MBT 5113/5116 |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Temperature range [°C] [Max] | 600 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 1112 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 5116 |
| Type designation | MBT 5116-B001-200-10-0000 |
| Volume | 1.47 Liter |
| Wires [pcs] | 2 pc |
Frequently Asked Questions
How do I get pricing for 084Z5025?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084Z5025?
084Z5025 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084Z5025?
Key specifications include Ambient temperature max. [°C]: 90 °C; Ambient temperature max. [°F]: 194 °F; Approval: CE; CE evaluated: Yes. The full specification table on this page lists every published attribute for this part.
How quickly can 084Z5025 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
