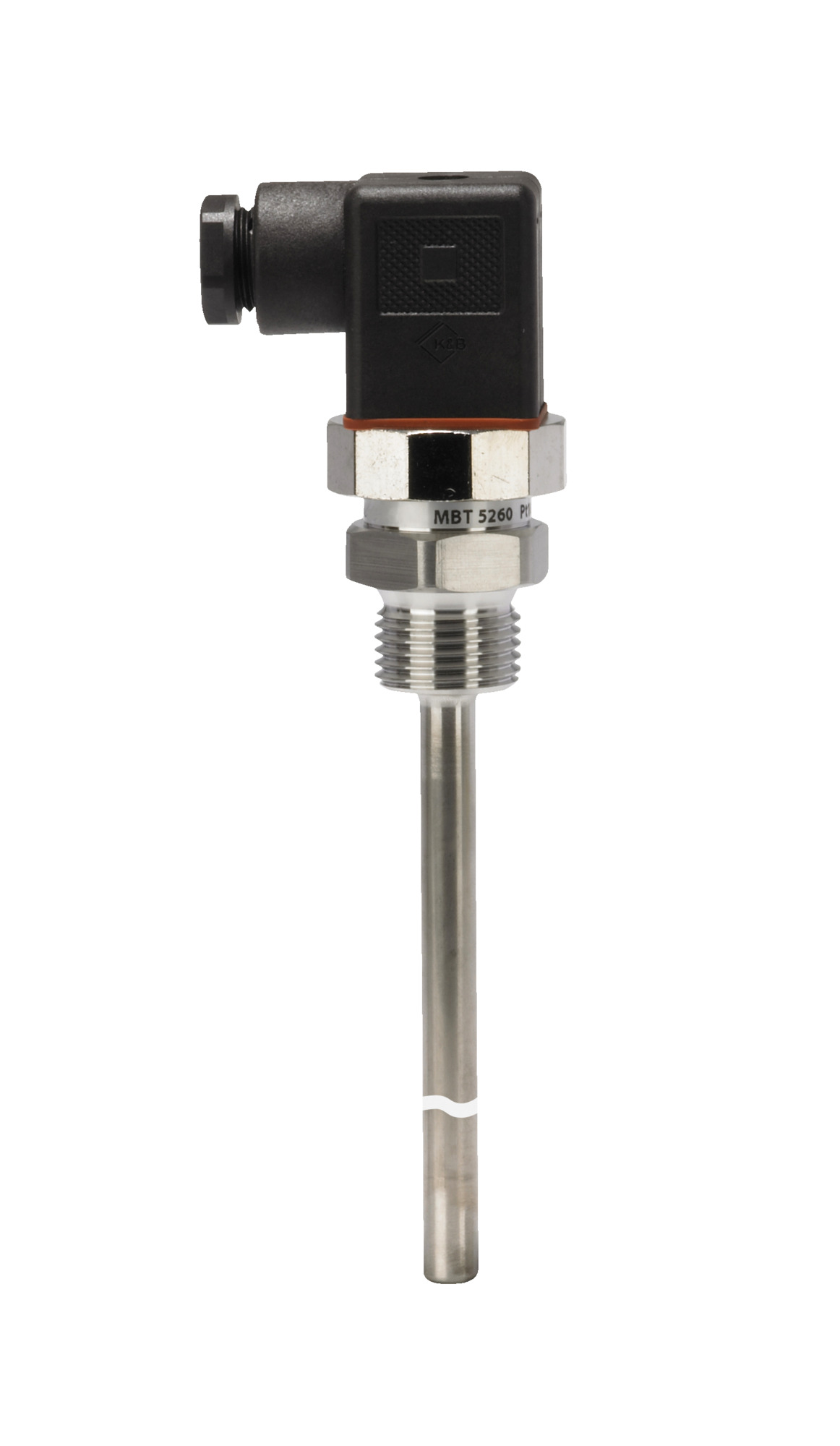

Danfoss Temperature sensor, MBT 5250, 50 mm, G, 1/2
Danfoss 084Z2108 - MBT 5250 / MBT 5260 / MBT 5252 - Electrical connection: Angular connector; Type: MBT 5250; Gross weight: 0.145 Kilogram.
Danfoss 084Z2108 is a MBT 5250 / MBT 5260 / MBT 5252 catalog item from Danfoss. The manufacturer's published data for this part number specifies Electrical connection: Angular connector and Type: MBT 5250.
Key manufacturer data on file for this item includes Gross weight: 0.145 Kilogram; Net weight: 0.141 Kilogram; Volume: 0.22 Liter; EAN: 5702423298389; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Connection standard: ISO 228; Connection type: G; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 125 °C |
|---|---|
| Ambient temperature max. [°F] | 257 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Contains batteries | No |
| EAN | 5702423298389 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Gross weight | 0.145 Kilogram |
| In scope of WEEE | Yes |
| Insertion length [in] | 1.97 in |
| Insertion length [mm] | 50 mm |
| Insertion type | FIXED |
| Measuring range [°C] [Max] | 200 °C |
| Measuring range [°C] [Min] | -50 °C |
| Measuring range [°F] [Max] | 392 °F |
| Measuring range [°F] [Min] | -58 °F |
| Net weight | 0.141 Kilogram |
| Number of terminals [pcs] | 2 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connection Size | 1/2 |
| Process connection standard | ISO 228-1-A |
| Process Connection Type | G |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1741c763-fa54-4cb9-973c-52e51e4079b9 |
| SCIP dossier product name | MBT 3250/3260/5250/5260 |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 2 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 5250 |
| Type designation | MBT 5250-0200-050-C20 |
| Volume | 0.22 Liter |
| Wires [pcs] | 2 pc |
Frequently Asked Questions
How do I get pricing for 084Z2108?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084Z2108?
084Z2108 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084Z2108?
Key specifications include Ambient temperature max. [°C]: 125 °C; Ambient temperature max. [°F]: 257 °F; Approval: CE; CE evaluated: Yes. The full specification table on this page lists every published attribute for this part.
How quickly can 084Z2108 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
