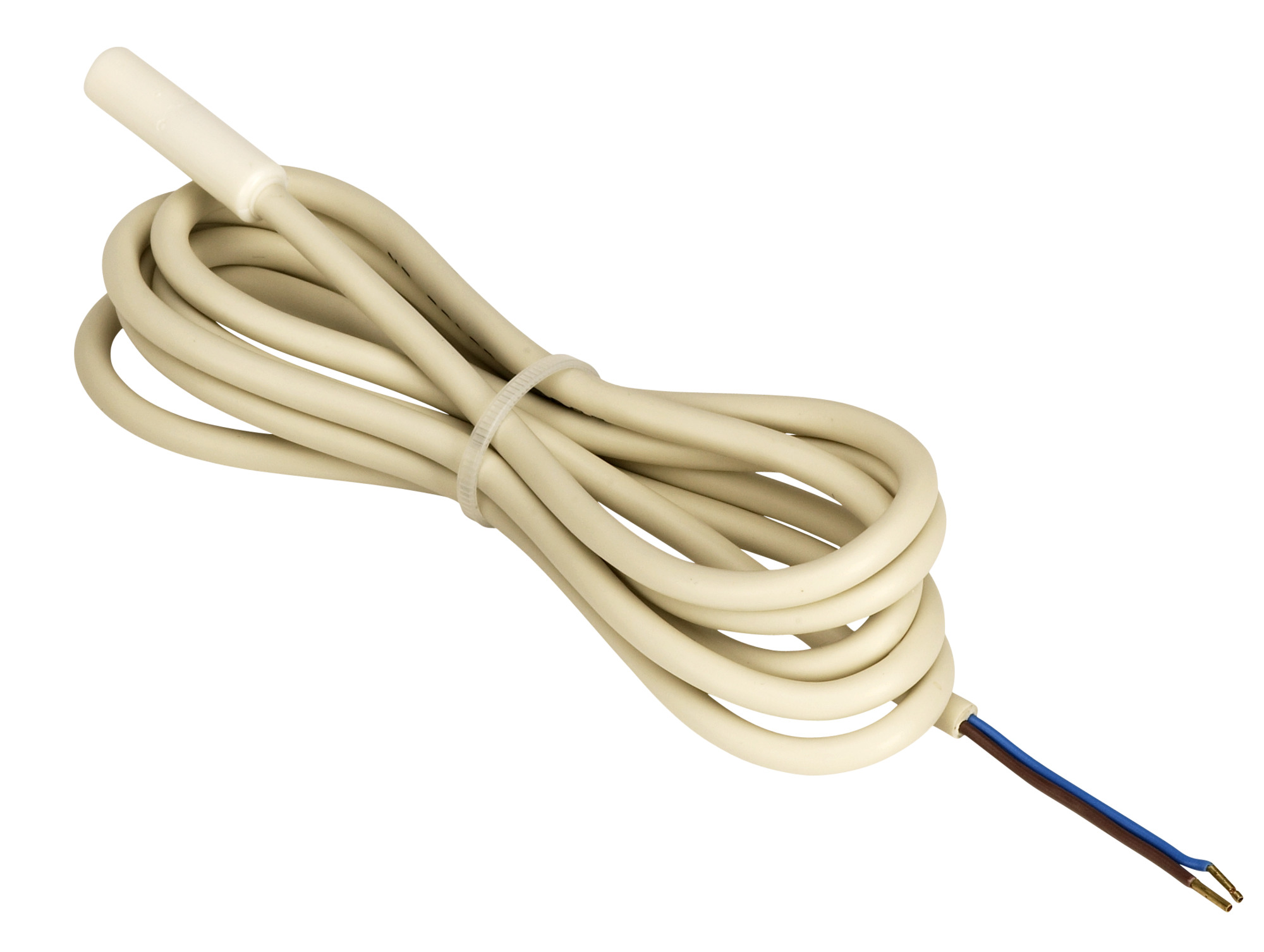

Danfoss Temperature sensor, EKS 211, 229.38 in, NTC, 5000 Ohm
Danfoss 084N3211 - EKS 211 - Electrical connection: CABLE WITH PINS; Type: EKS 211; Cable type: PVC.
This listing covers the Danfoss 084N3211, a part number in the EKS 211 category. The manufacturer's published data for this part number specifies Electrical connection: CABLE WITH PINS and Type: EKS 211.
Key manufacturer data on file for this item includes Cable type: PVC; Gross weight: 0.174 Kilogram; Net weight: 0.173 Kilogram; Volume: 0.47 Liter; EAN: 5702428182720; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Industrial pack; Quantity per packing format: 50 pc. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature max. [°C] | 80 °C |
|---|---|
| Ambient temperature max. [°F] | 176 °F |
| Approval | CE |
| Cable length [in] | 229.38 in |
| Cable length [m] | 6 m |
| Cable tempr. range [°C] [Max] | 100 °C |
| Cable tempr. range [°C] [Min] | -40 °C |
| Cable type | PVC |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EAN | 5702428182720 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | CABLE WITH PINS |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Gross weight | 0.174 Kilogram |
| In scope of WEEE | Yes |
| Label product | Yes |
| Measuring range [°C] [Max] | 80 °C |
| Measuring range [°C] [Min] | -40 °C |
| Measuring range [°F] [Max] | 176 °F |
| Measuring range [°F] [Min] | -40 °F |
| Net weight | 0.173 Kilogram |
| NTC Element characteristic | B(20/100): 3980 ±1,5% |
| Packing format | Industrial pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Protection tube material | PVT |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c8cac0db-2ee3-4ba7-aa11-15ddb932a486 |
| SCIP dossier product name | NTC Thermistor/ Probe assembly M2020 |
| Sensor elem. resistance [Ohm] | 5000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 5% (R) at 0°C |
| Sensor element type | NTC |
| Sensor Insert | FIXED |
| Type | EKS 211 |
| Volume | 0.47 Liter |
| Wires [pcs] | 2 pc |
Frequently Asked Questions
How do I get pricing for 084N3211?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084N3211?
084N3211 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084N3211?
Key specifications include Ambient temperature max. [°C]: 80 °C; Ambient temperature max. [°F]: 176 °F; Approval: CE; Cable length [in]: 229.38 in. The full specification table on this page lists every published attribute for this part.
How quickly can 084N3211 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
