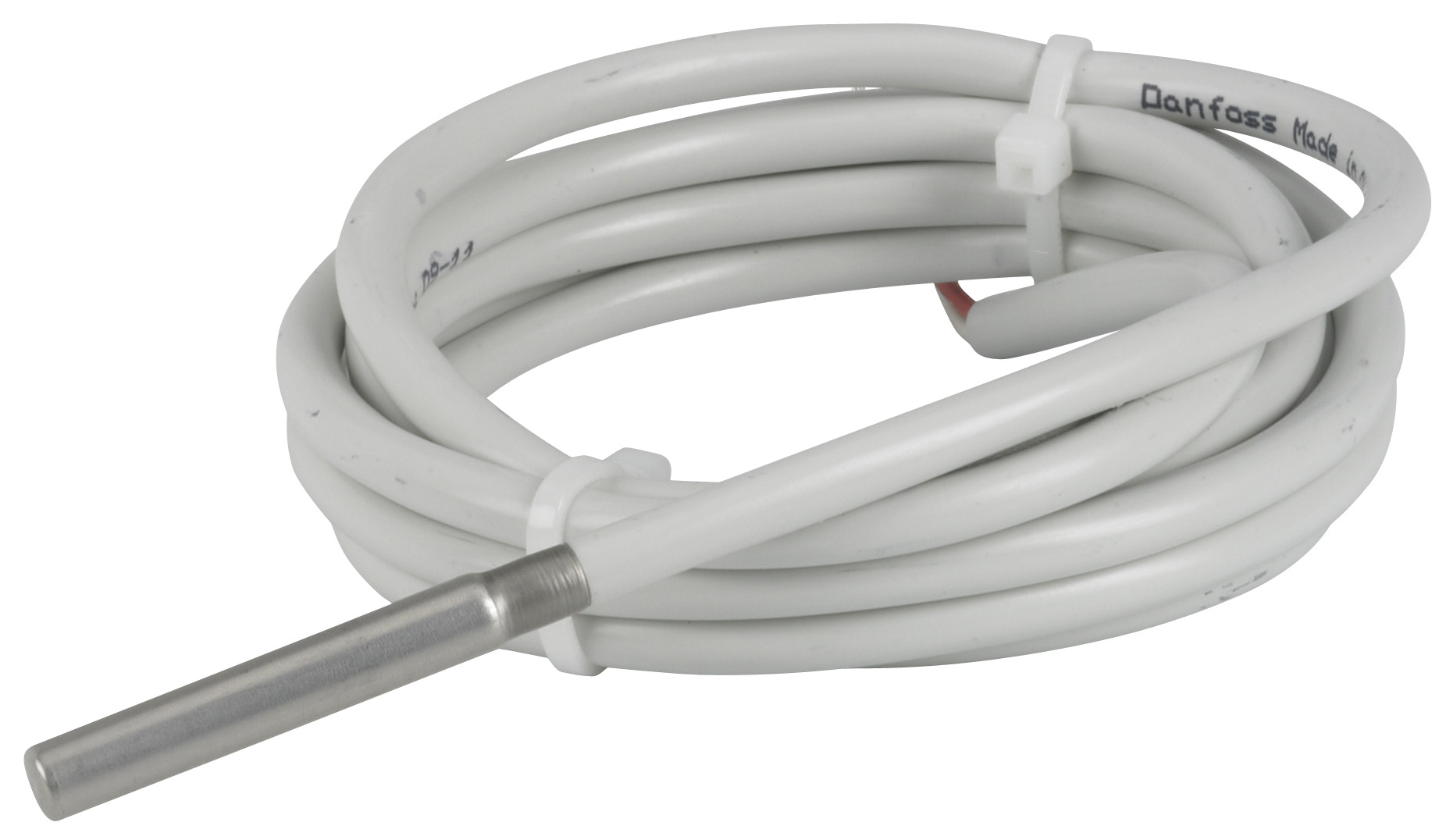

Danfoss Temperature sensor, AKS 12, 216.54 in, Pt, 1000 Ohm
Danfoss 084N0038 - AKS 12 - Electrical connection: Cable; Type: AKS 12; Cable type: PVC.
The 084N0038 from Danfoss is listed under AKS 12 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Cable and Type: AKS 12.
The specification set recorded for this part number covers Cable type: PVC; Gross weight: 0.172 Kilogram; Net weight: 0.171 Kilogram; Volume: 0.506 Liter; EAN: 5702423136773; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Industrial pack; Quantity per packing format: 30 pc. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature max. [°C] | 100 °C |
|---|---|
| Ambient temperature max. [°F] | 212 °F |
| Approval | CE |
| Cable length [in] | 216.54 in |
| Cable length [m] | 5.5 m |
| Cable tempr. range [°C] [Max] | 100 °C |
| Cable tempr. range [°C] [Min] | -40 °C |
| Cable type | PVC |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EAN | 5702423136773 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.172 Kilogram |
| Identical product | 084N0046 |
| In scope of WEEE | Yes |
| Measuring range [°C] [Max] | 100 °C |
| Measuring range [°C] [Min] | -40 °C |
| Measuring range [°F] [Max] | 212 °F |
| Measuring range [°F] [Min] | -40 °F |
| Net weight | 0.171 Kilogram |
| Packing format | Industrial pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.23 in |
| Protection tube diameter [mm] | 5.8 mm |
| Protection tube length [in] | 1.58 in |
| Protection tube length [mm] | 40 mm |
| Protection tube material | STAINLEES STEEL |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | FIXED |
| Type | AKS 12 |
| Volume | 0.506 Liter |
| Wires [pcs] | 2 pc |
Frequently Asked Questions
How do I get pricing for 084N0038?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084N0038?
084N0038 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084N0038?
Key specifications include Ambient temperature max. [°C]: 100 °C; Ambient temperature max. [°F]: 212 °F; Approval: CE; Cable length [in]: 216.54 in. The full specification table on this page lists every published attribute for this part.
How quickly can 084N0038 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
