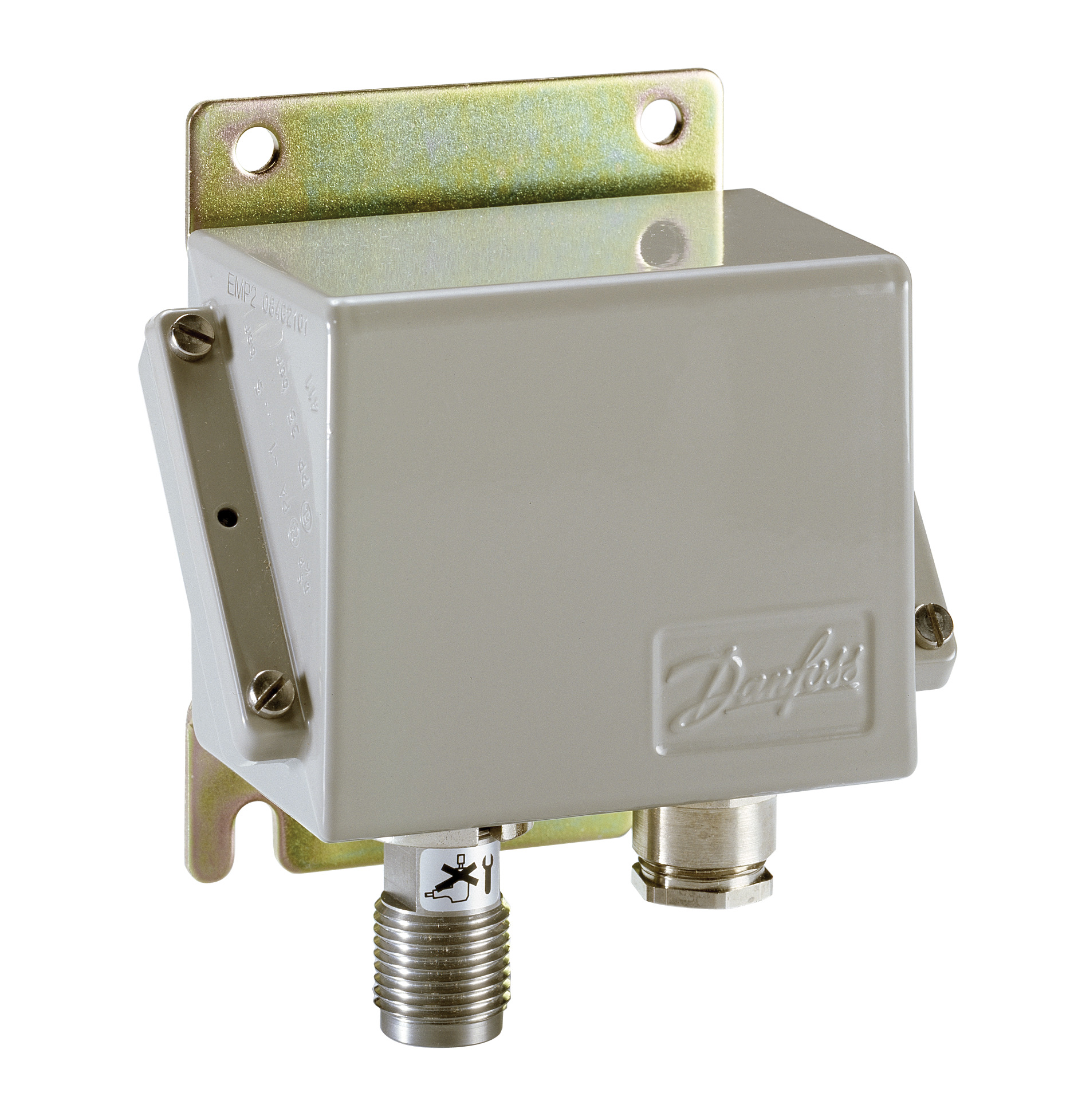

Danfoss Pressure transmitter, EMP 2, 0 bar - 2.5 bar, 0 psi - 36.25 psi
Danfoss 084G2105 - EMP 2 - Electrical connection: Terminal block; Type: EMP 2; Gross weight: 1.074 Kilogram.
The 084G2105 from Danfoss is listed under EMP 2 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Terminal block and Type: EMP 2.
Published specifications for this part include Gross weight: 1.074 Kilogram; Net weight: 0.98 Kilogram; Volume: 2.522 Liter; EAN: 5702423000685; Product group: Sensors; Product Name Description: Pressure transmitter; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack; Quantity per packing format: 8 pc; REACH Candidate List substances: Lead (CAS no. 7439-92-1). See the Specifications tab on this page for the full technical table.
| - common | N |
|---|---|
| + supply | P |
| Accuracy, max. +/- FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Approval | ABSBVCCSCEDNVGLGOST POCCKRLRNNKRINA |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 70 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 158 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Contains batteries | No |
| EAN | 5702423000685 |
| Electrical connection | Terminal block |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I |
| Flush diaphragm | No |
| Gross weight | 1.074 Kilogram |
| High Clipping Level | 22.4 |
| International Article Number | 5702423000685 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 70 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 158 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Net weight | 0.98 Kilogram |
| Non-linearity BFSL ±FS [%] | 0.3 % |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 5 bar |
| Packing format | Multi pack |
| Pressure connection notes | EXT. G1/4 INT |
| Pressure connection size | 1/2 |
| Pressure connection standard | EN 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male/Female |
| Pressure range [bar] [Max] | 2.5 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 36.25 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 6010d1e2-f473-4af2-afdd-bb494bdd0100 |
| SCIP dossier product name | EMP |
| Specification key | EMP 2-1411-F6CD24-2 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 12 V |
| Type | EMP 2 |
| UL evaluated | Yes |
| Volume | 2.522 Liter |
