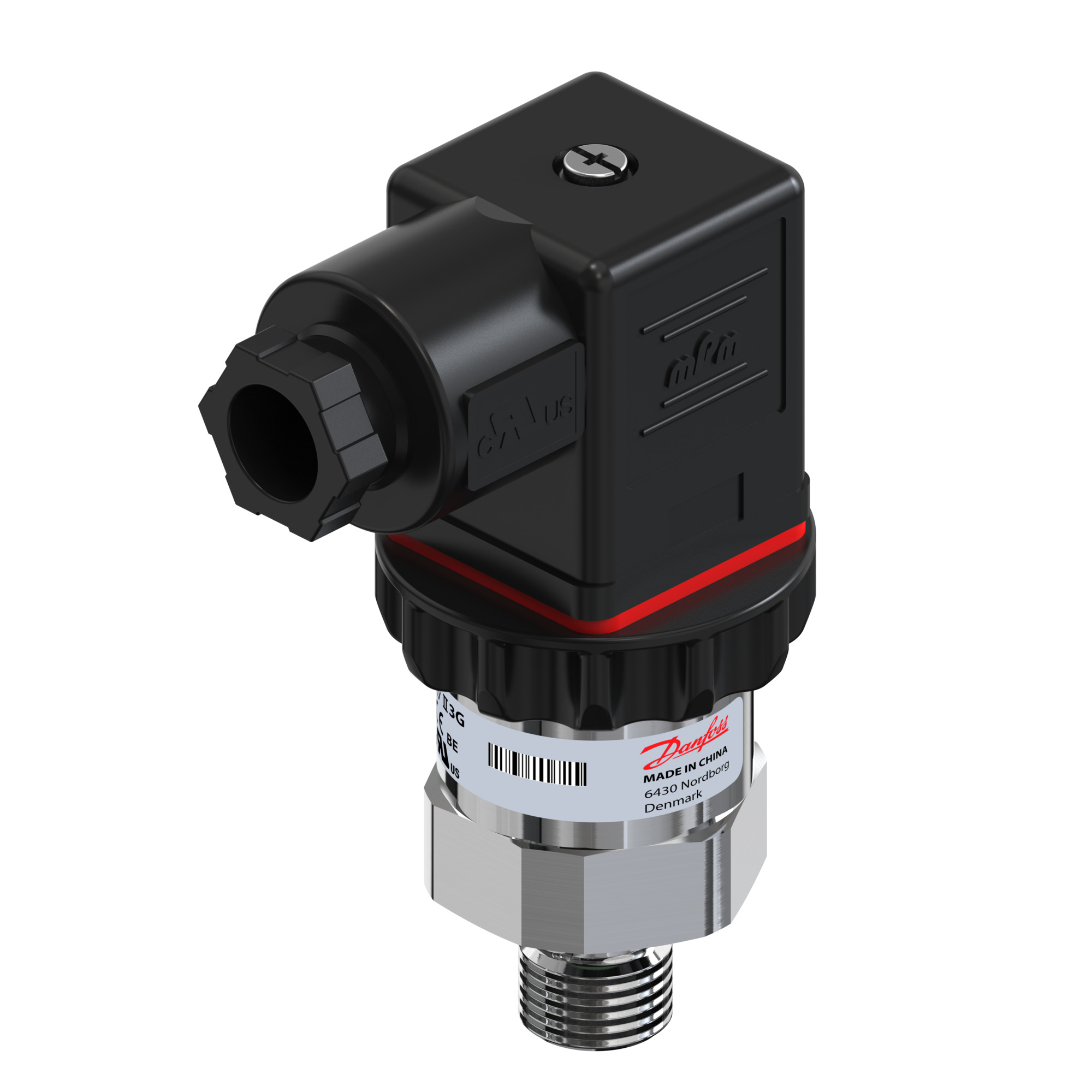

Danfoss Pressure transmitter, DST P40I, 0 bar - 10 bar, 0 psi - 145 psi
Danfoss 078G5002 - DST P40I - Electrical connection: Angular connector; Type: DST P40I; Gross weight: 0.112 Kilogram.
The 078G5002 from Danfoss is listed under DST P40I in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Angular connector and Type: DST P40I.
The specification set recorded for this part number covers Gross weight: 0.112 Kilogram; Net weight: 0.103 Kilogram; Volume: 0.251 Liter; EAN: 5702428525992; Product group: Sensors; Product Name Description: Pressure transmitter; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack; Quantity per packing format: 20 pc; REACH Candidate List substances: Lead (CAS no. 7439-92-1). The complete technical table is shown in the Specifications tab on this page.
| - common | Pin 2 |
|---|---|
| + supply | Pin 1 |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Approval | C UL US UL RecognizedCE |
| Burst pressure [bar] | 20 bar |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Contains batteries | No |
| EAN | 5702428525992 |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Gross weight | 0.112 Kilogram |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -15 °C |
| Net weight | 0.103 Kilogram |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 15 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 1179-2 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 10 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 145 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 6b078679-471a-4330-8fd4-d63473b641b0 |
| SCIP dossier product name | Sensor DST P40I + M |
| Specification key | DST P40I-2011-A1GB04-1 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Type | DST P40I |
| UL evaluated | Yes |
| Volume | 0.251 Liter |
