Danfoss Pressure transmitter, MBS 1600, 0 bar - 6 bar, 0 psi - 87 psi
Danfoss 063G2831 - MBS 1600 / MBS 1650 - Electrical connection: M12 x 1; Type: MBS 1600; Gross weight: 0.062 Kilogram.
This listing covers the Danfoss 063G2831, a part number in the MBS 1600 / MBS 1650 category. The manufacturer's published data for this part number specifies Electrical connection: M12 x 1 and Type: MBS 1600.
Key manufacturer data on file for this item includes Gross weight: 0.062 Kilogram; Net weight: 0.05 Kilogram; Volume: 0.098 Liter; EAN: 5714279840308; Product group: Sensors; Product Name Description: Pressure transmitter; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 48 pc; REACH Candidate List substances: No. The complete technical table is shown in the Specifications tab on this page.
| - common | Pin 4 |
|---|---|
| + supply | Pin 1 |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 212 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US UL RecognizedCE |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Comments | M12 CROSSCUT |
| Compensated temp. range [°C] [Max] | 125 °C |
| Compensated temp. range [°C] [Min] | -40 °C |
| Compensated temp. range [°F] [Max] | 257 °F |
| Compensated temp. range [°F] [Min] | -40 °F |
| Contains batteries | No |
| EAN | 5714279840308 |
| Electrical conn. comments | Vented through thread |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.062 Kilogram |

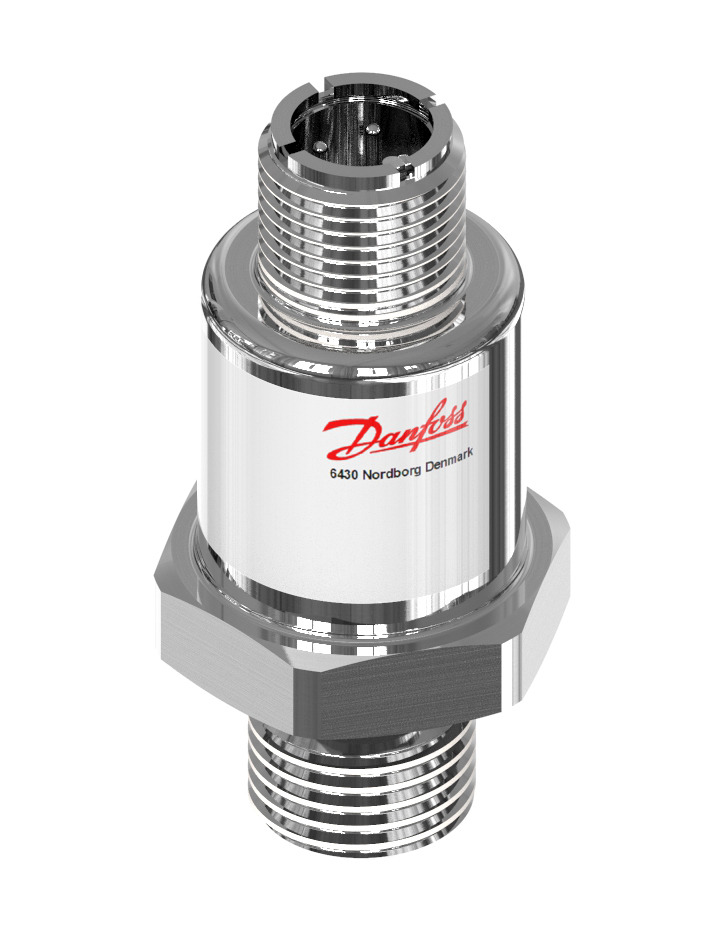

| Identical product | 063G5831 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Net weight | 0.05 Kilogram |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 14 bar |
| Overload pressure max. [psig] | 203 psig |
| Packing format | Multi pack |
| Pin surface material | Au |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 6 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 87 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 48 pc |
| REACH Candidate List substances | No |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1600-1811-K4GB04-2 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 8 V |
| Type | MBS 1600 |
| UL evaluated | Yes |
| Volume | 0.098 Liter |
