Danfoss Pressure transmitter, MBS 1350, 0 bar - 40 bar, 0 psi - 580 psi
Danfoss 063G2395 - MBS 1300 / MBS 1350 - Electrical connection: Deutsch; Type: MBS 1350; Gross weight: 0.064 Kilogram.
This listing covers the Danfoss 063G2395, a part number in the MBS 1300 / MBS 1350 category. The manufacturer's published data for this part number specifies Electrical connection: Deutsch and Type: MBS 1350.
Key manufacturer data on file for this item includes Gross weight: 0.064 Kilogram; Net weight: 0.053 Kilogram; Volume: 0.086 Liter; EAN: 5714279906318; Product group: Sensors; Product Name Description: Pressure transmitter; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 48 pc; REACH Candidate List substances: No. See the Specifications tab on this page for the full technical table.
| - common | Pin 1 |
|---|---|
| + output | Pin 4 |
| + supply | Pin 2 |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 257 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US UL RecognizedCE |
| Burst pressure [bar] | 800 bar |
| Burst pressure [psig] | 11600 psig |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 125 °C |
| Compensated temp. range [°C] [Min] | -40 °C |
| Compensated temp. range [°F] [Max] | 257 °F |
| Compensated temp. range [°F] [Min] | -40 °F |
| Contains batteries | No |
| EAN | 5714279906318 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | Deutsch |
| Electrical connection size | 4 pin |
| Electrical connection standard | DT04 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.064 Kilogram |
| In scope of WEEE | Yes |
| Medium temperature range [°C] [Max] | 125 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 257 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Net weight | 0.053 Kilogram |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 120 bar |
| Overload pressure max. [psig] | 1740 psig |
| Packing format | Multi pack |
| Pin surface material | Au |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 40 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 580 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 48 pc |
| Ratiometric [V] [Max] | 4.5 V |
| Ratiometric [V] [Min] | 0.5 V |
| REACH Candidate List substances | No |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1350-2616-C3GB04-°C-40-125 |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| Type | MBS 1350 |
| UL evaluated | Yes |
| Volume | 0.086 Liter |
Frequently Asked Questions
How do I get pricing for 063G2395?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 063G2395?
063G2395 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 063G2395?
Key specifications include - common: Pin 1; + output: Pin 4; + supply: Pin 2; Accuracy, typical +/- FS [%]: 0.5 %. The full specification table on this page lists every published attribute for this part.
How quickly can 063G2395 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

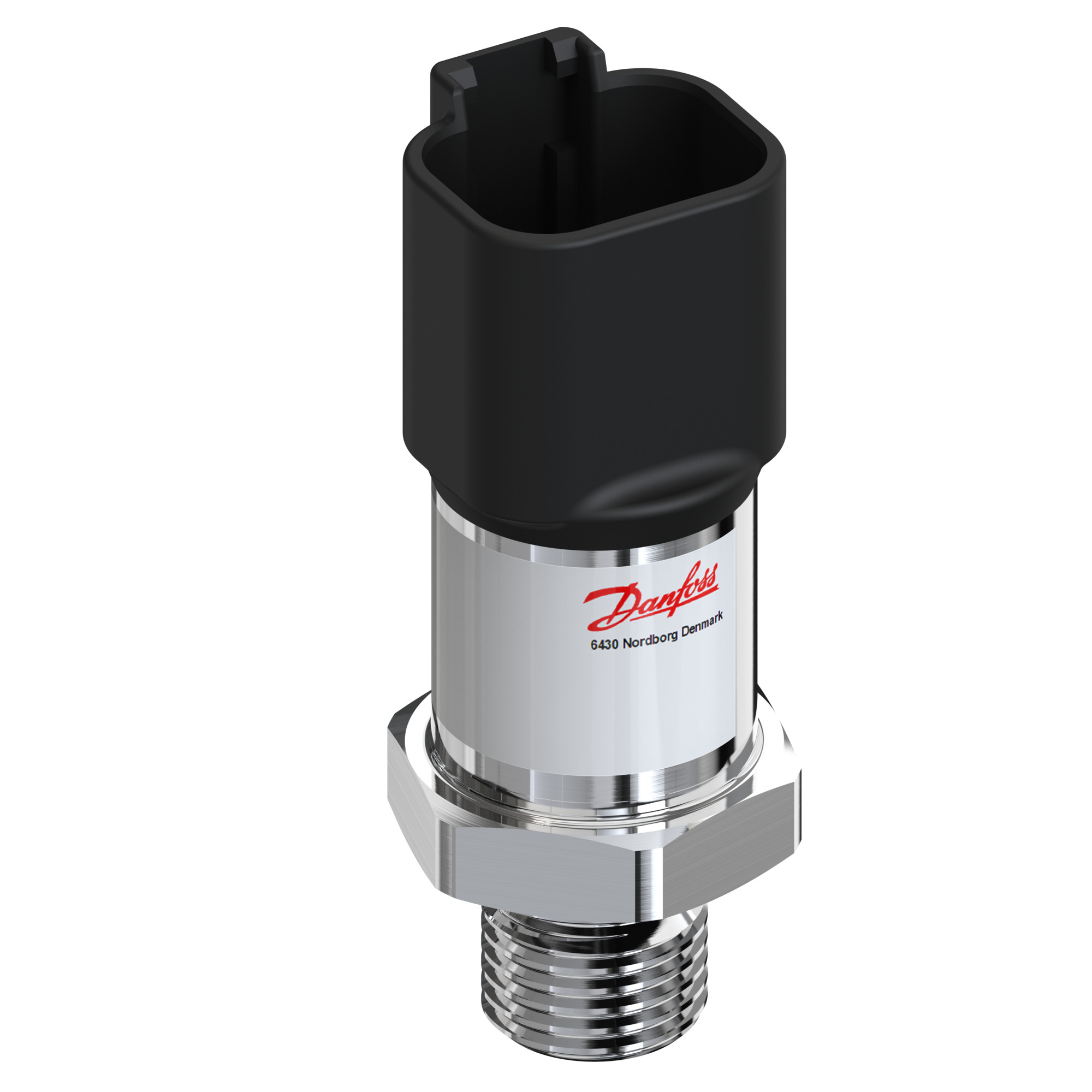

Danfoss Danfoss Pressure transmitter, MBS 1350, 0 bar - 250…

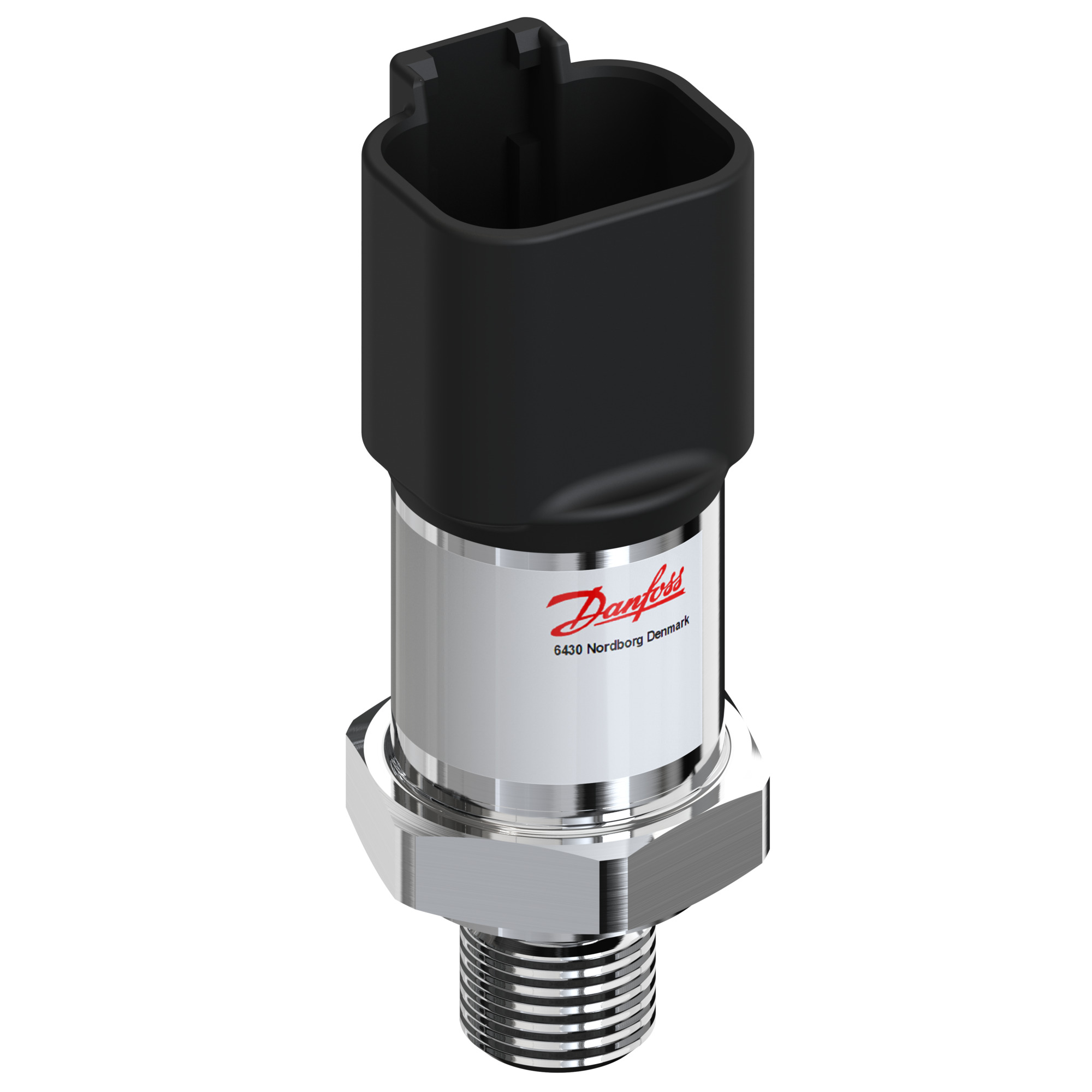

Danfoss Danfoss Pressure transmitter, MBS 1350, 0 bar - 400…

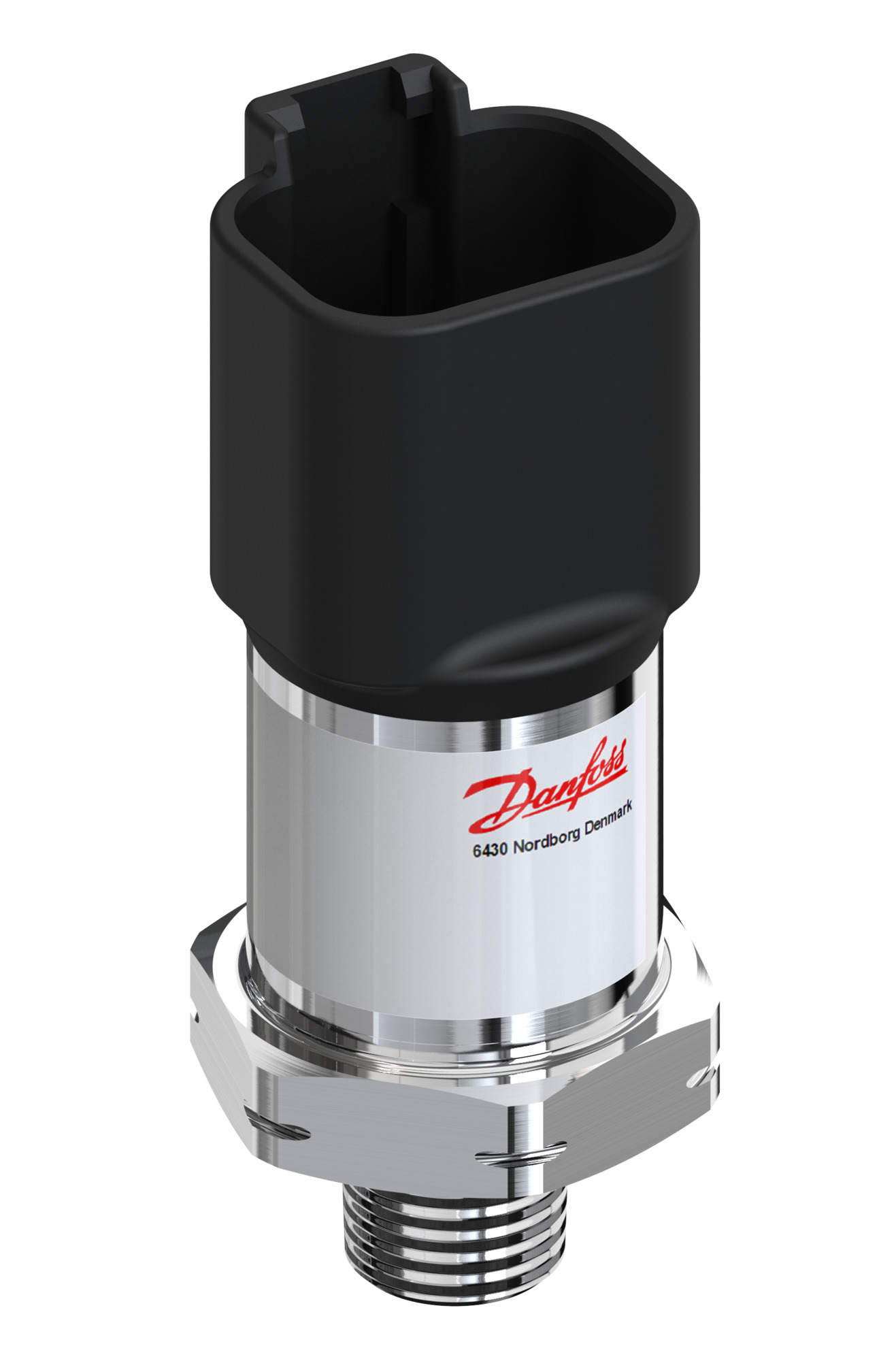

Danfoss Danfoss Pressure transmitter, MBS 1300, 0 bar - 6.8…
