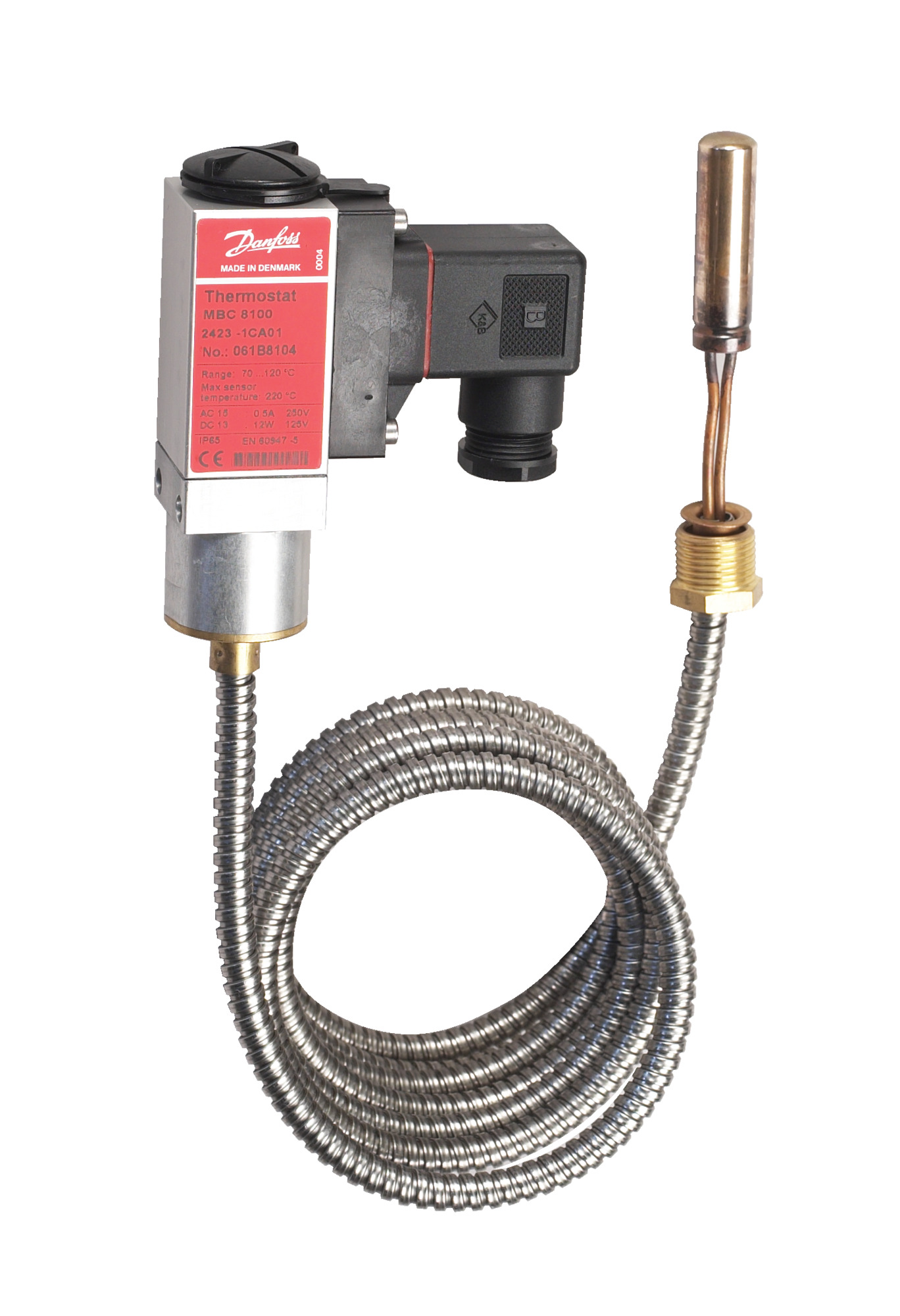

Danfoss Thermostat, MBC 8100
| \\Armoring\\ | Yes |
|---|---|
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABSBVCCCCCSCEDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSK |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| CE evaluated | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 VDC13=12 W, 125 V |
| Contains batteries | No |
| Differential (FS) [K] | 5 K |
| Differential type | Fixed (max. value) |
| EAN | 5702423213467 |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Equipment | Armored cap. tube |
| EU RoHS compliance | Out of scope |
| Gross weight | 0.754 Kilogram |
| Max. sensor temperature [°C] | 220 °C |
| Max. sensor temperature [°F] | 428 °F |
| Net weight | 0.384 Kilogram |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reset function | Auto |
| SCIP dossier no. | 18ff26a2-cbcf-44c1-8f28-74e482b38eed |
| SCIP dossier product name | MBC 8100 8000 Temperature Switch |
| Sensor pocket length min. [in] | 2 9/16 in |
| Sensor pocket length min. [mm] | 65 mm |
| Sensor size (Ø x L) [in] | 1/2 x 2 in |
| Sensor size (Ø x L) [mm] | 13 x 50 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Specification key | 2431-1A02000 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | 70 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | 158 °F |
| Type | MBC 8100 |
| Volume | 3.48 Liter |
Frequently Asked Questions
How do I get pricing for 061B810466?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 061B810466?
061B810466 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 061B810466?
Key specifications include \\Armoring\\: Yes; Ambient temperature range [°C] [max]: 70 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 158 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 061B810466 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
